产品功能
即使以高速操作，缝制质量始终如一
具有高速缝制力，可以灵活应对各种面料，从而提高生产效率。
切刀非常锋利，可以剪切任何类型的面料
切刀能够剪切任何厚度或韧性的面料，包括厚料、弹性面料和涂层面料。

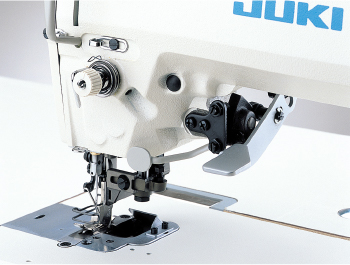

单触式多功能刀杆提高了操作的舒适度
刀杆经喷涂能防生锈，因此不必担心面料沾染锈渍。

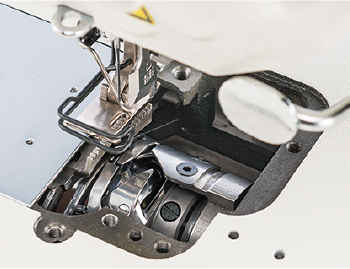

可靠性高的切线机构
切线装置可用于剪切各种不同厚度的缝线，拓宽了适用缝线的粗细范围。切线装置可以轻松剪切粗线。

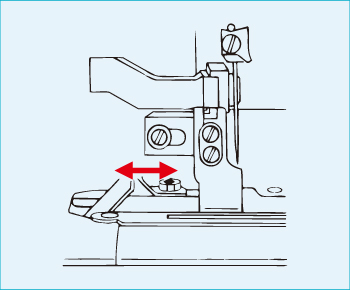

调节切布刀的位置
切布刀经专门设计，可从机针中心向操作人员移动多达5.5mm的距离。

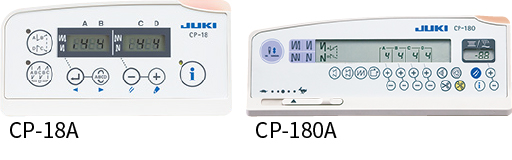

可根据工序选择操作面板（CP-18A、CP-180A）
两种不同的操作面板CP-18A和 CP-180A适用于DLM-5400N-7和 DMN-5420N-7。两个操作面板均具有生产支持功能。

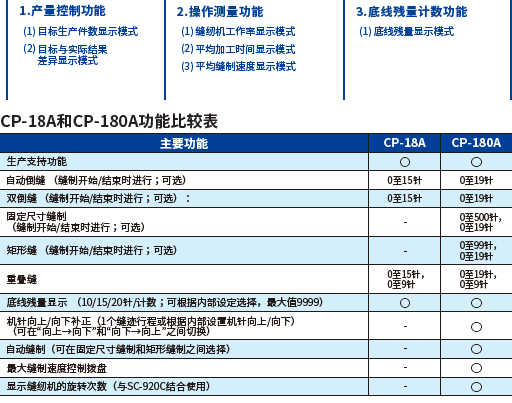

生产支持功能实际上由三种不同的功能组成（六种不同模式）
规格
| 产品型号 | DLM-5400N-7 |
|---|---|
| 最大缝制速度 | 4,500sti/min* |
| 送布系统 | 下送布 |
| 最大针距长度 | 4mm（正常/倒缝） |
| 针杆行程 | 30.7mm |
| 压脚提升量 | 手动：5.5mm，膝动：10mm |
| 机针（出厂时） | DB×1（#14）#9~#18，适用于JE：134 (Nm90) |
| 旋梭 | 自动供油全回转旋梭 |
| 剪切面料的最大厚度 | 4mm |
| 供油方式 | 自动 |
| 供油 | JUKI新型1号Defrix Oil（等同于ISO VG7） |
| 自动倒缝功能 | 标准配置 |
| 电源要求 | 单相100~120V、200~240V，三相200~240V |
| 耗电量 | 650VA |
| 总重 | 83kg |
*“sti/min”代表“针/分钟”

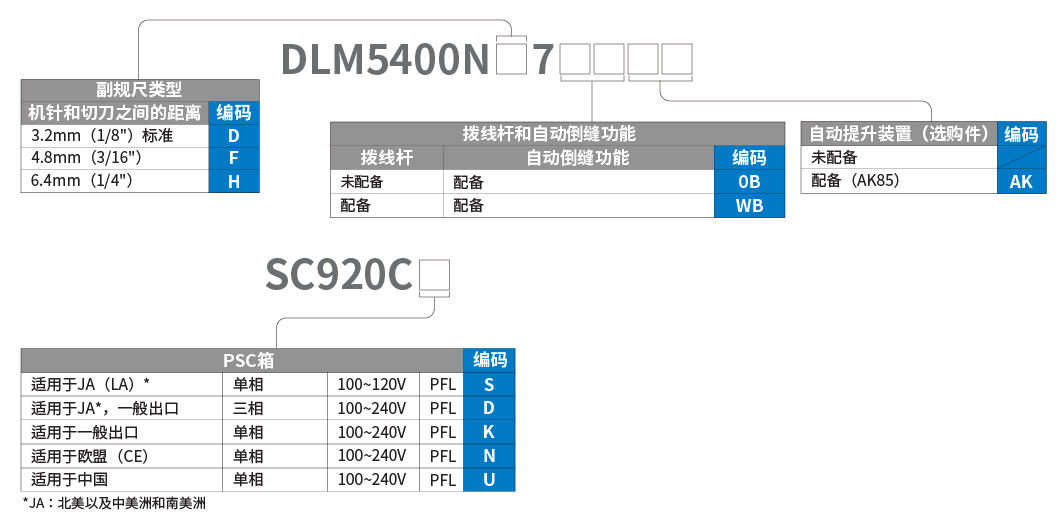

当您下订单时
针位
DLM-5400N-7
| Guage | THROAT PLATE | THROAT PLATE COVER | GUAGE | THROAT PLATE CHIP GUARD | CHIP GUARD | PRESSER FOOT ASM. | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Figure |  |
 |
 |
 |
 |
 |
||||||
| Sub guage width | P/N | Remarks | P/N | Remarks | P/N | Remarks | P/N | Remarks | P/N | Remarks | P/N | Remarks |
| 3.2mm_D type (Standard) | 11346004 | - | B1155310AD | - | B1190522Y00 | - | 11346905 | - | 11346400 | - | B1524530EB0 | - |
| 4.8ｍｍ_F type | 11346004 | - | B11155300AF | - | B1190522T00 | - | 11346905 | - | 11346400 | - | B1524530EB0 | - |
| 6.4ｍｍ_H type | 11346103 | - | B11155300AF | - | B1190522U00 | - | 11347101 | - | 11346509 | - | B1524530GB0 | - |
| Guage | FEED DOG | KNIFE | ||
|---|---|---|---|---|
| Figure |  |
 |
||
| Sub guage width | P/N | Remarks | P/N | Remarks |
| 3.2mm_D type (Standard) | B1613522N00A | - | B4121522000 | - |
| 4.8ｍｍ_F type | B1613522N00A | - | B4121522000 | - |
| 6.4ｍｍ_H type | B1613522W00A | - | B4121522000 | - |
DLM-5400N-7(Spare parts)
| Guage | THROAT PLATE | THROAT PLATE COVER | GUAGE | THROAT PLATE CHIP GUARD | CHIP GUARD | PRESSER FOOT ASM. | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Figure | |
|
|
|
|
|
||||||
| Sub guage width | P/N | Remarks | P/N | Remarks | P/N | Remarks | P/N | Remarks | P/N | Remarks | P/N | Remarks |
| 2.4mm_C | 11346004 | Without wiper | B11155310AD | Without wiper | B1190522X00 | Without wiper | 11346905 | Without wiper | 11346400 | Without wiper | B1524530DB0 | Without wiper |
| 2.0mm_CA | 11346004 | Without wiper | B11155310AD | Without wiper | B1190522Y0A | Without wiper | 11346905 | Without wiper | 11346400 | Without wiper | B1524530CB0 | Without wiper |
| 2.4mm_CB | 11346004 | - | B11155310AD | - | B1190522X0B | - | 11346905 | - | 11346400 | - | B1524530DB0 | - |
| 4.0mm_E | 11346004 | - | B11155310AD | - | B1190522S00 | - | 11346905 | - | 11346400 | - | B1524530DB0 | - |
| 4.0mm_EA | 11346004 | - | B11155310AD | - | 11362753 | - | 11346905 | - | 11346400 | - | B1524530EB0 | - |
| 4.8mm_FA | 11346004 | - | B11155300AF | - | B1190522T0A | - | 11346905 | - | 11346400 | - | B1524530EB0 | - |
| 4.8mm_FB | 11346004 | - | B11155300AF | - | B1190522Y0C | - | 11346905 | - | 11346400 | - | B1524530EB0 | - |
| 5.3mm_G | 11346004 | - | B11155300AF | - | B1190522Y0F | - | 11347101 | - | 11346400 | - | B1524530GB0 | - |
| 6.4mm_HA | 11346301 | - | B11155300AF | - | B1190522U0AA | - | 11347101 | - | 11346509 | - | B1524530GB0 | - |
| 7.9mm_K | 11346004 | - | B11155300AF | - | B1190522Y0B | - | 11347101 | - | 11346509 | - | B1524530GB0 | - |
| 9.5mm_M | 11346004 | - | B11155300AM | - | B1190522V00 | - | 11347309 | - | 11346509 | - | B1524530GB0 | - |
| 9.5mm_MA | 11346004 | - | B11155300AM | - | B1190522V0A | - | 11347309 | - | 11346509 | - | B1524530GB0 | - |
| 11.1mm_P | 11346004 | * | B11155300AM | * | B1190522Y0M | * | 11347309 | * | 11346608 | * | B1524530GB0 | * |
| Guage | FEED DOG | KNIFE | ||
|---|---|---|---|---|
| Figure |  |
 |
||
| Sub guage width | P/N | Remarks | P/N | Remarks |
| 2.4mm_C | B1613522N00A | Without wiper | B4121522000 | Without wiper |
| 2.0mm_CA | B1613522N00A | Without wiper | B4145530C00 | Without wiper |
| 2.4mm_CB | B1613522N0C | - | B4121522000 | - |
| 4.0mm_E | B1613522N00A | - | B4121522000 | - |
| 4.0mm_EA | B1613522N00A | - | B4121522000 | - |
| 4.8mm_FA | B1613522N00A | - | B4121522000 | - |
| 4.8mm_FB | B1613522N00A | - | B4121522000 | - |
| 5.3mm_G | B1613522N00A | - | B4121522000 | - |
| 6.4mm_HA | B1613522A0AA | - | B4121522000 | - |
| 7.9mm_K | B1613522W00A | - | B4121522000 | - |
| 9.5mm_M | B1613522W00A | - | B4121522000 | - |
| 9.5mm_MA | B1613522B00 | - | B4121522000 | - |
| 11.1mm_P | B1613522W00A | * | B4121522000 | * |
*You need B411853000A and B411953000A.
DLM-5200N
| Guage | THROAT PLATE | THROAT PLATE COVER | GUAGE | THROAT PLATE CHIP GUARD | CHIP GUARD | PRESSER FOOT ASM. | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Figure | |
|
 |
|
|
 |
||||||
| Sub guage width | P/N | Remarks | P/N | Remarks | P/N | Remarks | P/N | Remarks | P/N | Remarks | P/N | Remarks |
| 2.4ｍｍ_C type | 11346004 | - | B1155300AD | - | B1190522X00 | - | 11346905 | - | 11346400 | - | B1524522NB0A | - |
| 4.8ｍｍ_F type | 11346004 | - | B11155300AF | - | B1190522T00 | - | 11346905 | - | 11346400 | - | B1524522NB0A | - |
| 6.4ｍｍ_H type | 11346004 | - | B11155300AF | - | B1190522U00 | - | 11347101 | - | 11346509 | - | B15240120BA | - |
| Guage | FEED DOG | KNIFE | ||
|---|---|---|---|---|
| Figure | |
|
||
| Sub guage width | P/N | Remarks | P/N | Remarks |
| 2.4ｍｍ_C type | B1613522N00A | - | B4121522000 | - |
| 4.8ｍｍ_F type | B1613522N00A | - | B4121522000 | - |
| 6.4ｍｍ_H type | B1613522W00A | - | B4121522000 | - |
DLM-5200N (Spare parts)
| Guage | THROAT PLATE | THROAT PLATE COVER | GUAGE | THROAT PLATE CHIP GUARD | CHIP GUARD | PRESSER FOOT ASM. | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Figure | |
|
|
|
|
|
||||||
| Sub guage width | P/N | Remarks | P/N | Remarks | P/N | Remarks | P/N | Remarks | P/N | Remarks | P/N | Remarks |
| 2.0mm_CA | 11346004 | - | B11155300AD | - | B1190522Y0A | - | 11346905 | - | 11346400 | - | B1524522NB0A | - |
| 3.2mm_D | 11346004 | - | B11155300AD | - | B1190522S00 | - | 11346905 | - | 11346400 | - | B1524522NB0A | - |
| 4.0mm_E | 11346004 | - | B11155300AF | - | B1190522Y00 | - | 11346905 | - | 11346400 | - | B1524522NB0A | - |
| 6.4mm_HA | 11346004 | - | B11155300AF | - | B1190522U0A | - | 11347101 | - | 11346509 | - | B15240120BA | - |
| 7.9mm_K | 11346103 | - | B11155300AM | - | B1190522Y0B | - | 11347101 | - | 11346509 | - | B15240120BA | - |
| 9.5mm_M | 11346103 | - | B11155300AM | - | B1190522V00 | - | 11347309 | - | 11346509 | - | B15240120BA | - |
| Guage | FEED DOG | KNIFE | ||
|---|---|---|---|---|
| Figure | |
|
||
| Sub guage width | P/N | Remarks | P/N | Remarks |
| 2.0mm_CA | B1613522N00A | - | B4121522000 | - |
| 3.2mm_D | B1613522N00A | - | B4121522000 | - |
| 4.0mm_E | B1613522N00A | - | B4121522000 | - |
| 6.4mm_HA | B1613522A0AA | - | B4121522000 | - |
| 7.9mm_K | B1613522W00A | - | B4121522000 | - |
| 9.5mm_M | B1613522W00A | - | B4121522000 | - |
