产品功能
初学者也能顺利进行缩缝操作
数控缩缝机构,即使初学者也能熟练进行缩缝操作,缝制出高质产品。

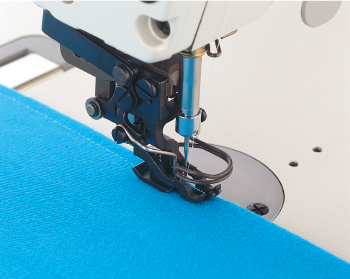

缩缝时,操作人员可以通过示教功能进入程序,按照熟练操作员所演示的缩缝操作程序进行操作。低张力缝制带来高品质
通过对缝制机构的深入研究,DLU-5494N-7能够灵活应对各种面料,以更高的精度和质量进行低张力缝制。缝制成品美观,品质稳定,避免起皱、送布不均匀等不良问题。

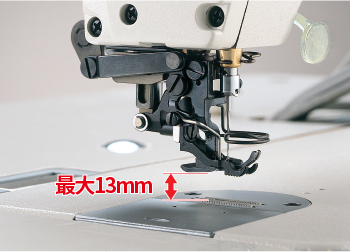

压脚提升量更高,操作性更优越
压脚提升量增至13mm。可通过操作面板轻松调节上送布量。采用内置上送布机构,简化压脚周围区域,便于操作人员放置和处理面料。操作人员可根据需要操作机器。

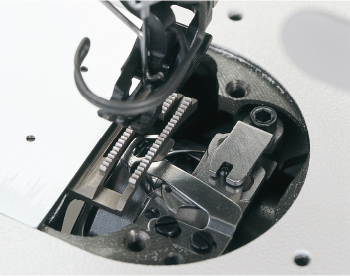

切线装置可无误地剪切从高支数到低支数的各种线
通过运动切刀和固定切刀,切线机构可以稳定切割各种线。从高支数到低支数的各种线均可快速无误地剪切。

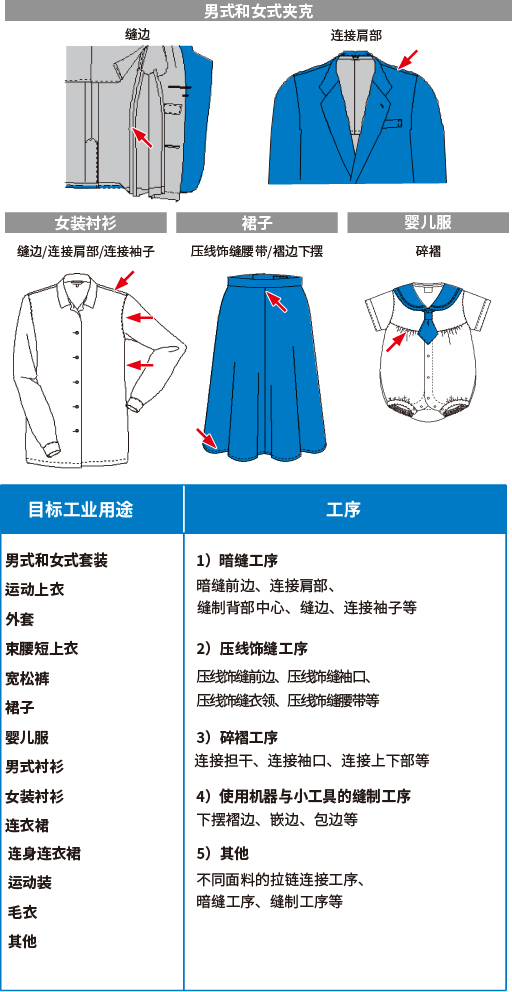

目标工业用途和工序
该机器有着更广泛的应用领域,如男装、女装、夹克和婴儿服的缝制,设备效率高。
功能和性能显著提升
- 缩缝程序的数量已增加至16种不同的图案。此外,除了主机存储器中存储的图案外,USB存储器最多可以存储999种不同的图案。
- 缩缝工序的步骤已增加为最多八个。每个步骤可以预设缝迹和缩缝量,工序步骤数也可以添加或删除。

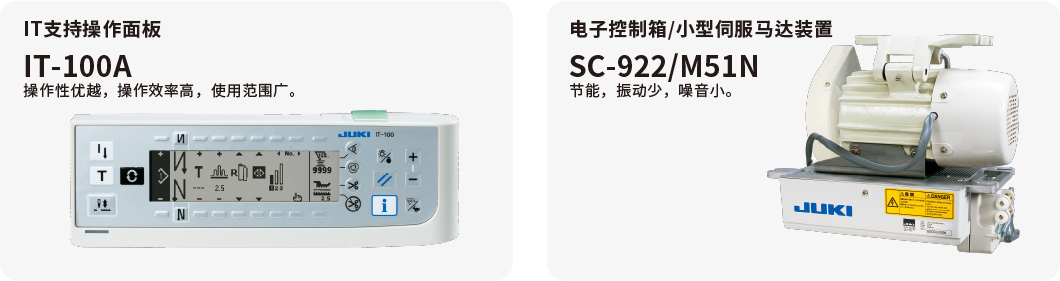

- IT-100A面板上显示工序步骤和缩缝量,操作性得以提升。
- 平滑功能可以减少工序切换时发生急速变化,从而实现更高的缝制质量。
- 一个袖子的数据编程完成后,另一袖子的数据将通过对称功能进行自动编程。
- 具有交替缝制功能,即缝制完一个袖子后进行切线时,(根据对称数据)自动开始缝制另一个袖子。
使用示教功能输入程序示例
示教功能:该功能可使用实际缝迹数设置缝迹数。
数据编程简单快捷。
规格
产品型号 | DLU-5494N-7/ IT-100A | ||
---|---|---|---|
最大缝制速度 | 4,000sti/min (正常3,500sti/min)* | ||
最大针距长度 | 5mm (正常送布), 3mm (倒缝) | ||
最高上送布量 | 8mm (上送布量因规尺类型而异) | ||
针杆行程 | 30.7mm | ||
压脚提升量 | 手动:5.5mm,膝动:13mm(最大) | ||
机针 (出厂时) |
DB×1(#14),适用于JE:134 (Nm75) | ||
旋梭 | 自动供油全回转旋梭 | ||
供油方式 | 自动 | ||
供油 | JUKI新型1号Defrix Oil(等同于ISO VG7) | ||
自动倒缝功能 | 标准配置 | ||
电源要求 | 单相100~120V、200~240V,三相200~240V | ||
耗电量 | 额定功率400VA | ||
总重 | 83kg |
*“sti/min”代表“针/分钟”。
编程设备性能
功能/性能 | SC-922 / IT-100A | |||
---|---|---|---|---|
输入模式 | 使用手册 | 可以 | ||
示教 | 可以 | |||
最大程序数 | 主机 | 16种图案 | ||
USB存储器 | 最多999种图案 | |||
步骤数 | 最多8个步骤 | |||
添加和删除步骤 | 可以 | |||
存储在存储器中的详细步骤数据 | 缩缝量 | 0~8.0mm(增量为0.1mm) | ||
针数 | 1~500缝迹(“0”表示缝迹数为无限。) | |||
缝迹形状的屏幕指示 | 可以 | |||
平滑功能 | 两个工序步骤中每个步骤的可能性/有效性。 | |||
设置一个缝迹的缩缝量 | 可能/0~8.0mm(增量为0.1mm) | |||
设置第一个缝迹的缩缝量与预设缩缝量的比值 | 可能/面板指示值:1~9 (10%~50%) | |||
对称功能(数据反转) | 可以 | |||
交替缝制 | 可以 |

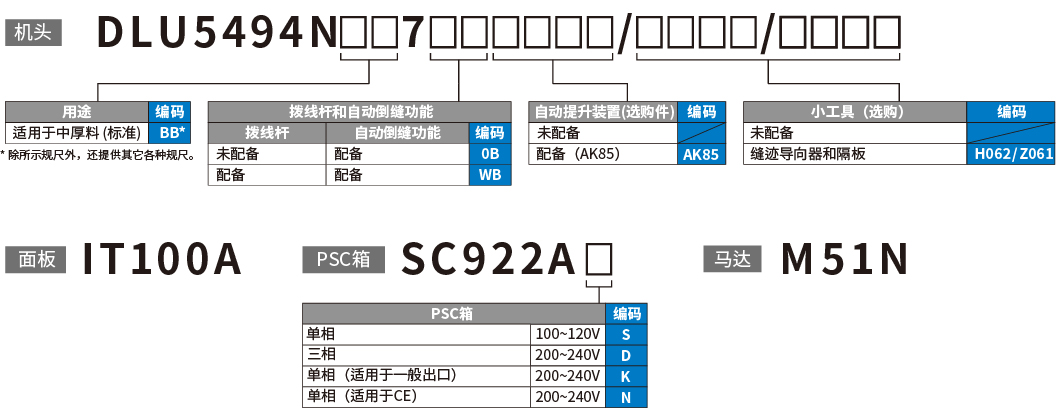

当您下订单时
针位
DLU-5494N-7
For frilling (3 folds)
Guage type | Guage | THROAT PLATE | FEED DOG | PRESSER FOOT | UPPER FEED PRESSER | Applications / features |
---|---|---|---|---|---|---|
Figure | ||||||
Specification | P/N | P/N | P/N | P/N | ||
A | Light weight | B1109490E00 | B1613490E00 | B1524491AA0 (B1524490AA0) |
B3026490A00 | For attaching frills to aprons and pillows; With a tape guide attached to the presser foot, taking three holds. The tape guide is sold separately. |
For gathering
Guage type | Guage | THROAT PLATE | FEED DOG | PRESSER FOOT | UPPER FEED PRESSER | Applications / features |
---|---|---|---|---|---|---|
Figure | ||||||
Specification | P/N | P/N | P/N | P/N | ||
BA | Light weight | B1109450A0B | B1613450A00 | B1524491BA0 (B1524490BA0) |
B3026490B00 | For gathering stitch on female dress, blouse yoke, cuffs, etc. |
BB | Medium weight | B1109450B0B | Standard type For preventing uneven material feed, and for shirring on medium-weight materials. |
|||
BC | Heavy weight | B1109450C0B | For preventing uneven material feed, and for shirring on heavy-weight coat materials, etc. | |||
BD | B1109450B0B (B1109450A0B) (B1109450C0B) |
B1613450A00 | B3026490B0D | For preventing material scratch on quilted materials, nylon, taffeta, lining, female light-materials, etc. The upper teeth are made of urethane rubber. |
||
BE | Medium weight | B1109450B0B | B1613450A00 | B1524491BAE | - | A presser foot to use for regular lockstitch |
BG | Light weight | B1109490E00 | B1613490E00 | B1524491EA0 (B1524490EA0) |
B3026490B0G | For preventing material scratch on quilted materials, nylon, taffeta, lining, female light-materials, etc. The upper teeth are made of urethane rubber. |
BJ | Light weight | B1109450G0B | B1613450G00 | B1524491BAJ (B1524490BAJ) |
B3026490B0J | For gathering stitch on female dress, blouse yoke, cuffs, etc. For a narrow width (1-2 mm) gathering stitch for attaching blouse lace |
BK | Light weight | B1109490E00 | B3026490B0K | B1524491BA0 (B1524490BA0) |
B3026490B0K | For preventing material scratch on quilted materials, nylon, taffeta, lining, female light-materials, etc. Gathering stitch is allowed. |
BM | Medium weight | B1109450B0B (B1109450A0B) (B1109450C0B) |
B1613450A00 | B1524491BA0 (B1524490BA0) |
B3026490B0M | B3026490B00 (upper feed presser) with a coarse upper feed dog teeth (flat P=1.5mm); with enhanced feeding. |
BP | Medium weight | B1524491BAP (B1524490BAP) |
B3026490B00 | For shirt stitch (5mm right); While the right side of the BB type presser foot is widened, one side of the upper feed presser foot is cut as it interferes. | ||
BT | Medium weight | B1524491BAT (B1524490BAT) |
B3026490B0T | For hemming on shirts (1mm right); The stitch guide plate is fixed to the presser. | ||
BU | Heavy weight | B1109490B0U | B1613490B0U | B1524491BA0 (B1524490BA0) |
B3026490B00 | For preventing the throat plate from being damaged when stitching corduroy materials, etc. The throat plate thickness of B1109450B0B is thickened (2 -> 3.2mm). |
BV | Light weight/ Medium weight |
B1109450B0B (B1109450A0B) (B1109450C0B) |
B1613490B0V | B1524491BA0 (B1524490BA0) |
B3026490B0D | Effective for a narrow width feed dog gathering and puckering with the operator-side teeth unprocessed. Urethane rubber upper feed dog |
BW | Light weight | B1109450B0B (B1109450A0B) (B1109450C0B) |
B1613450A00 | B1524491BAW (B1524490BAW) |
B3026490B0W | Suitable for tape gathering |
BX | Medium weight | B1109450B0B | B1613450A00 | B1524491BA0 (B1524490BA0) |
B3026490B0X | B3026490B00 (upper feed presser foot) with an enhanced feeding by enlarged contact surface |
BY | Light weight | B1109450G0B | B1613450G00 | B1524491BAJ (B1524490BAJ) |
B3026490B0Y | B3026490B0J (upper feeding presser) with three-column teeth, preventing the cloth from being released. |
For stitching
Guage type | Guage | THROAT PLATE | FEED DOG | PRESSER FOOT | UPPER FEED PRESSER | Applications / features | |
---|---|---|---|---|---|---|---|
Figure | |||||||
Specification | P/N | P/N | P/N | Figure | P/N | ||
C | Light weight/ Medium weight | B1109490D00 | B1613490D00 | B1524491CA0 (B1524490CA0) |
B3026490C00 | For various hemming seam for shirts, blouses, dresses, coats, jackets, etc. (stitching width 1mm with a right stepped presser) | |
CA | Light weight/ Medium weight | B1109490D00 | B1613490D00 | B1524491CAA (B1524490CAA) |
B3026490C00 | For various hemming seam for shirts, blouses, dresses, coats, jackets, etc. (stitching width 2mm with a right stepped presser) | |
CB | Light weight/ Medium weight | B1109490D00 | B1613490D00 | B1524491CAB (B152490CAB) |
B3026490C00 | For various hemming seam for shirts, blouses, dresses, coats, jackets, etc. (stitching width 3mm with a right stepped presser) | |
CC | Light weight/ Medium weight | B1109490D00 | B1613490D00 | B1524491CAC (B1524490CAC) |
B3026490C00 | For various hemming seam for shirts, blouses, dresses, coats, jackets, etc. (stitching width 5mm with a right stepped presser) | |
CD | Light weight/ Medium weight | B1109490D00 | B1613490D00 | B1524491CAD (B1524490CAD) |
B3026490C00 | For various hemming seam for shirts, blouses, dresses, coats, jackets, etc. (stitching width 1mm with a left stepped presser) | |
CE | Heavy weight | B1109490C0E | B1613490C0E | B1524491DA0 | B3026490D00 | For various runstitch of heavy-weight materials (with a thicker throat plate). | |
CF | Light weight/ Medium weight | B1109490D00 | B1613490D00 | B1524491CAF | B3026490D0K | For various hemming seam for shirts, blouses, dresses, coats, jackets, etc. (stitching width 0.8mm with a left stepped presser) | |
CG | Medium weight | B1524491CAG (B1524490CAG) |
B3026490D00 | B1524490DA0 (presser foot) with higher R at the front and the back, preventing the cloth from jamming. | |||
CH | Light weight/ Medium weight | B1524491CAH (B1524490CAH) |
B3026490D00 | A type with stitch guides on both sides (stitching width 1.5mm for both right and left) | |||
CJ | Light weight/ Medium weight | B1524491CAJ (B1524490CAJ) |
B3026490D00 | B1524491DA0 (presser foot) with a modified needle location part (groove -> round hole). The bottom of the (lower) press can have piping grooves processed, enabling better flexible maneuvering performance to allow the piping jig to come closer to the high needle drop point. | |||
CK | Light weight/ Medium weight | B1524491CAK (B1524490CAK) |
B3026490D00 | For various stitching for shirts, blouses, dresses, jackets, etc. (stitching width 7mm with a left stepped presser) | |||
CL | Medium weight | B1524491CAL (B1524490CAL) |
B3026490C0L | For concealed seam under stitching on the female skirt waist belt A type that drops from the surface side with the stitch guide plate (stepped presser) |
|||
CM | Light weight/ Medium weight | B15124491CAM (B1524490CAM) |
B3026490D00 | For various stitching for shirts, blouses, dresses, jackets, etc. (stitching width 9mm with a right presser) | |||
CN | Light weight/ Medium weight | B1524491CAN (B1524490CAN) |
B3026490D00 | For various stitching for shirts, blouses, dresses, jackets, etc. (stitching width 6mm with a left stepped presser) | |||
CQ | Light weight/ Medium weight | B1524491CAQ (B1524490CAQ) |
B3026490C00 | A type with an enlarged contact surface of the upper feed (stitch width 1mm with a left stepped presser) | |||
CR | Light weight | B1524491DAD (B1524490DAD) |
B3026490C0R | B3026490D0D (upper feed presser), for preventing cloth scratch on quilted materials, nylon, taffeta, lining, female light-materials, with a urethane rubber heat-bonded on it. | |||
CT | Medium weight | B1524491CAT (B1524490CAT) |
B3026490C0T | A type that feeds the Cl-type narrow width type belt side with the upper feeding presser (stepped presser) | |||
CU | Light weight | B1524491DA0 (B1524490DA0) |
B3026490C0U | B3026490D00 (upper feed presser), for preventing cloth scratch on quilted materials, nylon, taffeta, lining, female light-materials, with a urethane rubber heat-bonded on it. | |||
CW | Light weight/ Medium weight | B1524491CAW (B1524490CAW) |
B3026490D00 | B1524491DA0 (presser foot) with stitch guide part (stitch width 4mm) | |||
CX | Light weight/ Medium weight | B15124491CAX (B1524490CAX) |
For various stitching for shirts, blouses, dresses, jackets, etc. (stitching width 6mm with a right presser) | ||||
CY | Light weight/ Medium weight | B1524491CAY (B1524490CAY) |
B3026490C00 | A type with flexible maneuvering performance (stitch width 1mm with a right stepped presser) | |||
CZ | Light weight/ Medium weight | B1524491CAZ (B1524490CAZ) |
B3026490C0Z | Left stepped presser for 9mm stitch |
For stitching
Guage type | Guage | THROAT PLATE | FEED DOG | PRESSER FOOT | UPPER FEED PRESSER | STITCH GUIDE SPRING | Applications / features | |
---|---|---|---|---|---|---|---|---|
Figure | ||||||||
Specification | P/N | P/N | P/N | Figure | P/N | P/N | ||
D | Light weight/ Medium weight | B1109490D00 | B1613490D00 | B1524491DA0 (B1524490DA0) |
B3026490D00 | - | For flexible maneuvering performance on stitching shirts and blouses, etc. | |
DA | Light weight/ Medium weight | B1524491DAA (B1524491DAA) |
For 2m/m B1527490D0A For 5m/m B1527490D0B Screw SS7060310SP |
For various stitching for skirts, trouser belt stitching, etc. (stitching width 2mm) | ||||
DB | Light weight/ Medium weight | B1524491DAB (B1524490DAB) |
For various stitching for skirts, trouser belt stitching, etc. (stitching width 5mm) | |||||
DC | Light weight/ Medium weight | B1524491DAC (B1524490DAC) |
B3026490D0C | - | For various stitching for shirts, blouses, dresses, etc. (stitching width 1mm with a right stepped presser) | |||
DD | Light weight/ Medium weight | B1524491DAD (B1524490DAD) |
B3026490D0D | - | For various stitching for hemming on shirts, blouses, etc. (stitching width 2mm with right stepped presser) | |||
DE | Light weight/ Medium weight | B1524491DAE (B1524490DAE) |
B3026490D00 | - | For various stitching for shirts, blouses, dresses, coats, jackets, etc. (stitching width 3mm with a right stepped presser) | |||
DF | Light weight/ Medium weight | B1524491DAF (B1524490DAF) |
- | For various stitching for shirts, blouses, coats, skirts, jackets, etc. (stitching width 4mm with a right stepped presser) | ||||
DG | Light weight/ Medium weight | B1524491DAG (B1524490DAG) |
- | For various stitching for shirts, blouses, coats, skirts, etc. (stitching width 5mm with a right stepped presser) | ||||
DJ | Light weight/ Medium weight | B1524491DAJ (B1524490DAJ) |
3m/m B1527490D0J 6m/m B1528490D0J Screw SS7060310SP |
For various stitching for skirts, trouser, etc. (3mm with a stitch guide plate spring) | ||||
DK | Light weight/ Medium weight | B1524491DAK (B1524490DAK) |
B3026490D0K | - | For hemming seam for shirts, blouses, dresses, coats, jackets, etc. (stitching width 1mm with a left stepped presser) | |||
DL | Light weight/ Medium weight | B1524491DAL (B1524490DAL) |
B3026490D00 | - | For various stitching for shirts, blouses, dresses, jackets, etc. (stitching width 7mm with a right presser) | |||
DM | Light weight/ Medium weight | B1524491DAM (B1524490DAM) |
- | For various stitching for shirts, blouses, dresses, jackets, etc. (stitching width 3mm with a left stepped presser) | ||||
DN | Light weight/ Medium weight | B1524491DAN (B1524490DAN) |
B3026490D0N | - | For hemming seam for shirts, blouses, dresses, coats, jackets, etc. (stitching width 2mm with a left stepped presser) | |||
DP | Light weight/ Medium weight | B1524491DAP (B1524490DAP) |
B3026490D00 | 1.5m/m B1528490D0P 4m/m B1527490D0P Screw SS7060310SP |
For hemming seam for shirts, blouses, dresses, coats, jackets, etc. (1.5mm with a stitch guide spring) | |||
DR | Light weight/ Medium weight | B1524491DAR (B1524490DAR) |
B3026490D0R | - | For piping stitching for dresses, blouses, one-piece dresses, coats, sport jackets, etc. | |||
DS | Light weight/ Medium weight | B1524491D0S (B1524490D0S) |
B3026490D00 | - | For hemming seam for shirts, blouses, dresses, coats, jackets, etc. (stitching width 2.5mm) | |||
DT | Light weight/ Medium weight | B1524491DAT (B1524490DAT) |
B3026490D0T | - | B3026490D00 (upper feeding presser) with a half width (stitch width 1mm with a right stepped presser) | |||
DV | Light weight/ Medium weight | B1524491DAV (B1524490DAV) |
B3026490D00 | 2m/m B1527490D0V 5m/m B1528490D0V Screw SS7060310SP |
A reversed DA type (2mm with a stitch guide spring) | |||
DW | Light weight/ Medium weight | B1524491DAW (B1524490DAW) |
B3026490D0W | - | For hemming seam for shirts, blouses, dresses, coats, jackets, etc. (stitching width 1.5mm with a left stepped presser) | |||
DX | Light weight | B1109490D0X | B1524491DA0 (B1524490DA0) |
B3026490D00 | - | Throat plate with a smaller needle hole for light-weight materials | ||
DZ | Light weight/ Medium weight | B1109490D00 | B1524491DAZ (B1524490DAZ) |
B3026490C00 | - | For stitching collared-shirts runstitch; B1524491BA0 (presser foot) with a longer length (26mm -> 33mm). |
For materials that are difficult to send
Guage type | Guage | THROAT PLATE | FEED DOG | PRESSER FOOT | UPPER FEED PRESSER | Applications / features | |
---|---|---|---|---|---|---|---|
Figure | |||||||
Specification | P/N | P/N | P/N | Figure | P/N | ||
E | Medium weight | B1109490E00 (B1109490E0D) |
B1613490E00 | B1524491EA0 (B1524490EA0) |
B3026490B00 | A type effective for elastic materials and brushing materials | |
EA | Light weight | B1109490E00 | B1613490E0A | B1613490E00 (feed dog), for preventing cloth scratch on quilted materials, nylon, taffeta, lining, female light-materials, with a urethane rubber heat-bonded on it | |||
ED | Light weight/ Medium weight |
B1109490E0D | B1613490E0D | A throat plate with a wider feed dog with unprocessed operator-side teeth and a smaller needle hole diameter. Effective for gathering and puckering | |||
EE | Medium weight | B1109490E0E | B1613490E0E | Improved version of E-type (cloth release prevention) Throat plate: four-ridged feed dog -> three-ridged feed dog Feed dog: four-ridged feed dog -> three-ridged diagonal feed dog |
For stitch sewing
Guage type | Guage | THROAT PLATE | FEED DOG | PRESSER FOOT | UPPER FEED PRESSER | STICH GUIDE | Applications / features | |
---|---|---|---|---|---|---|---|---|
Figure | ||||||||
Specification | P/N | P/N | P/N | Figure | P/N | P/N | ||
F | Light weight/ Medium weight | B1109490F00 | B1613490F00 | B1524491F00 (B1524490F00) |
B3026490F00 | - | For various stitching for shirts, blouses, etc. (stitching width 5-12mm) | |
FA | Light weight/ Medium weight | B1524491F0A (B1524490F0A) |
- | For various stitching for shirts, blouses, etc. (stitching width 6-12mm) | ||||
FB | Light weight/ Medium weight | B1524491F0B (B1524490F0B) |
B3026490D00 | [A]B1524490FA0* [B]SS6090520SP |
For various stitching for shirts, blouses, etc. (stitching width 7-12mm) *Max stitch width at 12m/m (by sliding the stitch guide) |
|||
FC | Light weight/ Medium weight | B1109490E00 | B1613490E00 | B1524491F0C (B1524490F0C) |
B3026490F0C | [A]B1540490FA0* [B]SS6090520SP |
For D-type flexible maneuvering performance. A stitch guide can be attached (stitching width 6-12mm) *Max stitch width at 12m/m (by sliding the stitch guide) |
|
FD | Light weight/ Medium weight | B1109490F0D | B1613490F0D | B1524491F0D (B1524490F0D) |
B3026490F0D | [A]B1540490FAD* [B]SS6090520SP |
FA type reverse type (stitch width 6-13mm) Please refer to the item number chart of unsupported gauge. *Max stitch width at 13m/m (by sliding the stitch guide) |
|
FE | Light weight/ Medium weight | B1109490F00 | B1613490F00 | B1524491F0E (B1524490F0E) |
B3026490F0E | [A]B1540490FA0* [B]SS6090520SP |
Effective for uneven pitch on various stitching on collars of various stitching on shirts, blouse, etc. (stitching width 6-12mm) *Max stitch width at 12m/m (by sliding the stitch guide) |
|
FG | Light weight/ Medium weight | B1109490F0G | B1613490F0G | B1524491F0G (B1524490F0G) |
B3026490F0G | [A]B1540490FAG* [B]SS6090520SP |
Left presser for stitching (stitching width 1-8mm) *Max stitch width at 8m/m (by sliding the stitch guide) |
|
FJ | Light weight | B1109490F00 | B1613490F00 | B1524491F00 (B1524490F00) |
B3026490F0J | [A]B1540490FA0* [B]SS6090520SP |
B3026490F00 (upper feed presser), for preventing cloth scratch on quilted materials, nylon, taffeta, lining, female light-materials, with a urethane rubber heat-bonded on it (stitching width 5-12mm) *Max stitch width at 12m/m (by sliding the stitch guide) |
|
FL | Medium weight | B1109450J00A | B1613490J00 | B1524491F0L | B3026490F0L | [A]B1540490FAL* [B]SS6090520SP |
For zipper crest hemming coverstitching (stitching width 2-9.5mm) *Max stitch width at 9.5m/m (by sliding the stitch guide) |
|
FM | Light weight/ Medium weight | B1109490F00 | B1613490F0M | B1524491F00 (B1524490F00) |
B3026490F00 | [A]B1540490FA0* [B]SS6090520SP |
Feeding dog with F-type urethane rubber (stitching width 5-12mm) *Max stitch width at 12m/m (by sliding the stitch guide) |
For stitch sewing
Guage type | Guage type | THROAT PLATE | FEED DOG | PRESSER FOOT | UPPER FEED PRESSER | Applications / features | |
---|---|---|---|---|---|---|---|
Figure | |||||||
Specification | P/N | P/N | P/N | Figure | P/N | ||
GA | Light weight/ Medium weight |
B1109450G0B | B1613450G00 | B1524491GAA (B1524490GAA) |
B3026491G0A (B3026490G0A) |
A reverse type of M-type (stitch width 1mm with a right stepped presser) | |
GB | Light weight/ Medium weight |
B1524491G0B (B1524490G0B) |
B3026491G0B (B3026490G0B) |
For various stitching for shirts, blouses, etc. (stitching width 1.3mm) |
For materials that are difficult to send
Guage type | Guage | THROAT PLATE | FEED DOG | PRESSER FOOT | UPPER FEED PRESSER | Applications / features | |
---|---|---|---|---|---|---|---|
Figure | |||||||
Specification | P/N | P/N | P/N | Figure | P/N | ||
H | Light weight/ Medium weight |
B1109490S00 | B1613490S00A | B1524491HA0 (B1524490HA0) |
B3026490H00 | For materials that are hard to feed, such as suede and vinyl HA-type presser foot with Teflon-lined | |
HA | Light weight/ Medium weight |
B1524491HAA (B1524490HAA) |
B3026490H00 (B302490H0A) |
For materials that are hard to feed, such as suede and vinyl Effective for puckering as it holds the cloth firmly. |
For fastener attachment (right only)
Guage type | Guage | THROAT PLATE | FEED DOG | PRESSER FOOT | UPPER FEED PRESSER | Applications / features | |
---|---|---|---|---|---|---|---|
Figure | |||||||
Specification | P/N | P/N | P/N | Figure | P/N | ||
J | Medium weight | B1109450J00A (B1109490J00) |
B1613450J00A | B1524491JA0 (B1524490JA0) |
B3026491J00 (B3026490J00) |
For attaching fasteners to one-piece dresses, dresses, skirts, jumper jackets, etc. | |
JA | Medium weight | B1109450J00A | B1524491J0A (B1524490J0A) |
B3026491J0A (B3026490J0A) |
For attaching fasteners to dresses, skirts, trousers, jumper jackets, etc. | ||
JB | Medium weight | B1109450J00A (B1109490J0B) |
B1524491JAB (B1524490JAB) |
B3026490J0B | For attaching fasteners to dresses, skirts, trousers, jumper jackets, etc. | ||
JC | Medium weight | B1109450J00A | B1524491JAC (B1524490JAC) |
B3026490J0C | For attaching fasteners to one-piece dresses, dresses, skirts, sports ware, etc. Effective for preventing torsion. | ||
JF | Medium weight | B1524491JAF (B1524490JAF) |
B3026490J0B | For attaching fasteners to one-piece dresses, dresses, skirts, sports ware, etc. Effective when the cloth covers over the fastener. | |||
JQ | Medium weight | B1109490D00 | B1613490D00 | B1524491J0G (B1524490J0G) |
B3026490J0G | For attaching conceal fasteners to skirts, etc. | |
JJ | Heavy weight | B1109450J00A (B1109490J00) |
B1613490J00 | B1524491JA0 (B1524490JA0) |
B3026491J00 (B3026490J00) |
A feed dog with a larger pitch and stronger feed force | |
JK | Medium weight | B1109490P00 | B1613490P00 | B1524491JAK (B1524490JAK) |
B3026490J0K | Reversed JB-type A presser located right to the needle drop point | |
JL | Medium weight | B1109490P00 | B1613490P00 | B1524491JAL (B1524490JAL) |
B3026490J0K | JK-type presser foot with altered needle drop point release form | |
JM | Medium weight | B1109450J00A | B1613450J00A | B1524491JAM (B1524490JAM) |
B3026490J0B | For attaching fasteners to one-piece dresses, dresses, skirts, sports ware, etc. | |
JN | Medium weight | B1524491JAN (B1524490JAN) |
B3026491J0N (B3026490J0N) |
For attaching fasteners to one-piece dresses, dresses, skirts, sports ware, etc. A type to prevent cloth flapping | |||
JP | Light weight | B1524491JAC (B1524490JAC) |
B3026490J0P | For preventing material scratch on quilted materials, nylon, taffeta, lining, female light-materials, etc. B3029490J0C (upper feed presser) with a urethane rubber heat-bonded on it | |||
JQ | Light weight/ Medium weight |
B1109450G0B | B1613450G00 | B1524491JAQ (B1524490JAQ) |
B3026490B00 | For attaching fasteners (for a one-side presser 1mm right) | |
KA | Light weight/ Medium weight |
B1109490D00 | B1613490D00 | B1524491KAA (B1524490KAA) |
B3026490C00 | A presser with a stitch guide spring (for 1.5mm left) | |
KB | Light weight/ Medium weight |
B1524491KAB | B3026490D00 | A presser with a stitch guide spring (for 3.6mm left) The stitch width converted by replacing the stitch guide. | |||
KC | Light weight/ Medium weight |
B1109490E00 | B1613490E00 | B1524491K0C | B3026490F0C | A wiper attached to FC-type, preventing the stitch ruler (pair) from attaching (for 5mm stitch right) | |
KD | Light weight/ Medium weight |
B1109490K0D | B1613490K0D | B1524491KAD | KC-type with a stitch guide spring (for 2mm right) | ||
KE | Light weight/ Medium weight |
B1109490D00 | B1613490D00 | B1524491KAE | B3026490C00 | Left stepped presser for 1.5mm stitch | |
KF | Light weight/ Medium weight |
B1524491KAF | Right stepped presser for 1.5mm stitch | ||||
KJ | Light weight/ Medium weight |
B1524491KAJ | B3026490D00 | Left stepped presser for 5mm stitch |
For binding
Guage type | Guage | THROAT PLATE | FEED DOG | PRESSER FOOT | UPPER FEED PRESSER | Applications / features | |
---|---|---|---|---|---|---|---|
Figure | |||||||
Specification | P/N | P/N | P/N | Figure | P/N | ||
L | Medium weight | B1109490L00 | MAT10903N00 | B1524491LA0 (B1524490LA0) |
B3026490D00 | For binding stitching for dresses, one-piece dresses, coats, blazers, vests, etc. | |
LA | Medium weight | B1524491LAA (B1524490LAA) |
B3026490L0A | For binding stitching for one-piece dresses, jackets, vests, dresses, etc. (stitch width 1.5mm left stepped presser) | |||
LB | Medium weight | B1524491LAB (B1524490LAB) |
B3026490L0B | For binding stitching for one-piece dresses, jackets, vests, dresses, etc. (stitch width 1.5mm left stepped presser) | |||
LC | Medium weight | B1524491LAC (B1524490LAC) |
For binding stitching for one-piece dresses, jackets, vests, dresses, etc. (stitch width 1.5mm left stepped presser) | ||||
LE | Medium weight | B1109490L00 | MAT10903N00 | B1524491LAE (B1524490LAE) |
B3026490L0B | For binding (stitch width 1mm) | |
LF | Medium weight | B1524491LAB (B1524490LAB) |
B3026490L0C | Upper feed with enhanced feeding power (left stepped presser for 1.5mm stitch); the upper feed of B3026490L0B is adjusted to the right angle position from the diagonal position. | |||
LN | Medium weight | B1524491LAN | B3026491L0N | Reversed LC type (right stepped presser for 1.5mm stitch) |
For three rolls
Guage type | Guage | THROAT PLATE | FEED DOG | PRESSER FOOT | UPPER FEED PRESSER | Applications / features | |
---|---|---|---|---|---|---|---|
Figure | |||||||
Specification | P/N | P/N | P/N | Figure | P/N | ||
M | Medium weight | B1109450G0B | B1613450G00 | B1524491MA0 (B1524490MA0) |
B3026491M00 (B3026490M00) |
For hem triple-winding shapes of one-piece dresses, dresses, coats, skirts, etc. (stitch width 1mm left stepped presser) | |
MA | Medium weight | B1524491MAA (B1524490MAA) |
Stepped presser for hem rubber triple-winding shapes of jumper jackets (stitch width 2mm left stepped presser) | ||||
MD | Medium weight | B1524491MAD (B1524490MAD) |
B3026491M0D (B3026490M0D) |
For hem triple-winding shapes of one-piece dresses, dresses, coats, skirts, etc. | |||
MF | Medium weight | B1524491MAF (B1524490MAF) |
B3026491M0F (B3026490M0F) |
For hem triple-winding shapes of one-piece dresses, dresses, coats, skirts, etc. | |||
MG | Medium weight | B1524491MA0 (B1524490MA0) |
B3026491M0G (B3026490M0G) |
For preventing material scratch on quilted materials, nylon, taffeta, lining, female light-materials, etc. B3026490M00 (upper feed presser) with a urethane rubber heat-bonded on it | |||
MH | Medium weight | B1524491MAH | B3026491M0H (B3026490M0H) |
A type to prevent release of the triple-winding part with a modified box-shaped presser foot of M type (stitch width 1mm left stepped presser) |
For piping
Guage type | Guage | THROAT PLATE | FEED DOG | PRESSER FOOT | UPPER FEED PRESSER | Applications / features | |
---|---|---|---|---|---|---|---|
Figure | |||||||
Specification | P/N | P/N | P/N | Figure | P/N | ||
N | Light weight/ Medium weight |
B1109450N0B | B1613450N00 | B1524491NA0 (B1524490NA0) |
B3026490N00 | For piping stitching for dresses, blouses, one-piece dresses, coats, sport jackets, etc. | |
NA | Light weight/ Medium weight |
B1613490N0A | For piping stitching for dresses, blouses, one-piece dresses, coats, sport jackets, etc. |
For piping
Guage type | Guage | THROAT PLATE | FEED DOG | PRESSER FOOT | UPPER FEED PRESSER | Applications / features | |
---|---|---|---|---|---|---|---|
Figure | |||||||
Specification | P/N | P/N | P/N | Figure | P/N | ||
P | Medium weight | B1109490P00 | B1613490P00 | B1524491PA0 (B1524490PA0) |
B3026491P00 (B3026490P00) |
For attaching fasteners to one-piece dresses, dresses, skirts, jumper jackets, etc. Processing allows close edge surface mm from the needle hole. | |
PA | Medium weight | B1109490P0A | B1613490P0A | For attaching apron fasteners to one-piece dresses, dresses, skirts, sports ware, etc. | |||
PB | Medium weight | B1109490P0B | B1613490P0B | For attaching apron fasteners to one-piece dresses, dresses, skirts, sports ware, etc. A type with 20-degree of feed dog angle, improving forward feeding performance. | |||
PC | Medium weight | B1613490P0C | Reversed Pb-type feed dog | ||||
PD | Medium weight | B1109490P0D | B1613490P00 | For attaching apron fasteners to one-piece dresses, dresses, skirts, sports ware, etc. | |||
PE | Medium weight | B1109490P00 | B1524491PAE | B3026491P0E (B3026490P0E) |
Reverse JN type, preventing cloth from flapping | ||
PF | Medium weight | B1524491P0F (B1524490P0F) |
B3026491P00 (B3026490P00) |
Reversed JA-type |
A type that suppresses the fluttering of the cloth
Guage type | Guage | THROAT PLATE | FEED DOG | PRESSER FOOT | UPPER FEED PRESSER | Applications / features | |
---|---|---|---|---|---|---|---|
Figure | |||||||
Specification | P/N | P/N | P/N | Figure | P/N | ||
Q | Light weight/ Medium weight |
B1109490E00 | B1613490E00 | B1524491QA0 (B1524490QA0) |
B3026490Q0A (knurl) B3026490Q0B (coarse) |
A type that the presser feeds the whole circumference of the needle drop to the upper feed in order to prevent cloth flipping | |
QA | Light weight/ Medium weight |
B1524491QAA (B1524490QAA) |
A type that presses only one side Effective for attaching zippers to jumper jackets | ||||
R | Light weight/ Medium weight |
B1109490R00 | B1613490R00 | B1524491R00 (B1524490R00) |
B3026490R00 | Simple pattern type using the pattern guide for joining of cuffs of shirts and blouses feed dog teeth with urethane rubber * Cut the upper side of the upper feeding presser as needed. |
Effective for puckering type
Guage type | Guage | THROAT PLATE | FEED DOG | PRESSER FOOT | UPPER FEED PRESSER | Applications / features | |
---|---|---|---|---|---|---|---|
Figure | |||||||
Specification | P/N | P/N | P/N | Figure | P/N | ||
S | Light weight | B1109490S00 | B1613490S00A | B1524491SA0 (B1524490SA0) |
B3026490S00 | A type with advantages of both rake-in and cloth stitch types | |
SA | Heavy weight | B1613490S0A | A type with larger feed dog pitch of the S-type. Effective for heavy-weight materials and elastic materials. | ||||
SB | Light weight | B3026490S00A | B3026490S0B | For preventing material scratch on quilted materials, nylon, taffeta, lining, female light-materials, etc. B3026490S00 (upper feed presser) with a urethane rubber heat-bonded on it | |||
SC | Light weight | B1524491SAC (B1524490SAC) |
B3026490S00 | This type allows to observe the needle drop point of S-type for runstitch of women's wear, thin dresses blouses, etc. |
For velvet sewing
Guage type | Guage | THROAT PLATE | FEED DOG | PRESSER FOOT | UPPER FEED PRESSER | Applications / features | |
---|---|---|---|---|---|---|---|
Guage | |||||||
Specification | P/N | P/N | P/N | Figure | P/N | ||
V | Velvet | B1109450D0B | B1613450E00 | B1524491SA0 (B1524490SA0) |
B3026490S00 | Dedicated type for velvet sewing *Please use with Attachment S135. |
Waist belt for drop stitching
Guage type | Guage | THROAT PLATE | FEED DOG | PRESSER FOOT | UPPER FEED PRESSER | Applications / features | |
---|---|---|---|---|---|---|---|
Figure | |||||||
Specification | P/N | P/N | P/N | Figure | P/N | ||
W | Medium weight | B1109490W00 | B1613490W00 | B1524491WA0 (B1524490WA0) |
B302649+H11W00 (B3026490W00) |
For concealed seam under stitching on the female skirt waist belt. Concealed seam from the back. *Please use with Attachment Q049. |
|
WA | Medium weight | B1524491W0A (B1524490W0A) |
B3026491W0A (B3026490W0A) |
A type with the needle drop point closer to the Imber. *Please use with Attachment Q049. |
