产品功能
提高缝制质量和作业效率

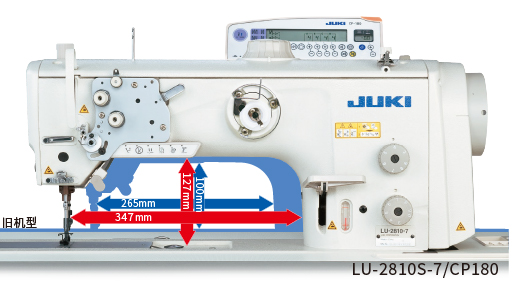

机臂与机针之间空间大，提升了作业效率

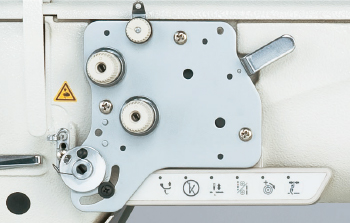

标配双重夹线器
切线规格的机器，可以通过多功能6连开关轻松设置单重或双重夹线器。
（可用于厚料）

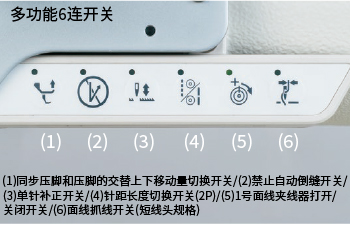

多功能6连开关（切线开关）
除单触式倒缝开关外，还配置了多功能6连开关。只需按一下开关即可进行同步压脚和压脚的交替上下移动量切换、针距长度切换。
同步压脚/压脚交替上下移动机构

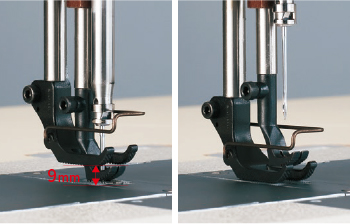

即使面料发生变化，所采用的送布机构也能保持同步压脚和压脚上下移动量之间的比率稳定。同步压脚和压脚的交替上下移动最大量为9mm。可以通过机器上部的大拨盘轻松设定。
压脚提升量更高

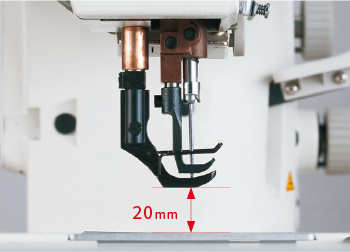

自动压脚提升杆装置可实现20mm的提升量。可以轻松完成高级沙发的皮革和厚海绵的缝制工序。
送布驱动凸轮的偏心率可调
送布驱动凸轮的偏心率可以调节。从而实现以最适合面料和线的送布量进行缝制。
无需其他子类缝纫机。

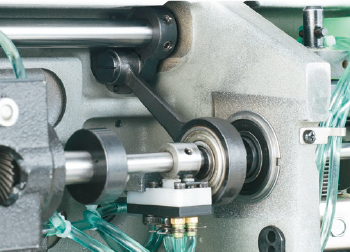

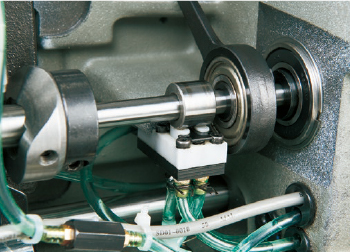

新型供油系统
即使低速运转时也能保持供油系统强劲稳定。

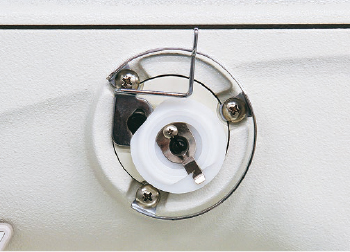

新型底线卷线装置
新型底线卷线装置无需进行手动卷线。
可以切换不同的针距长度

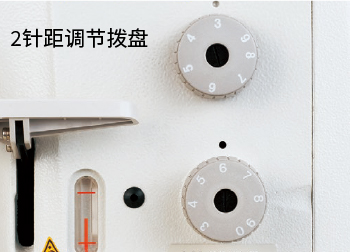

切线装置规格的缝纫机标配2针距调节拨盘。通过瞬间切换针距长度，一台缝纫机可以进行不同针距长度的缝制。

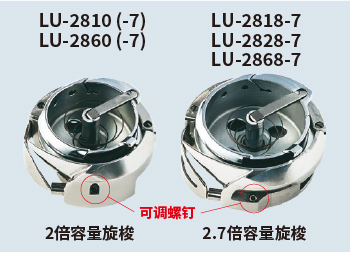

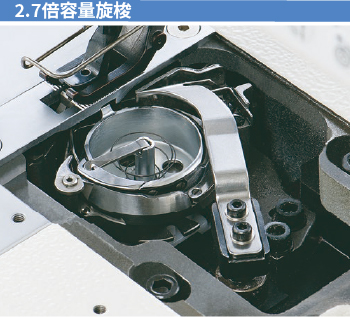

2.0/2.7倍容量旋梭
旋梭的护针量通过螺钉即可调节。护针调节更便捷。可以防止跳针，减少旋梭边缘的磨损。
基本性能
搭载高扭矩直驱马达
配有切线装置的缝纫机采用适合厚料的高扭矩直驱马达。反应性能出色，即使缝制高低段部，也能确保面料穿刺力。
所有带切线装置的缝纫机均采用直驱马达系统。因此缝纫机能迅速启动，提高停止精度，从而保证良好的反应能力。

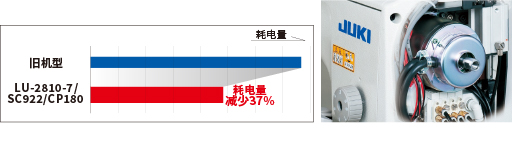

此外，不再配备V形皮带。采用直驱马达能有效避免皮带上落下的皮屑。马达直接向缝纫机传输动力，降低了耗电量。（与旧机型相比，耗电量降低了37%。)采用直驱上轴，机械设计经重新改进，显著降低了噪音。与旧机型相比，噪音降低了3.5dB，为操作人员营造更舒适的工作环境。

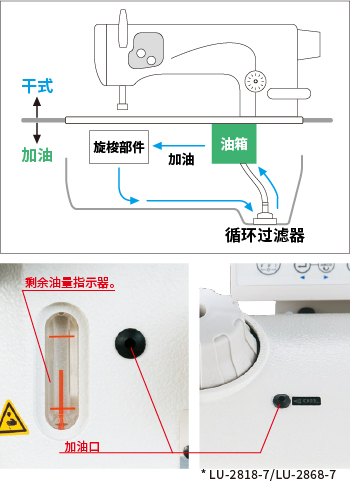

采用新型油箱型自动供油机构
从旋梭周边滴落到底盘中的机油，过滤掉灰尘和污垢后，返回油箱。
这样可以省却供油工作，降低油耗。
剩余油量指示器位于机头正面。无需倾斜机头即可进行供油。
最先进的产品系列

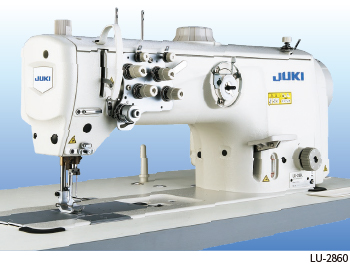

- LU-2810半干式单针综合送布垂直轴2.0倍容量旋梭平缝机LU-2860半干式双针综合送布垂直轴2.0倍容量旋梭平缝机
采用半长高机臂。宽广的机台空间有助于提高作业效率。功能和性能显著提升的直驱综合送布垂直轴大旋梭平缝机。

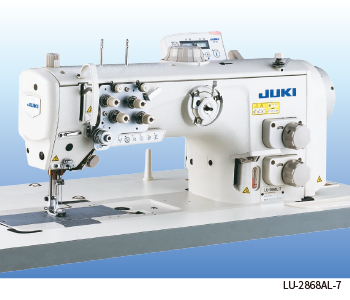

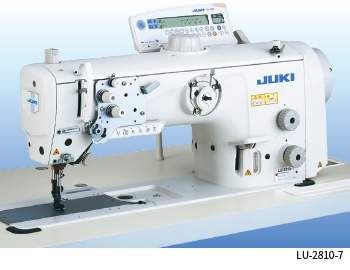

- LU-2810-7半干式直驱单针综合送布垂直轴2.0倍容量旋梭自动切线平缝机LU-2860-7半干式直驱双针综合送布垂直轴2.0倍容量旋梭自动切线平缝机
采用高长机臂。适合缝制汽车座椅、沙发和箱包。作业效率和功能大幅提升，适合缝制大型产品和极厚料。

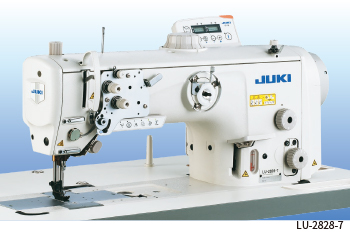

- LU-2828A-7半干式直驱单针综合送布

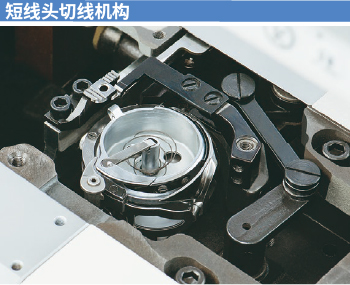

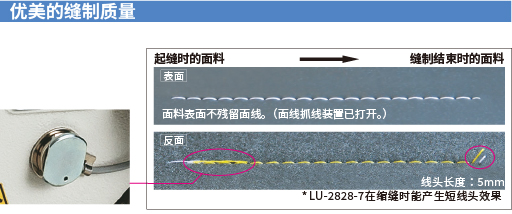

垂直轴2.7倍容量旋梭平缝机（面线收入和短线头规格）LU-2828A-7短线头规格是一款高性能缝纫机。起缝时的面线抓线装置，以及缝制结束时短线头功能的切线装置，使面料上残留的线头更短。因此无需在起缝和缝制结束时进行手工剪线头，从而减轻了操作人员的作业负担。采用了2.7倍的旋梭，减少了底线更换次数，提高了工作效率。

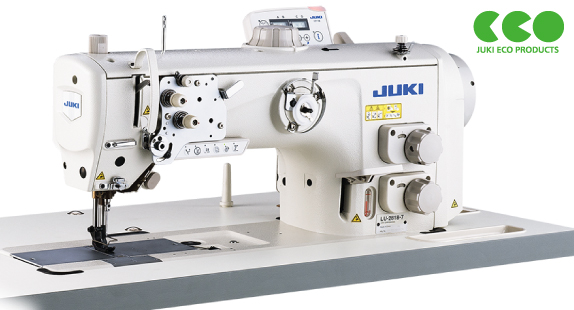

- LU-2818AL-7半干式直驱单针综合送布
垂直轴2.7倍容量旋梭自动切线平缝机（长针距规格）LU-2868AL-7半干式直驱双针综合送布

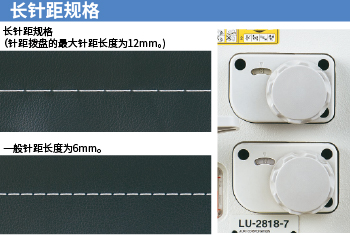

垂直轴2.7倍容量旋梭自动切线平缝机（长针距规格）缝制沙发等家具的最理想缝纫机。最适合长针距的明线缝制。
明线缝制时，机臂与机台之间空间大，充分显示了优良的作业性能。
规格
| 产品型号 | LU-2810 LU-2810N |
LU-2860 LU-2860N |
LU-2810-7 LU-2810N-7 |
LU-2860-7 LU-2860N-7 |
||
|---|---|---|---|---|---|---|
| 类型 | 单针 | 双针 | 单针，带自动切线装置 | 双针，带自动切线装置 | ||
| 最大缝制速度 | 3,000sti/min* | 2,700sti/min* | 3,000sti/min* | 2,700sti/min* | ||
| 最大针距长度 | 9mm | |||||
| 针距长度拨盘 | 1针距调节拨盘 | 2针距调节拨盘 | ||||
| 压脚 | 自动：20mm，手动：10mm | |||||
| 自动提升装置 | 选配 | 标准配置 | ||||
| 交替上下移动 | 1~9mm | |||||
| 交替上下移动调节方式 | 大拨盘 | |||||
| DL装置 | - | 标准配置 | ||||
| 面线夹线器 | 双重夹线器 | 单/双重夹线器 | ||||
| 旋梭 | 垂直轴2倍容量旋梭 | |||||
| 下送布微调机构 | 标准配置 | |||||
| 机针 | 135×17 Nm160 (Nm125~Nm180) | |||||
| 线 | #30~#5, B46~B138, Nm=60/3~20/3 | |||||
| 供油方式 | 半干式机头（油箱系统） | |||||
| 单触式倒缝开关 | - | 标准配置 | ||||
| 手动开关 | - | 多功能6连开关 | ||||
| 安全装置 | 标准配置（按下按钮可重置） | |||||
| 电源要求/耗电量 | - | 单相100~120V/200~240V，三相200~240V/180VA （带自动切线装置） |
||||
| 机头重量 | 56kg | 61kg | 66kg | |||
*“sti/min”代表“针/分钟”。
| 产品型号 | LU-2818AL-7 LU-2818NAL-7 |
LU-2868AL-7 | LU-2828A-7 LU-2828NAL-7 |
|||
|---|---|---|---|---|---|---|
| 类型 | 单针， 垂直轴2.7倍容量旋梭，带自动切线装置 （长针距规格） |
双针， 垂直轴2.7倍容量旋梭，带自动切线装置 （长针距规格） |
单针， 垂直轴2.7倍容量旋梭，带自动切线装置 （面线收入和短线头规格） |
|||
| 最大缝制速度 | 3,000sti/min* | 2,700sti/min* | 3,000sti/min* | |||
| 最大针距长度 | 12mm | 9mm | ||||
| 针距长度拨盘 | 2针距调节拨盘 | |||||
| 压脚 | 自动：20mm，手动：10mm | |||||
| 自动提升装置 | 标准配置 | |||||
| 交替上下移动 | 1~9mm | |||||
| 交替上下移动调节方式 | 大拨盘 | |||||
| DL装置 | 标准配置 | |||||
| 面线夹线器 | 单/双重夹线器 | |||||
| 旋梭 | 垂直轴2.7倍容量旋梭 | |||||
| 下送布微调机构 | 标准配置 | |||||
| 机针 | 135×17 Nm160 (Nm125~Nm180) |
134×35 Nm140 (Nm125~Nm180) |
||||
| 线 | #30~#5, B46~B138, Nm=60/3~20/3 | |||||
| 供油方式 | 半干式机头（油箱系统） | |||||
| 单触式倒缝开关 | 标准配置 | |||||
| 手动开关 | 多功能6连开关 | |||||
| 安全装置 | 标准配置（按下按钮可重置） | |||||
| 电源要求/耗电量 | 单相100~120V/200~240V，三相200~240V/180VA（带自动切线装置） | |||||
| 机头重量 | 66kg | 68kg | 62kg | |||
*“sti/min”代表“针/分钟”。

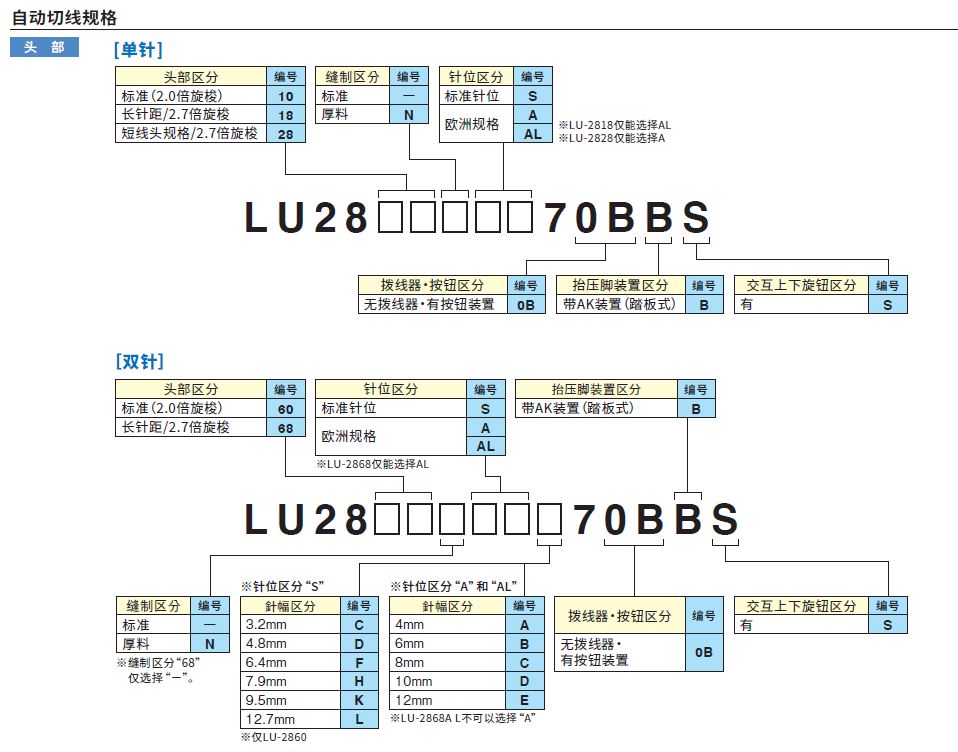

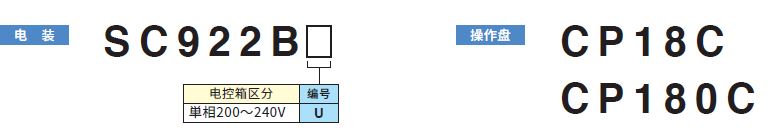

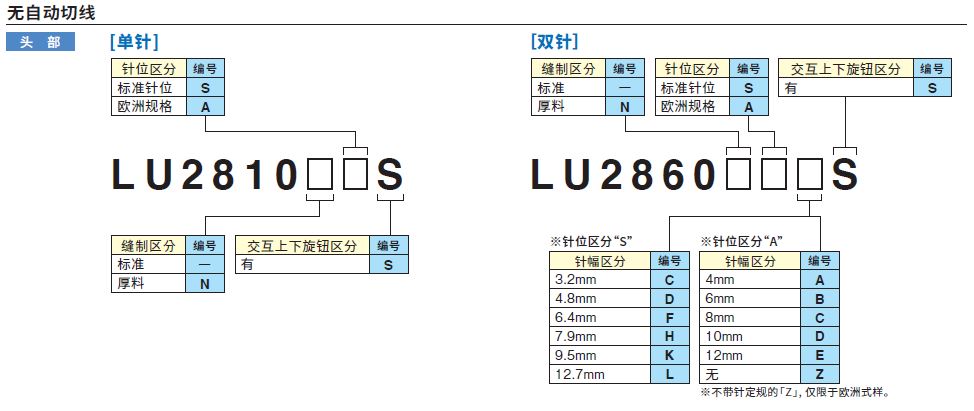

当您下订单时
针位
LU-2810
LU-2810-7
| Guage | THROAT PLATE | FEED DOG | FEED FOOT ASM. | FEED FOOT | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Figure |  |
 |
 |
|||||||
| Model | LU-2810S | LU-2810S-7 | LU-2810S | LU-2810S-7 | LU-2810S | LU-2810S-7 | LU-2810S | LU-2810S-7 | ||
| - | inch | mm | P/N | P/N | P/N | P/N | P/N | |||
| Standard | 40112212 | 40126349 | 40133270 | 40143061 | - | |||||
| OP | 40133271 | - | - | - | ||||||
| Guage | PRESSER FOOT ASM. | SLIDE PLATE_LEFT | SLIDE PLATE_RIGHT | SLIDE PLATE WINDOW | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Figure |  |
 |
 |
 |
||||||
| Model | LU-2810S | LU-2810S-7 | LU-2810S | LU-2810S-7 | LU-2810S | LU-2810S-7 | LU-2810S | LU-2810S-7 | ||
| - | inch | mm | P/N | P/N | P/N | P/N | P/N | P/N | ||
| Standard | 21350152 | 40112224 | 40142215 | 40112225 | - | - | ||||
| OP | - | - | 40133312(With a window) | 22601504 | ||||||
| Guage | FEED FOOT | PRESSER FOOT ASM. | CENTER PRESSER FOOT | OUTER PRESSER FOOT ASM. | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Figure |  |
 |
 |
 |
||||||
| Model | LU-2810S | LU-2810S-7 | LU-2810S | LU-2810S-7 | LU-2810S | LU-2810S-7 | LU-2810S | LU-2810S-7 | ||
| - | inch | mm | P/N | P/N | P/N | P/N | ||||
| OP: For piping | 3/16 | 4.8 | B1478245000 | B15302450AD | B147924500D | B15312450AD | ||||
| 1/4 | 6.4 | B15302450AF | B147924500F | B15312450AF | ||||||
| 5/16 | 7.9 | B15302450AH | B147924500H | B15312450AH | ||||||
| 3/8 | 9.5 | B15302450AK | - | - | ||||||
| Guage | FEED FOOT_TEETH | PRESSER FOOT ASM. | ||||
|---|---|---|---|---|---|---|
| Figure |  |
 |
||||
| Model | LU-2810S | LU-2810S-7 | LU-2810S | LU-2810S-7 | ||
| - | inch | mm | P/N | P/N | ||
| OP: For piping | 3/16 | 4.8 | B147424500D | B15272450AD | ||
| 1/4 | 6.4 | B147424500F | B15272450AF | |||
| 5/16 | 7.9 | B147424500H | B15272450AH | |||
| 3/8 | 9.5 | B147424500K | B15272450AK | |||
| Guage | FEED FOOT_RIGHT-EDGE PRESSER | PRESSER FOOT ASM._RIGHT-EDGE PRESSER | ||||
|---|---|---|---|---|---|---|
| Figure |  |
 |
||||
| Model | LU-2810S | LU-2810S-7 | LU-2810S | LU-2810S-7 | ||
| - | inch | mm | P/N | P/N | ||
| OP | B147624500A | B15292450AA | ||||
| Remarks | With teeth | With teeth | ||||
| Guage | FEED FOOT_LEFT-EDGE PRESSER | PRESSER FOOT ASM._LEFT-EDGE PRESSER | FEED FOOT_LEFT-EDGE PRESSER | PRESSER FOOT ASM._LEFT-EDGE PRESSER | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Figure |  |
 |
 |
 |
||||||
| Model | LU-2810S | LU-2810S-7 | LU-2810S | LU-2810S-7 | LU-2810S | LU-2810S-7 | LU-2810S | LU-2810S-7 | ||
| - | inch | mm | P/N | P/N | P/N | P/N | ||||
| OP | 10338309 | B1525563SA0 | B14702450A0 | B15242450A0 | ||||||
| Remarks | With teeth | With teeth | Slit | - | ||||||
| Guage | FEED FOOT_FOR BINDING | FEED FOOT_FOR BINDING | PRESSER FOOT ASM._FOR BINDING | |||||
|---|---|---|---|---|---|---|---|---|
| Figure |  |
 |
 |
|||||
| Model | LU-2810S | LU-2810S-7 | LU-2810S | LU-2810S-7 | LU-2810S | LU-2810S-7 | ||
| - | inch | mm | P/N | P/N | P/N | |||
| OP | MAQ09307000 | MAN10452000 | MAQ093080A0 | |||||
| Remarks | - | - | With teeth | |||||
LU-2818AL-7
LU-2828A-7
| Guage | THROAT PLATE | FEED DOG | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Figure | |
 |
||||||||
| Model | LU-2810A | LU-2810A-7 | LU-2818A-7 | LU-2810A-7/X73178 | LU-2810A | LU-2810A-7 | LU-2818A-7 | LU-2810A-7/X73178 | ||
| For Europe | 40112211 | 40126350 | 40147949 | 40126350 | 40133272 | 40125925 | 40133272 | |||
| OP | - | - | - | - | 40133273 | 40133272 | - | |||
| OP:Without groove | - | - | - | - | 10717205 | - | ||||
| OP: For fine yarn | - | - | - | - | 10717304 | - | ||||
| Guage | FEED FOOT ASM. | |||||
|---|---|---|---|---|---|---|
| Figure |  |
|||||
| Model | LU-2810A | LU-2810A-7 | LU-2818A-7 | LU-2810A-7/X73178 | ||
| For Europe | 10711653 | 10712354 | 10711653 | |||
| Guage | PRESSER FOOT ASM. | SLIDE PLATE_FRONT | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Figure |  |
 |
||||||||
| Model | LU-2810A | LU-2810A-7 | LU-2818A-7 | LU-2810A-7/X73178 | LU-2810A | LU-2810A-7 | LU-2818A-7 | LU-2810A-7/X73178 | ||
| For Europe | 10712552 | 40147918 | ||||||||
| Guage | SLIDE PLATE_LEFT | SLIDE PLATE_RIGHT | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Figure | |
|
||||||||
| Model | LU-2810A | LU-2810A-7 | LU-2818A-7 | LU-2810A-7/X73178 | LU-2810A | LU-2810A-7 | LU-2818A-7 | LU-2810A-7/X73178 | ||
| For Europe | 40112224 | 40142215 | 40112225 | 40147944 | 40147944 | |||||
| OP | - | 40133312 (With a window) |
40155087 (With a window) |
- | ||||||
| Guage | FEED FOOT ASM._FOR PIPING | PRESSER FOOT ASM._FOR PIPING | FEED FOOT ASM._FOR PIPING | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Figure |  |
 |
 |
||||||||
| Model | LU-2810A | LU-2810A-7 | LU-2818A-7 | LU-2810A | LU-2810A-7 | LU-2818A-7 | LU-2810A | LU-2810A-7 | LU-2818A-7 | ||
| - | inch | mm | P/N | P/N | P/N | ||||||
| OP | - | 3 | 10745354 | 10747350 | 10746352 | ||||||
| - | 4 | 10745453 | 10747459 | 10746451 | |||||||
| - | 5 | 10745552 | 10747558 | 10746550 | |||||||
| - | 6 | 10745651 | 10747657 | 10746659 | |||||||
| Remarks | - | - | Adujustment type | ||||||||
| Guage | FEED FOOT ASM._FOR URETHANE | FEED FOOT ASM._FOR URETHANE | FEED FOOT ASM._FOR URETHANE | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Figure |  |
 |
 |
||||||||
| Model | LU-2810A | LU-2810A-7 | LU-2818A-7 | LU-2810A | LU-2810A-7 | LU-2818A-7 | LU-2810A | LU-2810A-7 | LU-2818A-7 | ||
| - | P/N | P/N | P/N | ||||||||
| OP | 10711653 | 10712354 | 10711752 | ||||||||
| Remarks | For light-weight urethane | For light-weight urethane,Without groove | For heavy-weight urethane | ||||||||
| Guage | PRESSER FOOT ASM._FOR URETHANE | FEED FOOT ASM._RIGHT EDGE PRESSER | PRESSER FOOT ASM._RIGHT EDGE PRESSER | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Figure |  |
 |
 |
||||||||
| Model | LU-2810A | LU-2810A-7 | LU-2818A-7 | LU-2810A | LU-2810A-7 | LU-2818A-7 | LU-2810A | LU-2810A-7 | LU-2818A-7 | ||
| - | P/N | P/N | P/N | ||||||||
| OP | 10712750 | 10711851 | 10712859 | ||||||||
| Guage | FEED FOOT ASM._LEFT EDGE PRESSER | PRESSER FOOT ASM._LEFT EDGE PRESSER | ||||||
|---|---|---|---|---|---|---|---|---|
| Figure |  |
 |
||||||
| Model | LU-2810A | LU-2810A-7 | LU-2818A-7 | LU-2810A | LU-2810A-7 | LU-2818A-7 | ||
| - | P/N | P/N | ||||||
| OP | 10711950 | 10712958 | ||||||
| Guage | FEED FOOT ASM._WIDE TYPE | PRESSER FOOT ASM._WIDE TYPE | ||||||
|---|---|---|---|---|---|---|---|---|
| Figure |  |
 |
||||||
| Model | LU-2810A | LU-2810A-7 | LU-2818A-7 | LU-2810A | LU-2810A-7 | LU-2818A-7 | ||
| - | P/N | P/N | ||||||
| OP | 10712057 | 10713055 | ||||||
| Guage | FEED FOOT ASM._CONTROL AREA SMALLNESS | FEED FOOT ASM._CONTROL AREA SMALLNESS | PRESSER FOOT ASM._CONTROL AREA SMALLNESS | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Figure | |
|
 |
||||||||
| Model | LU-2810A | LU-2810A-7 | LU-2818A-7 | LU-2810A | LU-2810A-7 | LU-2818A-7 | LU-2810A | LU-2810A-7 | LU-2818A-7 | ||
| - | P/N | P/N | P/N | ||||||||
| OP | 10711653 | 10712354 | 10758456 | ||||||||
| Remarks | - | Without groove | - | ||||||||
| Guage | FEED FOOT ASM._FOR OVERLAPPED SECTIONS OF MATERIAL | FEED FOOT ASM._FOR OVERLAPPED SECTIONS OF MATERIAL | PRESSER FOOT ASM._FOR OVERLAPPED SECTIONS OF MATERIAL | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Figure | |
|
 |
||||||||
| Model | LU-2810A | LU-2810A-7 | LU-2818A-7 | LU-2810A | LU-2810A-7 | LU-2818A-7 | LU-2810A | LU-2810A-7 | LU-2818A-7 | ||
| - | P/N | P/N | P/N | ||||||||
| OP | 10711653 | 10712354 | 10712651 | ||||||||
| Remarks | - | Without groove | - | ||||||||
LU-2860
LU-2860-7
LU-2868AL-7
| Guage | THROAT PLATE | FEED DOG | NEEDLE CLAMP ASM. | PRESSER FOOT ASM. | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | LU-2860S | LU-2860S-7 | LU-2860S | LU-2860S-7 | LU-2860S | LU-2860S-7 | LU-2860S | LU-2860S-7 | ||
| Figure |  |
|
 |
 |
 |
|||||
| Needle guage size | P/N | P/N | P/N | P/N | P/N | |||||
| Code | inch | mm | Without thread trimmer | With thread tremmer | ||||||
| D | 3/16 | 4.8 | 40127004 | 40127023 | 40126146 | 21368154 | 21367651 | |||
| F | 1/4 | 6.4 | 40127005 | 40127024 | 40126147 | 21368253 | 21367750 | |||
| H | 5/16 | 7.9 | 40127006 | 40127025 | 40126148 | 21368352 | 21367859 | |||
| K | 3/8 | 9.5 | 40127007 | 40127026 | 40126149 | 21368451 | 21367958 | |||
| Guage | WALKING FOOT ASM. | SLIDE PLATE | GUAGE SET | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | LU-2860S | LU-2860S-7 | LU-2860 | LU-2860-7 | LU-6868A-7 | LU-2860S | LU-2860S-7 | ||
| Figure |  |
 |
|
- | |||||
| Needle guage size | P/N | P/N | P/N | P/N | P/N | ||||
| Code | inch | mm | Without thread trimmer | With thread tremmer | |||||
| D | 3/16 | 4.8 | 21367156 | 40127056 | 40147945 | 40150791 | 40150803 | ||
| F | 1/4 | 6.4 | 21367255 | 40150792 | 40150804 | ||||
| H | 5/16 | 7.9 | 21367354 | 40150793 | 40150805 | ||||
| K | 3/8 | 9.5 | 21367453 | 40150794 | 40150806 | ||||
| Remarks | - | - | - | Without slide plate | |||||
| Guage | FEED FOOT ASM._FOR CENTER GUIDE | FEED FOOT ASM._FOR CENTER GUIDE | PRESSER FOOT ASM._FOR CENTER GUIDE | |||||
|---|---|---|---|---|---|---|---|---|
| Model | LU-2860S | LU-2860S-7 | LU-2860S | LU-2860S-7 | LU-2860S | LU-2860S-7 | ||
| Figure |  |
 |
 |
|||||
| Needle guage size | P/N | P/N | P/N | |||||
| OP | inch | mm | ||||||
| 5/16 | 7.9 | 21372552 | 21373758 | 21374657 | ||||
| 3/8 | 9.5 | 21372651 | 21373857 | 21374756 | ||||
| Remarks | - | Slit | - | |||||
| Guage | GUAGE SET | THROAT PLATE | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | LU-2860A | LU-2860A-7 | LU-2868A-7 | LU-2860A | LU-2860A-7 | LU-2868A-7 | LU-2868A-7 | |||
| Figure | - |  |
|
|||||||
| Needle guage size | P/N | P/N | P/N | P/N | P/N | |||||
| Code | - | mm | Without thread trimmer | With thread tremmer | - | 12mm to 9mm exchange | Without thread trimmer | With thread tremmer | 12mm to 9mm exchange | |
| - | - | 3 | 40150760 | 40150775 | - | - | 40144316 | 40144330 | - | - |
| - | - | 4 | 40150761 | 40150776 | - | - | 40144317 | 40144331 | - | - |
| B | - | 6 | 40150762 | 40150777 | 40155973 | 40155979 | 40126976 | 40126986 | 40147951 | 40126986 |
| C | - | 8 | 40150763 | 40150778 | 40155974 | 40155980 | 40126977 | 40126987 | 40147952 | 40126987 |
| D | - | 10 | 40150764 | 40150779 | 40155975 | 40155981 | 40126978 | 40126988 | 40147953 | 40126988 |
| E | - | 12 | 40150765 | 40150780 | 40155976 | 40155982 | 40126979 | 40126989 | 40147954 | 40126989 |
| - | - | 14 | 40150766 | 40150781 | - | - | 40144319 | 40144333 | - | - |
| - | - | 16 | 40150767 | 40150782 | - | - | 40144320 | 40144334 | - | - |
| - | - | 18 | 40150768 | 40150783 | - | - | 40144321 | 40144335 | - | - |
| - | - | 20 | 40150769 | 40150784 | - | - | 40144322 | 40144336 | - | - |
| - | - | 22 | 40150770 | 40150785 | - | - | 40144323 | 40144337 | - | - |
| - | - | 24 | 40150771 | 40150786 | - | - | 40144324 | 40144338 | - | - |
| - | - | 25 | 40150772 | 40150787 | - | - | 40144325 | 40144339 | - | - |
| - | - | 30 | 40150773 | 40150788 | - | - | 40144327 | 40144341 | - | - |
| - | - | 36 | 40150774 | 40150789 | - | - | 40144328 | 40144342 | - | - |
| Remarks | A slide plate is not containces in the contents of composition of a guage set. | - | ||||||||
| 12mm to 9mm exchange guage set becomes the composition of the [9mm guage set] + [sending dial stopper pin]. | - | |||||||||
| Guage | FEED DOG | PRESSER FOOT ASM. | FEED FOOT ASM. | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | LU-2860A | LU-2860A-7 | LU-2868A-7 | LU-2860A | LU-2860A-7 | LU-2868A-7 | LU-2860A | LU-2860A-7 | LU-2868A-7 | ||
| Figure |  |
 |
 |
||||||||
| Needle guage size | P/N | P/N | P/N | ||||||||
| Code | - | mm | |||||||||
| - | - | 3 | 40144344 | - | 40144390 | - | 40061164 | - | |||
| - | - | 4 | 40144352 | - | 10781557 | - | 40061806 | - | |||
| B | - | 6 | 40126142 | 10781656 | 40135589 | ||||||
| C | - | 8 | 40126143 | 10781755 | 40135590 | ||||||
| D | - | 10 | 40126144 | 10781854 | 40038898 | ||||||
| E | - | 12 | 40126145 | 10781953 | 40095748 | ||||||
| - | - | 14 | 40144354 | - | 10782050 | - | 40144407 | - | |||
| - | - | 16 | 40144355 | - | 10782159 | - | 40144408 | - | |||
| - | - | 18 | 40144356 | - | 10782258 | - | 40144409 | - | |||
| - | - | 20 | 40144357 | - | 10782357 | - | 40144410 | - | |||
| - | - | 22 | 40144358 | - | 10782456 | - | 40144411 | - | |||
| - | - | 24 | 40144359 | - | 10782555 | - | 40144412 | - | |||
| - | - | 25 | 40144360 | - | 40144391 | - | 40144413 | - | |||
| - | - | 30 | 40144362 | - | 10782654 | - | 40144414 | - | |||
| - | - | 36 | 40144363 | - | 10782753 | - | 40144419 | - | |||
| Guage | NEEDLE CLAMP ASM. | SLIDE PLATE | SLIDE PLATE FRONT | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | LU-2860A | LU-2860A-7 | LU-2868A-7 | LU-2860A | LU-2860A-7 | LU-2860A | LU-2860A-7 | LU-2868A-7 | |||
| Figure |  |
 |
|
||||||||
| Needle guage size | P/N | P/N | P/N | ||||||||
| Code | - | mm | |||||||||
| - | - | 3 | 40144367 | - | 40112225 | - | 40156017 (With window) |
||||
| - | - | 4 | 40144369 | - | - | ||||||
| B | - | 6 | 40038778 | 40127056 | 40147918 | ||||||
| C | - | 8 | 40038776 | ||||||||
| D | - | 10 | 40038774 | ||||||||
| E | - | 12 | 40038772 | ||||||||
| - | - | 14 | 40144371 | - | 40144416 | - | |||||
| - | - | 16 | 40144373 | - | - | ||||||
| - | - | 18 | 40144375 | - | - | ||||||
| - | - | 20 | 40144377 | - | 40144417 | - | |||||
| - | - | 22 | 40144379 | - | - | ||||||
| - | - | 24 | 40144381 | - | - | ||||||
| - | - | 25 | 40144383 | - | - | ||||||
| - | - | 30 | 40144385 | - | 40144418 | - | |||||
| - | - | 36 | 40144387 | - | - | ||||||
| Guage | FINGER GUARD | STOPPER PIN | |||
|---|---|---|---|---|---|
| Model | LU-2860A | LU-2860A-7 | LU-2868A-7 | ||
| Figure |  |
 |
|||
| Needle guage size | P/N | P/N | |||
| Code | - | mm | |||
| - | - | 3 | - | - | |
| - | - | 4 | 10786903 | - | |
| B | - | 6 | PH0400062C0 | ||
| C | - | 8 | |||
| D | - | 10 | 10787000 | ||
| E | - | 12 | |||
| - | - | 14 | 10787109 | - | |
| - | - | 16 | - | ||
| - | - | 18 | - | ||
| - | - | 20 | 10787208 | - | |
| - | - | 22 | - | ||
| - | - | 24 | - | ||
| - | - | 25 | - | ||
| - | - | 30 | 10787307 | - | |
| - | - | 36 | 10787406 | - | |
| Guage | FEED FOOT ASM._FOR CENTER GUIDE | PRESSER FOOT ASM._FOR CENTER GUIDE | ||||||
|---|---|---|---|---|---|---|---|---|
| Model | LU-2860A | LU-2860A-7 | LU-2868A-7 | LU-2860A | LU-2860A-7 | LU-2868A-7 | ||
| Figure |  |
 |
||||||
| Needle guage size | P/N | P/N | ||||||
| - | Code | mm | ||||||
| OP | D | 10 | 40039271 | 40038806 | ||||
| E | 12 | 40095750 | 40038802 | |||||
