产品功能

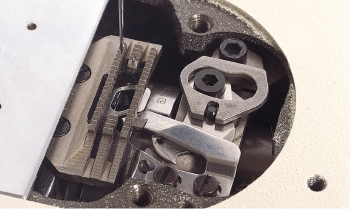

可靠性高的切线机构
(DDL-5550N-7)配备切线机构，切线快速可靠，实现高效缝制作业。

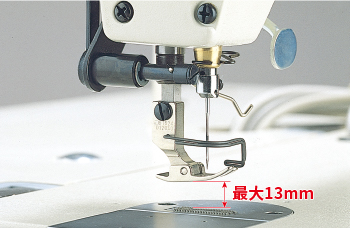

压脚提升量更高
压脚提升量加大，更易于放置或取出布料，或缝制重叠部位。

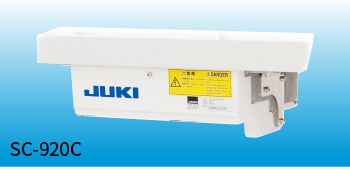

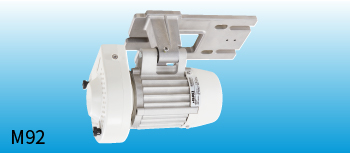

新型电子控制箱SC-920/小型伺服马达M92
新型电子控制箱SC-920C是最新开发产品。能抗电压波动、噪音和振动。
首次在缝纫机控制箱中配备节能模式。
马达不转时，待机时间的耗电量降低了约25%（相比于SC-910N）。
此外，DDL-5550N-7采用最新节能技术，配置最新小型伺服马达M92，节能又环保，同时提高了生产效率。

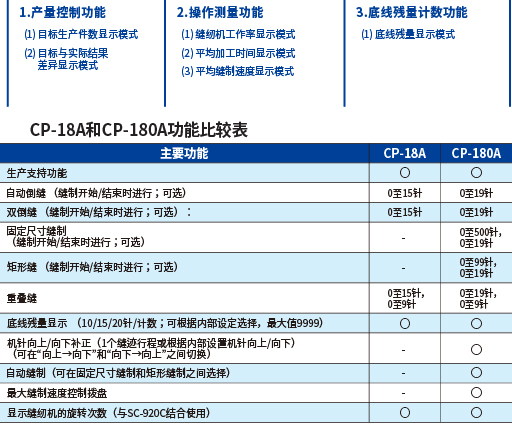

可以根据工序选择相应操作面板CP-18A和CP-180A
两种不同的操作面板CP-18A和 CP-180A适用于DDL-5550N-7。两个操作面板均具有生产支持功能。
生产支持功能实际上由三种不同的功能组成（六种不同模式）。
规格
| 产品型号 | DDL-5550N-7 | DDL-5550NA-7 | DDL-5550NH-7 |
|---|---|---|---|
| 用途 | 用于中厚料 | 用于薄料 | 用于厚料 |
| 最大缝制速度 | 5,000sti/min* | 4,000sti/min* | |
| 最大针距长度 | 4mm | 5mm | |
| 针杆行程 | 30.7mm | 29mm | 35mm |
| 压脚提升量 | 手动：5.5mm，膝动：13mm | 手动：4mm，膝动：9mm | 手动：5.5mm，膝动：13mm |
| 机针 （出厂时） |
DB×1（#14） 适用于JE：134 (Nm75) |
DA×1（#9） 适用于JE：134 (Nm65) |
DB×1（#21） 适用于JE：134 (Nm130) |
| 旋梭 | 自动供油全回转旋梭 | ||
| 供油方式 | 自动 | ||
| 供油 | JUKI新型1号Defrix Oil（等同于ISO VG7） | ||
| 自动倒缝功能 | 标准配置 | ||
| 电源要求 | 单相100~120V、200~240V，三相200~240V | ||
| 耗电量 | 650VA | ||
| 总重 | 81kg | ||
| 产品型号 | DDL-5550N | DDL-5550NA | DDL-5550NH | |
|---|---|---|---|---|
| 用途 | 用于中厚料 | 用于薄料 | 用于厚料 | |
| 最大缝制速度 | 5,500sti/min* | 4,000sti/min* | ||
| 最大针距长度 | 5mm | 4mm | 5mm | |
| 针杆行程 | 30.7mm | 29mm | 35mm | |
| 压脚提升量 | 手动：5.5mm，膝动：13mm | 手动：4mm，膝动：9mm | 手动：5.5mm，膝动：13mm | |
| 机针 （出厂时） |
DB×1（#14） 适用于JE：134 (Nm75) |
DA×1（#9） 适用于JE：134 (Nm65) |
DB×1（#21） 适用于JE：134 (Nm130) |
|
| 旋梭 | 自动供油全回转旋梭 | |||
| 供油方式 | 自动 | |||
| 供油 | JUKI新型1号Defrix Oil（等同于ISO VG7） | |||
*“sti min”代表“针/分钟”

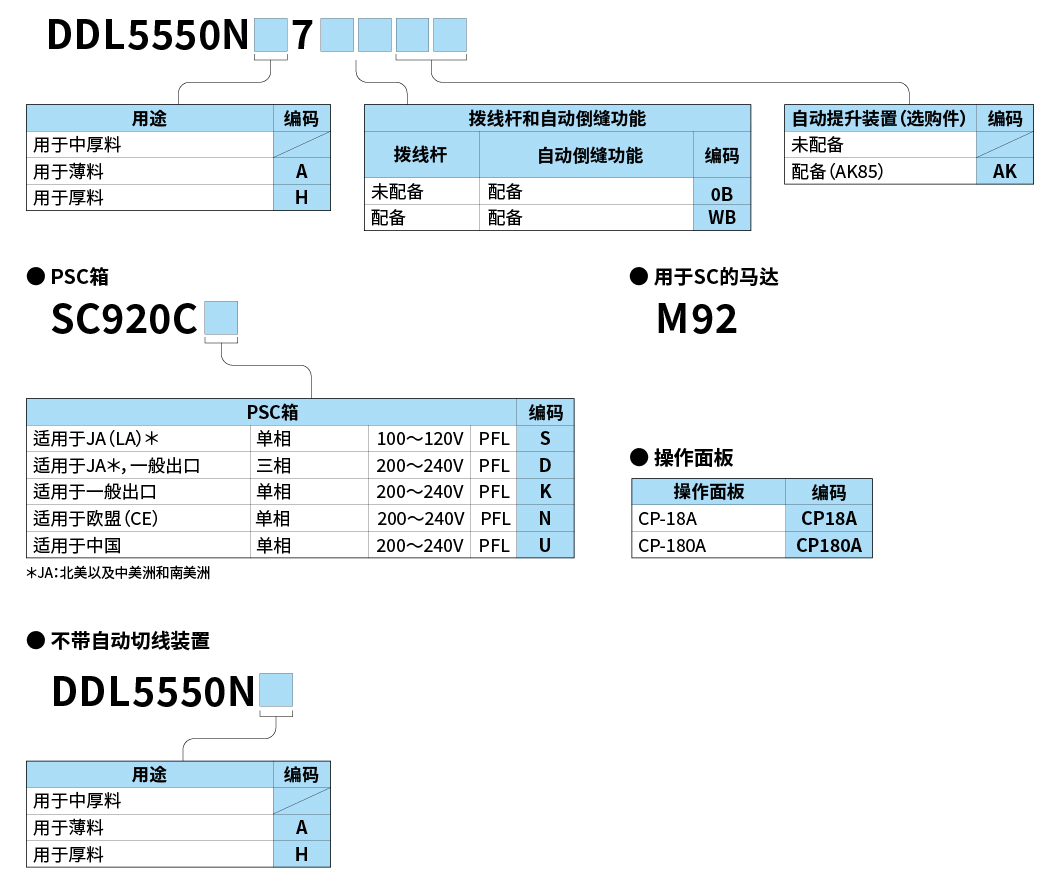

当您下订单时
针位
DDL-5550N
DDL-5550NA
DDL-5550NH
| Guage | THROAT PLATE | FEED DOG | PRESSER FOOT ASM. | Specification | Sewing features | Remarks | Model | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Figure |  |
 |
 |
||||||||||||
| P/N | Needle hole | Number of grooves | Thick | P/N | Pitch | P/N | |||||||||
| B1109012A00 | 1.9 | 3 | 2.6 | B1613012A00 *B1613012A0B *B1613012B00 |
1.5 - 1.15 |
B1524012A0 *B1524012TA0 *B15245520A0 *D1524126WA0 *D1524555DA0 *11028156 |
Light weight/ Medium weight | For general sewing | Throat plate (B1109012A0B) provides higher durability than throat plate (B1109012A00). Throat plate (B1109012A0F) has engraved marker lines and numbers vertically and horizontaly at intervals of 10mm. Throat plate (11028008) has engraved marker lines and numbersat intervals of 5mm. Throat plate (11001708) has grooves on the needle hole section and is effective to achieve well-tensed seam. Feed dog (B1613012A0B) has teeth made of urethane rubber and effectively prevents damages on the material. |
DDL-5550N | |||||
| B1109012A0B | 1.9 | 3 | 2.6 | ||||||||||||
| B1109012A0F | 1.9 | 3 | 2.6 | ||||||||||||
| 11028008 | 1.9 | 3 | 2.6 | ||||||||||||
| 11001708 | 1.9 | 3 | 2.6 | ||||||||||||
| B1109012A0C | 1.9 | 3 | 2.6 | B1613012A0C | 1.5 | Medium weight | Since the material ls securely clamped, puckering and uneven material feed are effectively prevened. | Use of sliding foot (B1524227AA0) prevents puckerihg and uneven material feed more effectively. | |||||||
| B1109012A0N | 1.9 | 3 | 2.6 | B1613012A00 *B1613012A0B *B1613012B00 |
1.5 - 1.15 |
B1524555DAN | Suited to frictional faabrlcs. | Throat plate have been finished with nidax. | |||||||
| B1109012B00 | 2.2 | 3 | 2.6 | B15240120A0 *1524012TA0 *B15245520A0 *D1524126WA0 *D1524555DA0 *11028156 |
Medium weight/ Heavy weight | For sewhg heavy weight materials in general. | Throat plate (B1109012B0F) has engraved marker lines and numbers vertically and horizontaly at intervals of 10mm. | ||||||||
| B1109012B0F | 2.2 | 3 | 2.6 | ||||||||||||
| B1109012C00 | 1.9 | 4 | 2.6 | B1613012C00 | 1.5 | Medium weight | Suited to long-sized materials which need to be fed straight. | Throat plate (B1109012C0B) provides higher durability than throat plate (B1109012C00). Throat plate (B1109012C00) is used with regular types of sewing machine. Throat plate (B1109012C0B) is used with the sewing machine with a thread trimmer. Throat plate (B1109012C0F) has engraved marker lines and numbers vertically and horizontaly at intervals of 10mm. Throat plate (11001807) has grooves on the needle hole section and is effective to achieve well tensed seams. |
|||||||
| B1109012C0B | 1.9 | 4 | 2.6 | ||||||||||||
| B1109012C0F | 1.9 | 4 | 2.6 | ||||||||||||
| 11001807 | 1.9 | 4 | 2.6 | ||||||||||||
| B1109012D00 | 1.9 | 4 | 2 | B1613012D00 | 1.15 | The feed dog has 4 teeth, but is suited to sewing sharp curves when compared with the other 4-teeth feed dogs. | |||||||||
| B1109012E00 | 2.4 | 3 | 2.6 | B1613012A00 *B1613012B00 |
1.5 1.15 |
Heavy weight | The needle hole on the throat plate has a recess, which is efective when sewing a material to be sewn with a higher thread tension. | Slightly increase the pressure of the presser foot. | |||||||
| B1109012F00 | 1.6 | 3 | 2.6 | B1613012B00 *B1613012A00 |
1.15 1.5 |
B15240120A0 *B1524012TA0 *B15245520A0 *D1524126WA0 *D1524555BA0 *D1524555DA0 *11028156 |
Light eight | Efectively prevents stitch gathering at the overlapped section of a material. The 3-teeth feed dog, when compared with the 4-teeth feed dog, is suited to the sewhg of sharp curves. | Slightly lower the pressure of the presser foot. Throat plate (B1109012F0F) has engraved marker lines and numbers vertically and horizontaly at intervals of 10mm. |
DDL-5550N DDL-5550NA |
|||||
| B1109012F0F | 1.6 | 3 | 2.6 | ||||||||||||
| B1109012G00 | 1.6 | 4 | 2 | B1613012D00 | 1.15 | The feed dog has 4 teeth, but is suited to sewing sharp curves when compared with the other 4-teeth feed dogs. | Slightly lower the pressure of the presser foot. The presser (pair) (D1524555BA0) has a short sole with flexible maneuvering performance and wide open, allowing easier extra thread in a relative manner. |
||||||||
| B1109012i00 | 1.6 | 4 | 2 | B1613012i00 *B1613552000 |
1.15 | Suited to long-sized materials which need to be fed straight. Chain off thread is likely to be made. |
Slightly lower the pressure of the presser foot. A thin needle (#8 to #10) is sulted. Throat plate (B1109012l0F) has engraved marker lines and numbers vertically and holizontally at intervails of 10mm. Throat plate (B1109012l0B) provides higher durability than throat plate (B1109012l00). Throat piate (B1109012l00) is used with regular types of sewing machine. Throat plate (B1109012l0B) is used with the sewing machine with a thread trimmer. |
||||||||
| B1109012i0B | 1.6 | 4 | 2 | ||||||||||||
| B1109012i0F | 1.6 | 4 | 2 | ||||||||||||
| B1109012T00 | 1.6 | 3 | 2.6 | B1613012T00 | 1.5 | B1524012TA0 *B15240120A0 *B15245520A0 *D1524126WA0 *D1524555BA0 *11028156 |
Light eight | Suited to the material which is likely to cause stihch skipphg and puckering. (For tricot) Chain off thread is likely to be made. |
Slightly lower the pressure of the presser foot. A thin needle (#8 to #10) is sulted. Throat plate (B1109012T0B) provides higher durability than throat plate (B1109012T00). Throat piate (B1109012T00) is used with regular types of sewing machine. Throat plate (B1109012T0B) is used with the sewing machine with a thread trimmer. Throat plate (B11090121T0F) has engraved marker lines and numbers vertically and holizontally at intervails of 10mm. |
DDL-5550N DDL-5550NA |
|||||
| B1109012T0B | 1.6 | 3 | 2.6 | ||||||||||||
| B1109012T0F | 1.6 | 3 | 2.6 | ||||||||||||
| B1190543000 | 2.4 | 3 | 2 | B1621543000 | 1.8 | B15115430A0 *B1511543BA0 |
Heavy weight | For sewing heavy-weight materials in general (Denirm and fabric for coats). | Slightly increase the pressure of the presser foot. | DDL-5550N | |||||
| B1109552000 | 1.8 | 4 | 2.05 | B16135552000 *B1613012i00 *B1614552A00 |
1.15 | B15240120A0 *B1524012TA0 *B15245520A0 *D1524126WA0 *D1524555DA0 *11028156 |
Light weight/ Medium weight | Throat plate has engraved marker lines and numbers at intervals of 1/4. | |||||||
| B1109555000 | 1.8*2.7 | 4 | 2.6 | B1613555A00 *B1613555B00 |
2 1.2 |
Medium weight/ Heavy weight | Suited to long-sized materials which need to be fed straight. | ||||||||
| B1109555C00 | 1.6 | 4 | 2 | B1613555C00 | 1.2 | Light eight | Suited to long-sized materials which need to be fed straight. | ||||||||
| B1109555D00 | 1.8*2.5 | 4 | 2.6 | B1613555D00 | 1.5 | Heavy weight | Suited to long-sized materials which need to be fed straight. | Slightly increase the pressure of the presser foot. | |||||||
| B1109555G00 | 1.6 | 6 | 2 | B1613555G00 | 1.15 | B15240120A0 *B1524012TA0 *B15245520A0 *D1524126WA0 *D1524555DA0 *D1524555DAC *11028156 |
Medium weight | Ahigher efficiency of feed is obtained. The material is fed straight. | Please use a stitching pitch at 3mm or less. Presser foot (asm.) (D1524555DBC) has a wider sole, which means it provides a still higher effciency of feed. |
||||||
| B1109555J00 | 2.4 | 6 | 2.3 | B1613555J00 | 1.5 | Medium weight/ Heavy weight | Presser foot (asm.) (D1524555DBC) has a wider sole, which means it provides a still higher effciency of feed. | ||||||||
| B1109555H0B | 2.6 | 3 | 2.6 | B1613555H00 | 1.8 | B1511543BA0 *B15115430A0 |
Heavy weight | For sewhg heavy-weight materials in general. | Slightly increase the pressure of the presser foot. *Throat plate (11074101) has marker lines and numbers on it at a 5mm interval. |
DDL-5550NH | |||||
| 11074101 | 2.6 | 3 | 2.6 | ||||||||||||
| B1109555i0N | 1.6 | 4 | 2 | B1613012i00 | 1.15 | B1524555DAN | Light eight | Suited to the sewig of frictional materials. | Throat plate and presser foot (asm.) have been finished with nidax. | DDL-5550N DDL-5550NA |
|||||
| B1109555R00 | 1.3 | 3 | 2.6 | B1613555R00 | 1.15 | D1524555DA0 *D1524155WA0 *D1524555BA0 |
For sewing light-weight materials in general. | Presser (pair) (D1524155WA0) has a narrower needle groove width at 1mm. A thin needle (#8 to #11) is suited. |
|||||||
| D1109126W00 | 1.2 | 3 | 2.6 | B1613012B00 *B1613012A00 *B1613012A0B |
1.15 1.5 - |
D1524126WA0 *B15240120A0 *B1524012TA0 *B15245520A0 *D1524155WA0 *D1524555DA0 |
Suited to the material which is likely to cause stihch skipphg and puckering. Since the needle hole of the throat plate has grooves, well-tensed seams are promised. |
Slightly lower the pressure of the presser foot. A thin needle (#8 to #10) is sulted. Throat plate (B11090126W0F) has engraved marker lines and numbers vertically and holizontally at intervails of 10mm. Shce the feed dog (D1613155W0D) has long teeth, the material can be fed straight. It is used with the stitch length set to 2mm or less. |
|||||||
| D1109126W0F | 1.2 | 3 | 2.6 | ||||||||||||
| D1109155W00 | 1.3 | 4 | 2 | D1613155W00 *D1613155W0D |
1.15 | Suited to the sewing of extra light weight materials and synthetic fabrics using synthetic thread. Since the needle hole of the throat plate has grooves, well-tensed seams are promised. |
|||||||||
| D1109155W0F | 1.3 | 4 | 2 | ||||||||||||
| D1109555D0i | 1.6 | 4 | 2 | B1613012i00 | 1.15 | D1524555DA0 *B15240120A0 *B1524012TA0 *B15245520A0 *D1524126WA0 |
Light eight | Suited to the material which is likely to cause stihch skipphg and puckering. Throat plate (B11090121D0F) has engraved marker lines and numbers vertically and holizontally at intervails of 10mm. Throat plate (11074002) has engraved marker lines and numbersat intervails of 5mm. |
Slightly lower the pressure of the presser foot. A thin needle (#8 to #10) is sulted. |
DDL-5550N DDL-5550NA |
|||||
| D110955D0F | 1.6 | 4 | 2 | ||||||||||||
| 11074002 | 1.6 | 4 | 2 | ||||||||||||
| D1190555D0W | 1.3 | 4 | 2 | D1613155W00 | 1.15 | ||||||||||
* Replaceable gauge.
