单针平缝机

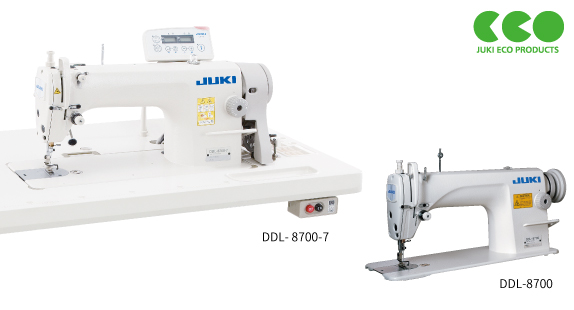

JUKI标准单针自动切线平缝机。
DDL-8700-7配备“新型电子控制箱”和“新型小型伺服马达”,节能效果显著。

产品功能

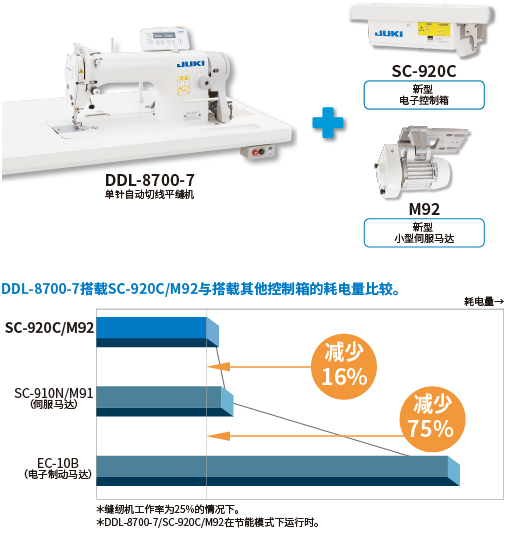

  • 搭载节能模式的新型电子控制箱

    新型电子控制箱SC-920C是最新开发产品。能抗电压波动、噪音和振动。
    首次在缝纫机控制箱中配备节能模式。马达不转时,待机时间的耗电量降低了约25%(相比于SC-910N)。
    此外,DDL-8700-7采用最新节能技术,配置最新小型伺服马达M92,节能又环保,同时提高了生产效率。

  • 生产支持功能

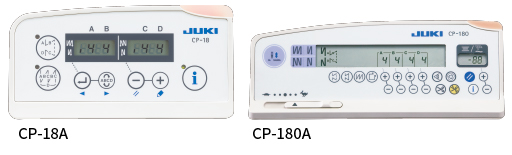

    两种不同的操作面板CP-18A和CP-180A适用于DDL-8700-7。两种操作面板均具备生产支持功能

    生产支持功能实际上由三种不同的功能(六种不同的模式)组成,即产量控制功能、操作测量功能和底线残量计数功能。

    产量控制功能

    目标生产件数显示模式/目标与实际结果差异显示模式

    • 在目标生产件数显示模式下,将显示与工作时间相对应的目标生产件数和实际生产件数。
    • 目标与实际结果差异显示模式下,将显示目标生产件数和实际生产件数之间的差异

    操作测量功能

    缝纫机生产率显示模式/平均加工时间显示模式/平均缝制速度显示模式

    • 在缝纫机生产率显示模式下,显示上一次和本次的平均生产率率。
    • 在平均加工时间显示模式下,显示上一次和本次的平均工序加工时间。
    • 在平均缝制速度显示模式下,显示上一次和本次的累积缝制速度。

    底线残量计数功能

    底线残量显示模式
    底线用完之前将通知操作人员更换梭芯。

基本性能

  • 追求美观的机头设计

    采用最新3D-CAD设计技术,高刚性机头实现了最佳平衡。振动低、噪音小,为操作人员营造了舒适的工作环境。此外,机头前从机臂到机针的空间宽广,更加便于处理面料。
    5,000sti/min的高速性能、卓越的缝制性能、操作简易性和可靠性,该机秉承了JUKI历年产品广受赞誉的品质。(DDL-8700: 5,000sti/min)

  • 缝制机构对缝制面料具有出色对应力

    通过对缝制机构进行周密研究和改进,实现了低张力缝制,可以灵活应对各种面料,缝迹美观,品质如一。

  • 标配小工具安装底座

    机器标配了小工具安装底座,用于将来安装新的辅助零件。安装底座耐用性极高,可确保在频繁更换附件的情况下延长使用寿命。

  • 机器具有操作简便功能,提高了机器的可操作性

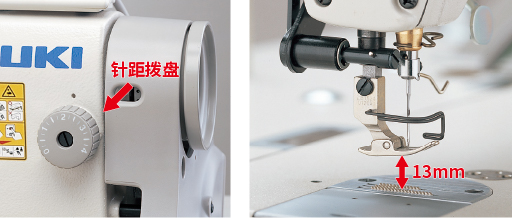

    配备了高提升量(13mm)压脚、轻触式针距拨盘、带刻度线的针板(可用作缝份导向),及其他易于操作的功能,从而减轻了操作人员的工作负担,进一步提高了生产效率。

规格

DDL-8700-7

产品型号 DDL-8700-7 DDL-8700A-7 DDL-8700H-7
用途 中厚料 薄料 厚料
最大缝制速度 5,000sti/min* 4,000sti/min*
最大针距长度 4mm 5mm
针杆行程 30.7mm 35mm
压脚提升量 手动:5.5mm
膝动:13mm
手动:4mm
膝动:9mm
手动:5.5mm
膝动:13mm
机针 DB×1 (#14) #9~#18
134 (Nm90)
DA×1 (#9) #9~#11
134 (Nm65)
DB×1 (#21) #19~#23
134 (Nm130)
送布牙 4行
旋梭 自动供油全回转旋梭
供油方式 自动
供油 JUKI机油 7(等同于ISO VG7)
自动倒缝功能 标准配置
电子控制箱 SC-920C
缝纫机马达 小型伺服马达M92(450W)
电源要求 单相100~240V,三相200~240V
耗电量 320VA
总重 机头:30kg/35kg(带AK),SC-920C:3kg, M92: 3.5kg

*“sti/min”代表“针/分钟”。

DDL-8700

产品型号 DDL-8700 DDL-8700A DDL-8700H
用途 中厚料 薄料 厚料
最大缝制速度 5,500sti/min* 4,000sti/min*
最大针距长度 5mm 4mm 5mm
针杆行程 30.7mm 35mm
压脚提升量 手动:5.5mm
通过膝动:13mm
手动:4mm
通过膝动:9mm
手动:5.5mm
通过膝动:13mm
机针
(出厂时)
DB×1 (#14) #9~#18
134 (Nm90)
DA×1 (#9) #9~#11
134 (Nm65)
DB×1 (#21) #19~#23
134 (Nm130)
送布牙 4行(3行) 3行
旋梭 自动供油全回转旋梭
供油方式 自动
供油 JUKI新型1号Defrix Oil(等同于ISO VG7)
机头重量 28kg

*“sti/min”代表“针/分钟”。

当您下订单时

针位

DDL-8700
DDL-8700-7
DDL-8700A
DDL-8700A-7
DDL-8700H
DDL-8700H-7

Guage THROAT PLATE FEED DOG PRESSER FOOT ASM. Specification Sewing features Remarks Model
Figure
  P/N Needle
hole
Number
of
grooves
Thick P/N Pitch P/N
  B1109012A00 1.9 3 2.6 B1613012A00 *B1613012A0B *B1613012B00 1.5
-
1.15
B1524012A0 *B1524012TA0 *B15245520A0 *D1524126WA0 *D1524555DA0 *11028156 Light weight/ Medium weight For general sewing Throat plate (B1109012A0B) provides higher durability than throat plate (B1109012A00).
Throat plate (B1109012A0F) has engraved marker lines and numbers vertically and horizontaly at intervals of 10mm.
Throat plate (11028008) has engraved marker lines and numbersat intervals of 5mm.
Throat plate (11001708) has grooves on the needle hole section and is effective to achieve well-tensed seam.
Feed dog (B1613012A0B) has teeth made of urethane rubber and effectively prevents damages on the material.
DDL-8700(-7)
  B1109012A0B 1.9 3 2.6
  B1109012A0F 1.9 3 2.6
  11028008 1.9 3 2.6
  11001708 1.9 3 2.6
  B1109012A0C 1.9 3 2.6 B1613012A0C 1.5 Medium weight Since the material ls securely clamped, puckering and uneven material feed are effectively prevened. Use of sliding foot (B1524227AA0) prevents puckerihg and uneven material feed more effectively.
  B1109012A0N 1.9 3 2.6 B1613012A00 *B1613012A0B *B1613012B00 1.5
-
1.15
B1524555DAN Suited to frictional faabrlcs. Throat plate have been finished with nidax.
  B1109012B00 2.2 3 2.6 B15240120A0 *1524012TA0 *B15245520A0 *D1524126WA0 *D1524555DA0 *11028156 Medium weight/ Heavy weight For sewhg heavy weight materials in general. Throat plate (B1109012B0F) has engraved marker lines and numbers vertically and horizontaly at intervals of 10mm.
  B1109012B0F 2.2 3 2.6
  B1109012C00 1.9 4 2.6 B1613012C00 1.5 Medium weight Suited to long-sized materials which need to be fed straight. Throat plate (B1109012C0B) provides higher durability than throat plate (B1109012C00).
Throat plate (B1109012C00) is used with regular types of sewing machine. Throat plate (B1109012C0B) is used with the sewing machine with a thread trimmer.
Throat plate (B1109012C0F) has engraved marker lines and numbers vertically and horizontaly at intervals of 10mm.
Throat plate (11001807) has grooves on the needle hole section and is effective to achieve well tensed seams.
  B1109012C0B 1.9 4 2.6
  B1109012C0F 1.9 4 2.6
  11001807 1.9 4 2.6
  B1109012D00 1.9 4 2 B1613012D00 1.15 The feed dog has 4 teeth, but is suited to sewing sharp curves when compared with the other 4-teeth feed dogs.
  B1109012E00 2.4 3 2.6 B1613012A00 *B1613012B00 1.5 1.15 Heaby weight The needle hole on the throat plate has a recess, which is efective when sewing a material to be sewn with a higher thread tension. Slightly increase the pressure of the presser foot.

  B1109012F00 1.6 3 2.6 B1613012B00 *B1613012A00 1.15 1.5 B15240120A0 *B1524012TA0 *B15245520A0 *D1524126WA0 *D1524555BA0 *D1524555DA0 *11028156 Light weight Efectively prevents stitch gathering at the overlapped section of a material. The 3-teeth feed dog, when compared with the 4-teeth feed dog, is suited to the sewhg of sharp curves. Slightly lower the pressure of the presser foot.
Throat plate (B1109012F0F) has engraved marker lines and numbers vertically and horizontaly at intervals of 10mm.
DDL-8700(-7) DDL-8700A(-7)
  B1109012F0F 1.6 3 2.6
  B1109012G00 1.6 4 2 B1613012D00 1.15 The feed dog has 4 teeth, but is suited to sewing sharp curves when compared with the other 4-teeth feed dogs. Slightly lower the pressure of the presser foot.
The presser (pair)(D1524555BA0) has a short sole with flexible maneuvering performance and wide open, allowing easier extra thread in a relative manner.
  B1109012i00 1.6 4 2 B1613012i00 *B1613552000 1.15 Suited to long-sized materials which need to be fed straight.
Chain off thread is likely to be made.
Slightly lower the pressure of the presser foot.
A thin needle (#8 to #10) is sulted.
Throat plate (B1109012l0F) has engraved marker lines and numbers vertically and holizontally at intervails of 10mm.
Throat plate (B1109012l0B) provides higher durability than throat plate (B1109012l00).
Throat piate (B1109012l00) is used with regular types of sewing machine. Throat plate (B1109012l0B) is used with the sewing machine with a thread trimmer.
  B1109012i0B 1.6 4 2
  B1109012i0F 1.6 4 2
  B1109012T00 1.6 3 2.6 B1613012T00 1.5 B1524012TA0 *B15240120A0 *B15245520A0 *D1524126WA0 *D1524555BA0 *11028156 Light weight Suited to the material which is likely to cause stihch skipphg and puckering. (For tricot)
Chain off thread is likely to be made.
Slightly lower the pressure of the presser foot.
A thin needle (#8 to #10) is sulted.
Throat plate (B1109012T0B) provides higher durability than throat plate (B1109012T00).
Throat piate (B1109012T00) is used with regular types of sewing machine. Throat plate (B1109012T0B) is used with the sewing machine with a thread trimmer.
Throat plate (B11090121T0F) has engraved marker lines and numbers vertically and holizontally at intervails of 10mm.
DDL-8700(-7) DDL-8700A(-7)
  B1109012T0B 1.6 3 2.6
  B1109012T0F 1.6 3 2.6
  B1190543000 2.4 3 2 B1621543000 1.8 B15115430A0 *B1511543BA0 Heaby weight For sewing heavy-weight materials in general (Denirm and fabric for coats). Slightly increase the pressure of the presser foot. DDL-8700(-7)
  B1109552000 1.8 4 2.05 B16135552000 *B1613012i00 *B1614552A00 1.15 B15240120A0 *B1524012TA0 *B15245520A0 *D1524126WA0 *D1524555DA0 *11028156 Light weight/ Medium weight Throat plate has engraved marker lines and numbers at intervals of 1/4.
  B1109555000 1.8*2.7 4 2.6 B1613555A00 *B1613555B00 2
1.2
Medium weight/ Heavy weight Suited to long-sized materials which need to be fed straight.
  B1109555C00 1.6 4 2 B1613555C00 1.2 Light weight Suited to long-sized materials which need to be fed straight.
  B1109555D00 1.8*2.5 4 2.6 B1613555D00 1.5 Heaby weight Suited to long-sized materials which need to be fed straight. Slightly increase the pressure of the presser foot.
  B1109555G00 1.6 6 2 B1613555G00 1.15 B15240120A0 *B1524012TA0 *B15245520A0 *D1524126WA0 *D1524555DA0 *D1524555DAC *11028156 Medium weight Ahigher efficiency of feed is obtained. The material is fed straight. Please use a stitching pitch at 3mm or less.
Presser foot (asm.)(D1524555DBC) has a wider sole, which means it provides a still higher effciency of feed.
  B1109555J00 2.4 6 2.3 B1613555J00 1.5 Medium weight/ Heavy weight Presser foot (asm.)(D1524555DBC) has a wider sole, which means it provides a still higher effciency of feed.
  B1109555H0B 2.6 3 2.6 B1613555H00 1.8 B1511543BA0 *B15115430A0 Heavy weight For sewhg heavy-weight materials in general. Slightly increase the pressure of the presser foot.
*Throat plate (11074101) has marker lines and numbers on it at a 5mm interval.
DDL-8700H(-7)
  11074101 2.6 3 2.6
  B1109555i0N 1.6 4 2 B1613012i00 1.15 B1524555DAN Light weight Suited to the sewig of frictional materials. Throat plate and presser foot (asm.) have been finished with nidax. DDL-8700(-7) DDL-8700A(-7)
  B1109555R00 1.3 3 2.6 B1613555R00 1.15 D1524555DA0 *D1524155WA0 *D1524555BA0 For sewing light-weight materials in general. Presser (pair)(D1524155WA0) has a narrower needle groove width at 1mm.
A thin needle (#8 to #11) is suited.
  D1109126W00 1.2 3 2.6 B1613012B00 *B1613012A00 *B1613012A0B 1.15
1.5
-
D1524126WA0 *B15240120A0 *B1524012TA0 *B15245520A0 *D1524155WA0 *D1524555DA0 Suited to the material which is likely to cause stihch skipphg and puckering.
Since the needle hole of the throat plate has grooves, well-tensed seams are promised.
Slightly lower the pressure of the presser foot.
A thin needle (#8 to #10) is sulted.
Throat plate (B11090126W0F) has engraved marker lines and numbers vertically and holizontally at intervails of 10mm.
Shce the feed dog (D1613155W0D) has long teeth, the material can be fed straight. It is used with the stitch length set to 2mm or less.
  D1109126W0F 1.2 3 2.6
  D1109155W00 1.3 4 2 D1613155W00 *D1613155W0D 1.15 Suited to the sewing of extra light weight materials and synthetic fabrics using synthetic thread.
Since the needle hole of the throat plate has grooves, well-tensed seams are promised.
  D1109155W0F 1.3 4 2
  D1109555D0i 1.6 4 2 B1613012i00 1.15 D1524555DA0 *B15240120A0 *B1524012TA0 *B15245520A0 *D1524126WA0 Light weight Suited to the material which is likely to cause stihch skipphg and puckering.
Throat plate (B11090121D0F) has engraved marker lines and numbers vertically and holizontally at intervails of 10mm.
Throat plate (11074002) has engraved marker lines and numbersat intervails of 5mm.
Slightly lower the pressure of the presser foot.
A thin needle (#8 to #10) is sulted.
DDL-8700(-7) DDL-8700A(-7)
  D110955D0F 1.6 4 2
  11074002 1.6 4 2
  D1190555D0W 1.3 4 2 D1613155W00 1.15
 * Replaceable gauge.
