产品功能

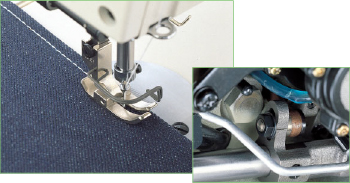

缝制机构对缝制面料具有出色对应力
机头经重新设计,提高了每个部件的性能。低张力缝制能力和针送量调整功能(±15%),避免送布不均匀和面料起皱,提高了对缝制面料变化的应对力。
机头平衡设计和面部坚固结构显著降低了机器运行时的振动和噪音。

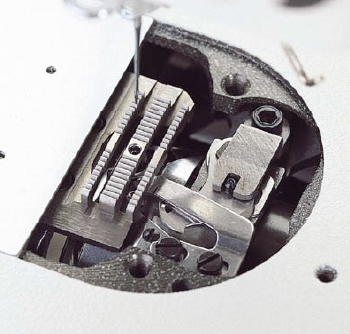

可靠性高的切线机构
DLN-5410N-7(带自动切线装置)运动切刀易于更换,机器维护更简易。
机器的耐用性和可靠性增强
强化了送布组件、供油组件和面部,对针杆面部进行了密封处理。因而增强了机器的耐用性和可靠性,经济效率也显著提高。

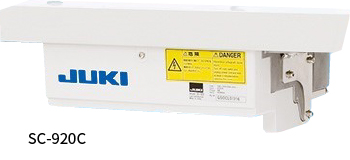

配备节能模式的新型电子控制箱(SC-920C/M92)
新型电子控制箱SC-920C是最新开发产品。能抗电压波动、噪音和振动。
首次在缝纫机控制箱中配备节能模式。
马达不转时,待机时间的耗电量降低了约25 %(相比于SC-910N)。

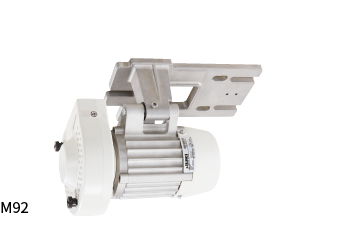

此外,DLN-5410N-7采用最新节能技术,配置最新小型伺服马达M92,节能又环保,同时提高了生产效率。

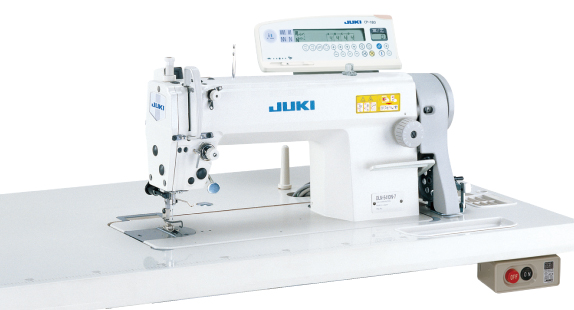

可根据工序选择操作面板(CP-18A、CP-180A)

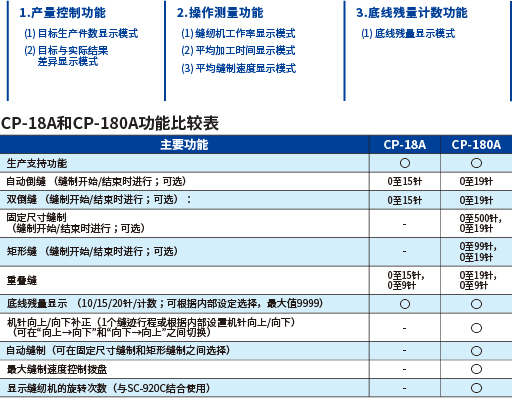

两种不同的操作面板CP-18A和CP-180A适用于DLN- 5410N-7。两个操作面板均具有生产支持功能。
生产支持功能实际上由三种不同的功能组成(六种不同模式)
基本性能

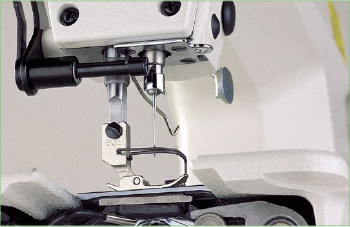

压脚提升量更高

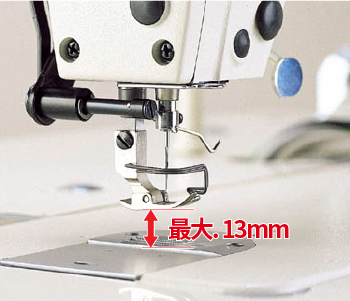

配备了各种装置,使操作人员的疲劳感减轻,舒适度增强。装置包括:脚踏板只需轻踩即可操作。压脚可提升至13mm。
机臂的形状经专门设计,使操作人员能够轻松处理面料。
规格
产品型号 | DLN-5410N | DLN-5410NH | DLN-5410NL |
---|---|---|---|
用途 | 适用于薄料至中厚料 | 用于厚料 | 用于厚料 (长针距类型) |
最大缝制速度 | 5,000sti/min* | 4,000sti/min* | 3,000sti/min* |
最大针距长度 | 4mm | 4.5mm | 6mm |
针杆行程 | 30.7m | ||
压脚提升量 | 手动:5.5mm,膝动:13mm | ||
机针(出厂时) | DB×1(#14)适用于JE:134 (Nm90) | DB×1(#21)适用于JE:134 (Nm130) | DB×1(#21)适用于JE:134 (Nm130) |
旋梭 | 自动供油全回转旋梭 | ||
供油方式 | 自动 | ||
供油 | JUKI新型1号Defrix Oil(等同于ISO VG7) |
产品型号 | DLN-5410N-7 | DLN-5410NH-7 | DLN-5410NJ-7 |
---|---|---|---|
用途 | 适用于薄料至中厚料 | 用于厚料 | 适用于牛仔布 |
最大缝制速度 | 5,000sti/min* | 4,000sti/min* | |
最大针距长度 | 4mm | 4.5mm | |
针杆行程 | 30.7mm | 33mm | |
压脚提升量 | 手动:5.5mm,膝动:13mm | ||
机针(出厂时) | DB×1(#14)适用于JE:134 (Nm90) | DB×1(#21)适用于JE:134 (Nm130) | DB×1(#21)适用于JE:134 (Nm130) |
旋梭 | 自动供油全回转旋梭 | 自动供油双容全回转旋梭 | |
线 | - | #30~#8, B46~B92, Nm60/3~30/3 | |
供油方式 | 自动 | ||
供油 | JUKI新型1号Defrix Oil(等同于ISO VG7) | ||
自动倒缝功能 | 标准配置 | ||
电源要求 | 单相100~120V、200~240V,三相200~240V | ||
耗电量 | 650VA | ||
总重 | 83kg |
*“sti/min”代表“针/分钟”

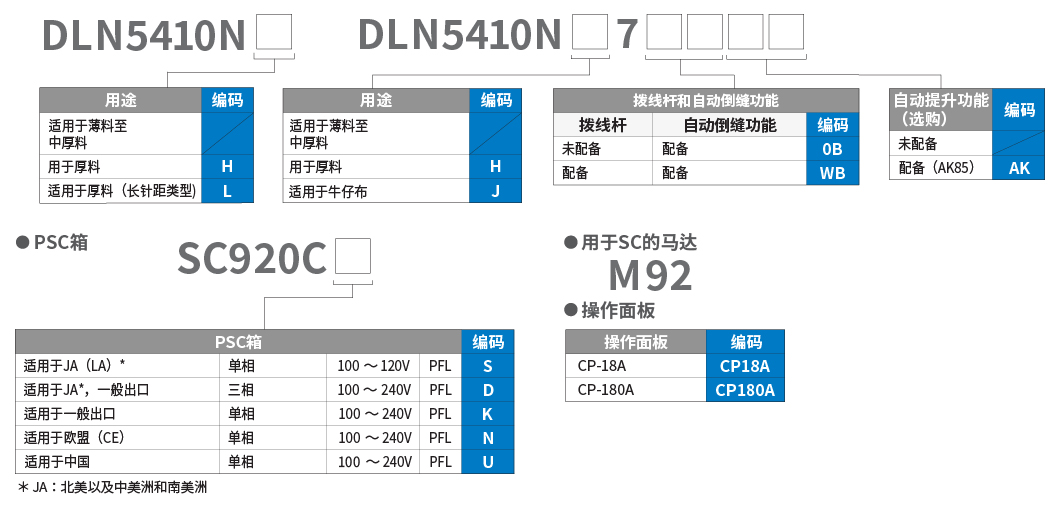

当您下订单时
针位
DLN-5410N
Guage | FEED DOG | THROAT PLATE | PRESSER FOOT | Features in sewing | |||||
---|---|---|---|---|---|---|---|---|---|
Figure | |||||||||
Application | P/N | Needle hole |
Pitch | Remarks | P/N | No. of grooves |
Thickness | P/N | |
Standard For light to midium weight matelials |
D1609415B00 | 1.9 | 1.15 | 11300308 | 3 | 3.2 | D1524415BAA | Suited to the sewing of the material which is likely to cause slip-off of needle thread and stitch skipping. Pressure of the presser foot: Standard value. Needle: Standarad (#12~#18) Throat plate (11300308) provides higher durability than throat plate (B1109041F0B). |
|
For light to midium weight matelials | B1609041B00 | 1.9 | 1.15 | B1109041B00 | 2 | 3.2 | B1524041A00 (B1524041EA0) (B15244120A0) (D1524415BAA) |
Suited to the sewing of curves and sharp curves. Widely used for overedging. Pressure of the presser foot: Standard value. Needle: Standarad (#12~#18) |
|
For midium weight matelials | B1609041C00 | 1.9 | 1.25 | Provided with a thread path groove. | B1109041C00 | 1 | 3.2 | B15244120A0 (D1524415BAA) |
Suited to the sewing of sharp curves. Suited to the sewing which requires to be carried out using a binder in combmation wlth the gauge set. Widely used for overedging. Pressure of the presser foot: Standard value, or a slightly lower value. Needle: Standarad (#12~#18) |
For light to midium weight matelials | B1609041D00 | 1.9 | 1.15 | Provided with a thread path groove. | B1109041D00 | 1 | 3.2 | B15244120A0 (D1524415BAA) |
When compared with B1609041C00, straight-feeding capability is improved. Suited to the sewlng of comparatlvely resilient materials. Widely used for overedging. Pressure of the presser foot: Standard value, or a slightly lower value. Needle: Standarad (#12~#18) |
For light to midium weight matelials | B1609041F00 | 1.9 | 1.15 | Provided with a thread path groove. | B1109041F00 | 3 | 3.2 | B15244120A0 (D1524415BAA) |
Pressure of the presser foot: Standard value Needle: Standarad (#12~#18) |
For light weight matelials | B1609415B00 | 1.6 | 1.15 | B1109415B00 | 3 | 2.6 | B15244120A0 (D1524415BAA) |
Suited to the sewing of the materiai that needs to be fed forward at the start of sewing. Suited to the sewing process where the overlapped section of the material shouid be sewn at the end of sewing or the material which is iikely to cause stitch skipping. Stitch length should not exceed 2.5 mm. Pressure of the presser foot: Slightly lower value. Needle: Thin (#8~#11) |
|
For extra light weight materials (JE) | B1609415C00 | 1.3 | 1.15 | B1109415B00 | 3 | 2.6 | B15244120A0 (D1524415BAA) |
Suited to the sewing of the materiai that needs to be fed forward at the start of sewing. Suited to the sewing process where the overlapped section of the material shouid be sewn at the end of sewing or the material which is iikely to cause stitch skipping. Stitch length should not exceed 2.5 mm. Pressure of the presser foot: Slightly lower value. Needle: Thin (#7~#10) |
|
For light weight materials for attaching collar bands | B1609415E00 | 1.6*2 | 1.15/1.2 | B1109415E00 | 2 | 2 | B15244120A0 | Stitch length should not exceed 2.5 mm. Needle: Thin (#8~#11) |
DLN-5410NH
Guage | FEED DOG | THROAT PLATE | PRESSER FOOT | Features in sewing | |||||
---|---|---|---|---|---|---|---|---|---|
Figure | |||||||||
Application | P/N | Needle hole |
Pitch | Remarks | P/N | No. of grooves |
Thickness | P/N | |
Standard For heavy weight materials | 11322203 | 2.4 | 1.7 | Provided with a thread path groove. | B1109415H0B | 3 | 3.2 | B1524041EA0 | Pressure of the presser foot: Slightly increase. Needle: Thick (#19~#23) |
For medium weight materials (for JE) | B1609415D00 | 2*3.5 | 1.7 | Provided with a thread path groove. | B1109041A00 | 2 | 3.2 | B1524041AA0 | Suited to the sewmg of sharp curves. Widely used for overedging. Pressure of the presser foot: Slightly increase. Needle: (#14~#18) |
For medium weight materials (for Hong Kong) | B1609415G00 | 1.9 | 1.7 | Provided with a thread path groove. | B1109415G00 | 5 | 3.2 | B15244120A0 | Efficlency of feed is increased. Needle: (#14~#18) |
For heavy weight materials | B1509415H00 | 2.4 | 1.7 | Provided with a thread path groove. | B1109415H0B | 3 | 3.2 | B1524041EA0 | Pressure of the presser foot: Slightly increase. Needle: Thick (#19~#23) |
For extra heavy weight materials | B1609415H0A | 2.4 | 2 | Provided with a thread path groove. | B1109415H0B | 3 | 3.2 | B1524041EA0 | Pressure of the presser foot: Slightly increase. Needle: Thick (#19~#23) |
For medium weight materials | B1609041A00 | 1.9 | 1.7 | Provided with a thread path groove. | B1109041A00 | 2 | 3.2 | B1524041AA0 | Suited to the sewmg of sharp curves. Widely used for overedging. Pressure of the presser foot: Slightly increase. Needle: (#14~#18) |
For medium weight materials | B1609041E00 | 1.9 | 1.7 | Provided with a thread path groove. | B1109041E00 | 3 | 3.2 | B1524041EA0 | Pressure of the presser foot: Slightly increase. Needle: Standard (#12~#18) |
DLN-5410NL
Guage | FEED DOG | THROAT PLATE | PRESSER FOOT | Features in sewing | |||||
---|---|---|---|---|---|---|---|---|---|
Figure | |||||||||
Application | P/N | Needle hole |
Pitch | Remarks | P/N | No. of grooves |
Thickness | P/N | |
Standard For heavy weight materials |
11322203 | 2.4 | 1.7 | Provided with a thread path groove. | B1109415H0B | 3 | 3.2 | B1524415LA0 | Pressure of the presser foot: Slightly increase. Needle: Standard (#19~#23) Stitch length: should not exceed 6mm. |
For extra heavy weight materials | B1609415L00 | 2.4*3.4 | 1.7 | Provided with a thread path groove. | B1109415H0B | 3 | 3.2 | B1524415LA0 | Pressure of the presser foot: Slightly increase. Needle: Standard (#19~#23) Stitch length: should not exceed 6mm. |
DLN-5410N-7
Guage | FEED DOG | THROAT PLATE | PRESSER FOOT | Features in sewing | |||||
---|---|---|---|---|---|---|---|---|---|
Figure | |||||||||
Application | P/N | Needle hole |
Pitch | Remarks | P/N | No. of grooves |
Thickness | P/N | |
Standard For light to medium weight materials |
D1609415B00 | 1.9 | 1.15 | 11300308 | 3 | 3.2 | D1524415BAA | Suited to the sewing of the material which is likely to cause slip-off of needle thread and stitch skipping. Pressure of the presser foot: Standard value. Needle: Standarad (#12~#18) Throat plate (11300308) provides higher durability than throat plate (B1109041 FOB). |
|
For light weight materials, ASAHI type | B1609415A00 | 1.6 | 1.15 | Provided with a thread path groove. | B1109415B0A | 3 | 2.6 | B15244120A0 | Needle: Thin (#8~#11) |
For light to medium weight materials | B1609041F00 | 1.9 | 1.15 | Provided with a thread path groove. | B1109041F0B | 3 | 3.2 | D1524415BAA | Pressure of the presser foot: Standard value Needle: Standarad (#12~#18) |
For light to medium weight materials | D1609415B00 | 1.9 | 1.15 | B1109041F0B | 3 | 3.2 | D1524415BAA (B15244120A0) |
Pressure of the presser foot: Standard value Needle: Standarad (#12~#18) Throat plate (B1109041F0B) provides higher durability than throat plate (B1109041F00). |
|
For extra light weight materials | D1609415B0A | 1.2 | 1.15 | 11300308 | 3 | 3.2 | D1524415BAB | Needle: Thin (#7~#10) |
DLN-5410NH-7
DLN-5410NJ-7
Guage | FEED DOG | THROAT PLATE | PRESSER FOOT | Features in sewing | |||||
---|---|---|---|---|---|---|---|---|---|
Figure | |||||||||
Application | P/N | Needle hole |
Pitch | Remarks | P/N | No. of grooves |
Thickness | P/N | |
Standard For heavy weight materials |
11322203 | 2.4 | 1.7 | Provided with a thread path groove. | B1109415H0B | 3 | 3.2 | B152404EA0 | Pressure of the presser foot: Slightly increase. Needle: Thick (#19~#23) |
For heavy weight materials | 11321908 | 2*2.9 | 2 | A slot shaped needle hole | B1109415H0B | 3 | 3.2 | B1524041EA0 | Pressure of the presser foot: Slightly increase. Needle: Thick (#19~#23) |
For extra heavy weight materials | 11322005 | 2.4*3.4 | 1.7 | Provided with a thread path groove. A slot shaped needle hole | B1109415H0B | 3 | 3.2 | B1524041EA0 | Effective when sewing the material which needs highlu tensed seams. Pressure of the presser foot: Slightly increase. Needle: Thick (#19~#23) |
For heavy weight materials | 11322104 | 2 | 1.7 | B1109415H0B | 3 | 3.2 | B1524041EA0 | Pressure of the presser foot: Slightly increase. Needle: Thick (#19~#23) |
|
For extra heavy weight materials | D1609415B0H | 2.4*3.4 | 1.7 | Provided with a thread path groove. A slot shaped needle hole | B1109415H0B | 3 | 3.2 | B1524041EA0 | Effective when sewing the material which needs highlu tensed seams. Pressure of the presser foot: Slightly increase. Needle: Thick (#19~#23) |
For heavy weight materials | D1609415D0H | 2*2.9 | 2 | A slot shaped needle hole | D1109415D0H | 3 | 3.2 | B1524041EA0 | Pressure of the presser foot: Slightly increase. Needle: Thick (#19~#23) |
