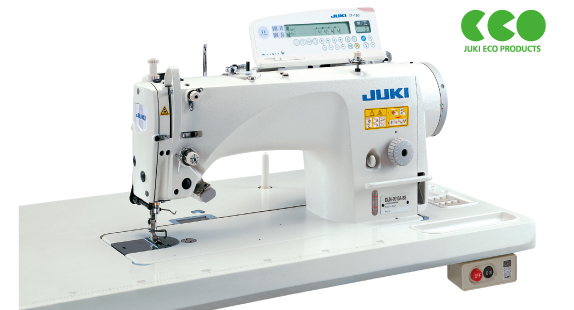

产品功能
该机器配备高度可靠的针送布机构
-
针送布机构的高效送布率,确保准确的缝距(针距长度),并能防止上布发生缝制错位。
改进了下送布轨迹,使之与针送布运动相匹配,即使用于缝制光滑和难传送的面料或处理有难度的工序时,也不会产生缝迹打褶,从而实现美观缝制效果。
-
针送布机构为“干式”,即无需供油。机器结构可靠性强,可避免漏油现象。
面部仅需微量机油,可防止机油泄漏。
-
通过简单的调整和零件更换,可以将针送布轻松切换为下送布。对于希望根据用途和工序将机器用作普通下送布机型的用户,这是非常有用的功能。
-

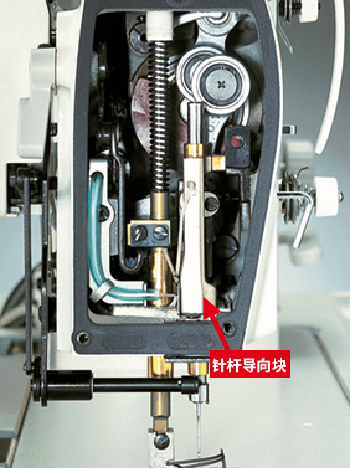

无需使用油底壳
无油底壳结构提供了清洁的工作环境-
无需配置油底壳,旋梭和针杆仅需微量机油,有助于营造清洁的工作环境。
-
节省了拆卸膝动提升装置和机罩的时间,免除了由此产生的麻烦。清洁和维护时可以倾斜机头,而无需拆卸膝动提升装置和机罩。
-

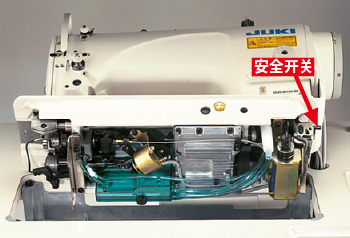

即使在电源打开的情况下倾斜机头,安全开关也会关闭机器。机头倾斜时,即使踩下脚踏板,机器也不会运转。
-
具备易于操作的多种功能,可操作性强
配备节能模式的新型电子控制箱(SC-920A)

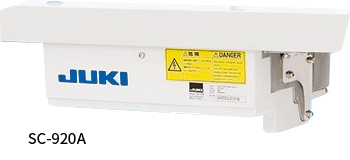

新开发的新型电子控制箱SC-920A具有节能模式。是首款为缝纫机提供节能模式的电子控制箱。马达停机时,待机耗电量降低了约20%。
可根据工序选择操作面板(CP-18A、CP-180A)

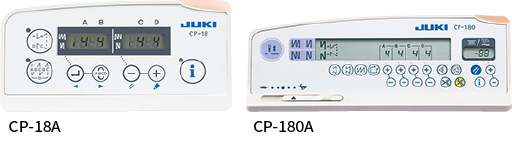

两种不同的操作面板CP-18A和CP-180A适用于DLN-9010A。两个操作面板均具有生产支持功能。

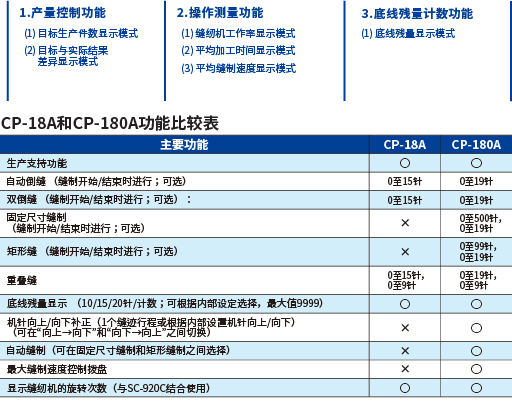

生产支持功能实际上由三种不同的功能组成(六种不同模式)

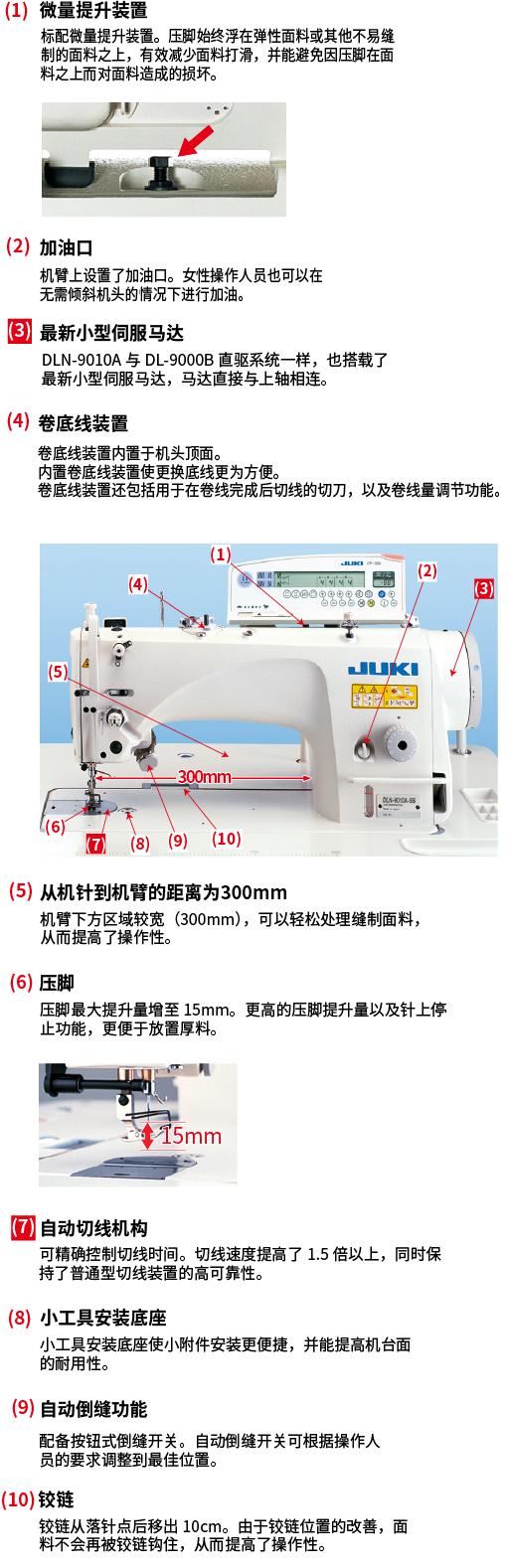

规格
产品型号 | DLN-9010A-SS | DLN-9010A-SH |
---|---|---|
用途 | 适用于薄料至中厚料 | 适用于厚料 |
最大缝制速度 | 5,000sti/min* | 4,000sti/min* |
最大针距长度 | 4.5mm*1 | |
针杆行程 | 33mm | |
压脚提升量 | 手动:5.5mm,膝动:15mm(最大),自动:10mm | |
机针(出厂时) | DB×1(#11)#9~#18 适用于JE:134(Nm90)Nm65~Nm110 |
DB×1(#21)#20~#23 适用于JE:134(Nm130)Nm120~Nm160 |
旋梭 | 自动供油全回转旋梭 | |
供油方式 | 对针杆和旋梭进行微量供油 | |
供油 | JUKI新型1号Defrix Oil(等同于ISO VG7) | |
从机针到机臂的距离 | 300mm | |
机台尺寸 | 517mm×178mm | |
卷底线装置 | 内置机头 | |
微量提升螺钉 | 标准配置 | |
机头驱动 | 直接连接上轴的小型交流伺服马达(直驱系统) | |
自动倒缝功能 | 标配(内置电磁型) | |
电源要求/耗电量 | 单相100~120V、200~240V,三相200~240V/310VA | |
总重 | 83.5kg |
*1 在最大针距长度超过3.5mm的情况下,缝制速度不超过4,000sti/min。
*“sti/min”代表“针/分钟”。

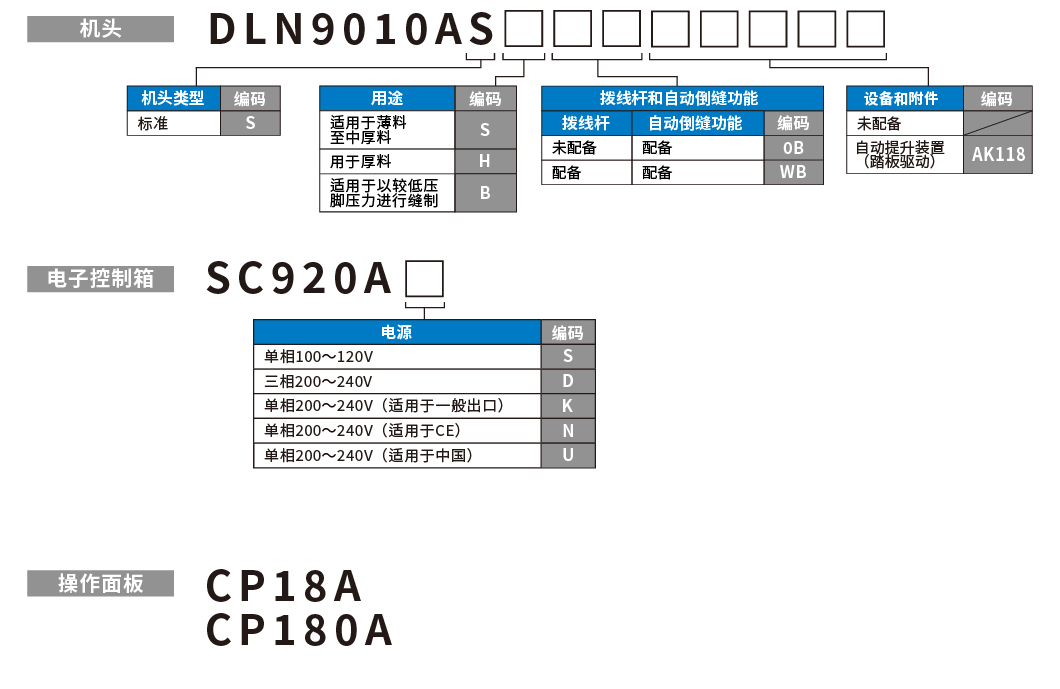

当您下订单时
针位
DLN-9010A-SS
Guage | FEED DOG | THROAT PLATE | PRESSER FOOT | Features in sewing | |||||
---|---|---|---|---|---|---|---|---|---|
Figure | |||||||||
Application | P/N | Needle hole | Pitch | Remarks | P/N | No. of grooves |
Thickness | P/N | |
Standard For light to midium weight matelials |
D1609415B00 | 1.9 | 1.15 | 11300308 | 3 | 3.2 | D1524415BAA | Suited to the sewing of the material which is likely to cause slip-off of needle thread and stitch skipping. Pressure of the presser foot: Standard value. Needle: Standarad (#12~#18) Throat plate (11300308) provides higher durability than throat plate (B1109041F0B). |
|
For light to midium weight matelials | B1609041B00 | 1.9 | 1.15 | B1109041B00 | 2 | 3.2 | B1524041A00 (B1524041EA0) (B15244120A0) (D1524415BAA) |
Suited to the sewing of curves and sharp curves. Widely used for overedging. Pressure of the presser foot: Standard value. Needle: Standarad (#12~#18) |
|
For midium weight matelials | B1609041C00 | 1.9 | 1.25 | Provided with a thread path groove | B1109041C00 | 1 | 3.2 | B15244120A0 (D1524415BAA) |
Suited to the sewing of sharp curves. Suited to the sewing which requires to be carried out using a binder in combmation wlth the gauge set. Widely used for overedging. Pressure of the presser foot: Standard value, or a slightly lower value. Needle: Standarad (#12~#18) |
For light to midium weight matelials | B1609041D00 | 1.9 | 1.15 | Provided with a thread path groove | B1109041D00 | 1 | 3.2 | B15244120A0 (D1524415BAA) |
When compared with B1609041C00, straight-feeding capability is improved. Suited to the sewlng of comparatlvely resilient materials. Widely used for overedging. Pressure of the presser foot: Standard value, or a slightly lower value. Needle: Standarad (#12~#18) |
For light to midium weight matelials | B1609041F00 | 1.9 | 1.15 | Provided with a thread path groove | B1109041F00 | 3 | 3.2 | B15244120A0 (D1524415BAA) |
Pressure of the presser foot: Standard value Needle: Standard (#12~#18) |
DLN-9010A-SH
Guage | FEED DOG | THROAT PLATE | PRESSER FOOT | Features in sewing | |||||
---|---|---|---|---|---|---|---|---|---|
Figure | |||||||||
Application | P/N | Needle hole | Pitch | Remarks | P/N | No. of grooves |
Thickness | P/N | |
Standard For heavy weight materials | 11322203 | 2.4 | 1.7 | Provided with a thread path groove | B1109415H0B | 3 | 3.2 | B152404EA0 | Pressure of the presser foot: Slightly increase. Needle: Thick (#19~#23) |
For heavy weight materials | 11321908 | 2*2.9 | 2 | A slot shaped needle hole | B1109415H0B | 3 | 3.2 | B1524041EA0 | Pressure of the presser foot: Slightly increase. Needle: Thick (#19~#23) |
For extra heavy weight materials | 11322005 | 2.4*3.4 | 1.7 | Provided with a thread path groove A slot shaped needle hole | B1109415H0B | 3 | 3.2 | B1524041EA0 | Effective when sewing the material which needs highlu tensed seams. Pressure of the presser foot: Slightly increase. Needle: Thick (#19~#23) |
For heavy weight materials | 11322104 | 2 | 1.7 | B1109415H0B | 3 | 3.2 | B1524041EA0 | Pressure of the presser foot: Slightly increase. Needle: Thick (#19~#23) |
|
For extra heavy weight materials | D1609415B0H | 2.4*3.4 | 1.7 | Provided with a thread path groove A slot shaped needle hole | B1109415H0B | 3 | 3.2 | B1524041EA0 | Effective when sewing the material which needs highlu tensed seams. Pressure of the presser foot: Slightly increase. Needle: Thick (#19~#23) |
For heavy weight materials | D1609415D0H | 2*2.9 | 2 | A slot shaped needle hole | D1109415D0H | 3 | 3.2 | B1524041EA0 | Pressure of the presser foot: Slightly increase. Needle: Thick (#19~#23) |
