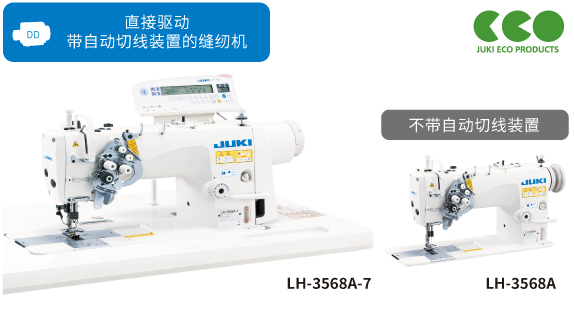

半干机头双针平缝机

LH-3500A系列经改进后有了巨大提升。采用直驱机构、半干机头、新型夹线装置，以及改良的供油系统等，是性能得到提升的尖端双针缝纫机。

产品功能

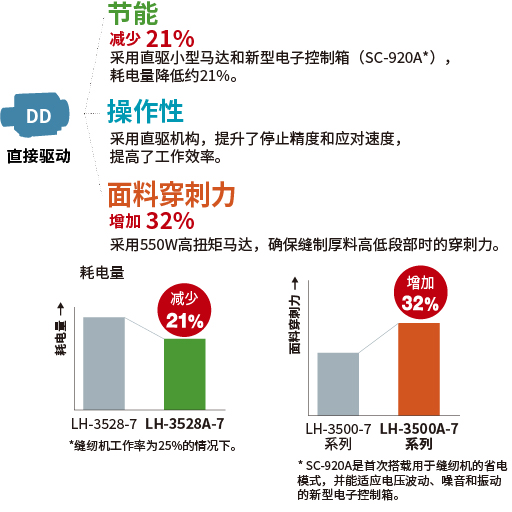

  • 采用直驱机构，更节能，操作性强，增强了机针对面料的穿刺力

  • LH-3500A系列全机型均配置半干式机头JUKI独家提供

    LH-3500A系列全机型均采用半干式机头，能消除面部（针杆部）的油渍污染。

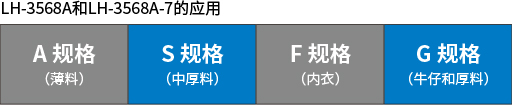

  • 各种机型以应对各类面料

    根据薄料到厚料的各种产品，选择最适合的规则。

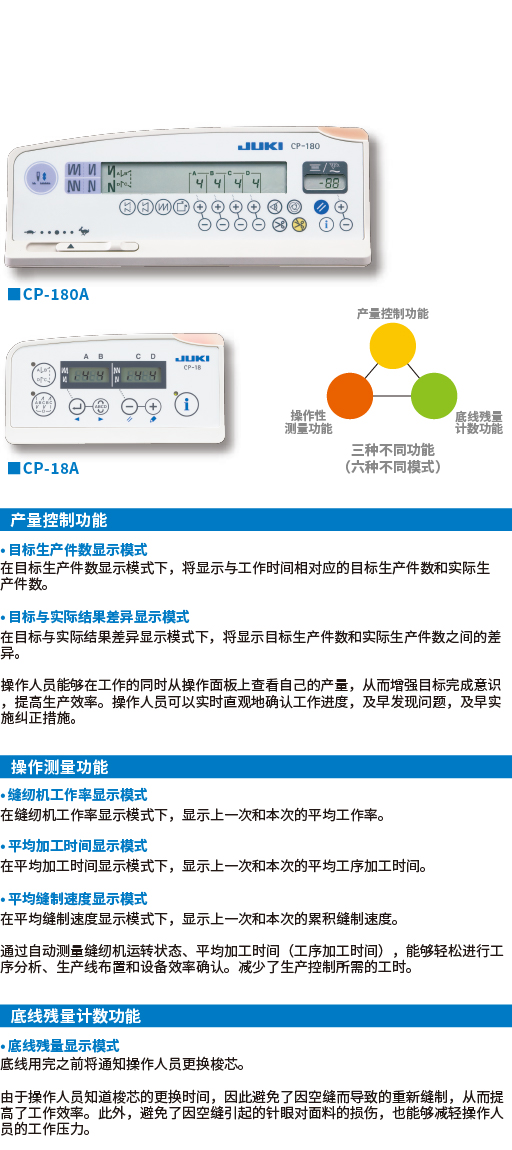

  • 生产支持功能

    操作面板CP-18A和CP-180A具备生产支持功能

    生产支持功能实际上由三种不同的功能（六种不同的模式）组成，即产量控制功能、操作测量功能和底线残量计数功能。各功能的生产支持作用各不相同。可以根据需要选择适当的功能（模式）。
    参数设定可以在顶部的操作面板上进行，有助于减轻操作人员变更设定的负担。

基本性能

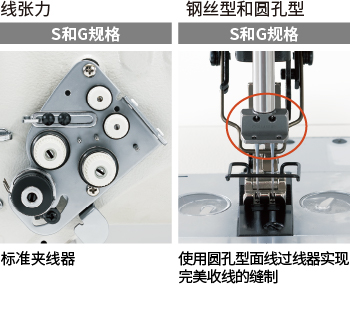

  • 根据缝制规格实现最合适的线张力JUKI独家提供

    两种类型的夹线器可供选择

    根据机型采用两种不同的夹线机构。S和G规格，缝制范围大，即使使用粗线也能实现完美收线。

    钢丝型和圆孔型面线过线器

    根据不同的机型，开发了钢丝型和圆孔型两种面线过线器（夹线器）。采用圆孔型面线过线器的S和G规格，对应需要完美收线的面料。此外，G规格标配引导压脚，使压线工序更有效。

  • 切线机构可靠性强

    经改进的直动式切线装置，能精准切线。即使是粗线，也能准确无误地剪切面线和底线。此外，提高了切线装置的底线张力。

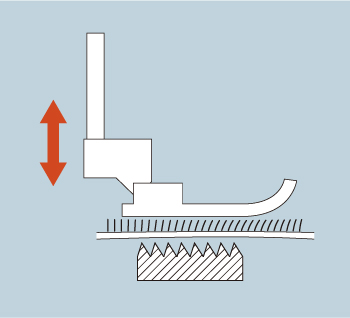

  • 有益于面料的微量提升机构

    通过调节压脚提升杆的偏心销，能微量提升压脚。缝制毛料和弹性面料时，轻轻抬起压脚可减轻面料的负荷。面料处理更容易，缝制时不会破坏面料原有的质感。

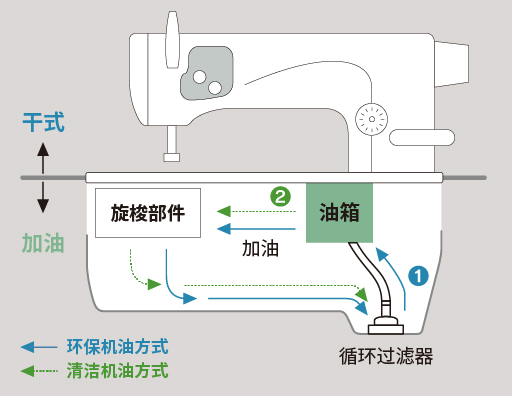

  • 两种新供油机构可选JUKI独家提供

    环保机油方式（循环式）

    从旋梭周边滴落到底盘中的机油，过滤掉灰尘和污垢后，返回油箱。这样可以省却供油工作，降低油耗。

    清洁机油方式

    从旋梭周边滴落到底盘的机油，不返回到油箱，始终向旋梭供应干净的机油。

    *供油方法可以根据需要进行切换。

规格

产品型号 LH-3568A-S LH-3568A-G
用途 中厚料 牛仔和厚料

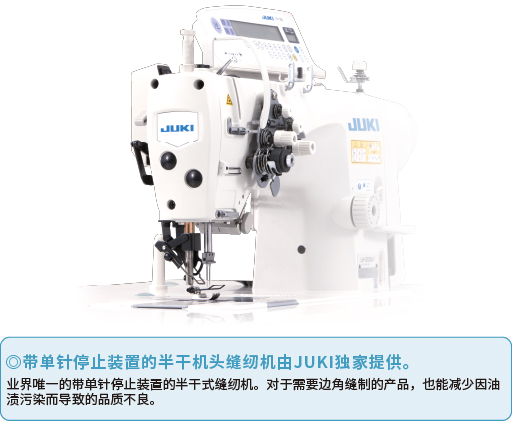

单针停止装置 标准配置
旋梭 垂直轴标准旋梭
供油方式 半干式/旋梭部位：微量供油（油箱式）
最大缝制速度 3,000sti/min*
机针到机臂的空间 120mm（高）×266mm（宽）×87mm（颚部高度）
送布系统 针送布
最大针距长度 5mm
针杆行程 33.4mm
挑线杆 滑动型
夹线装置 标准规格
卷线装置 内置机头
压脚提升量 7mm（手动式），13mm（膝动式）
供油方法 环保机油方式（循环式），清洁机油方式
油箱容量 280cm³
供油 JUKI新型1号Defrix Oil（等同于ISO VG7）
机针 DP×5 (#14)
#9~#16		 DP×5 (#21)
#16~#23
包装外形尺寸（mm） LH-3568A：718mm（高）× 341mm（宽）× 744mm（长）
LH-3568A-7：768mm（高）× 341mm（宽）× 744mm（长）
机头重量（包括包装） LH-3568A: 48kg
LH-3568A-7：61kg（带AK：63kg）

*“sti/min”代表“针/分钟”。

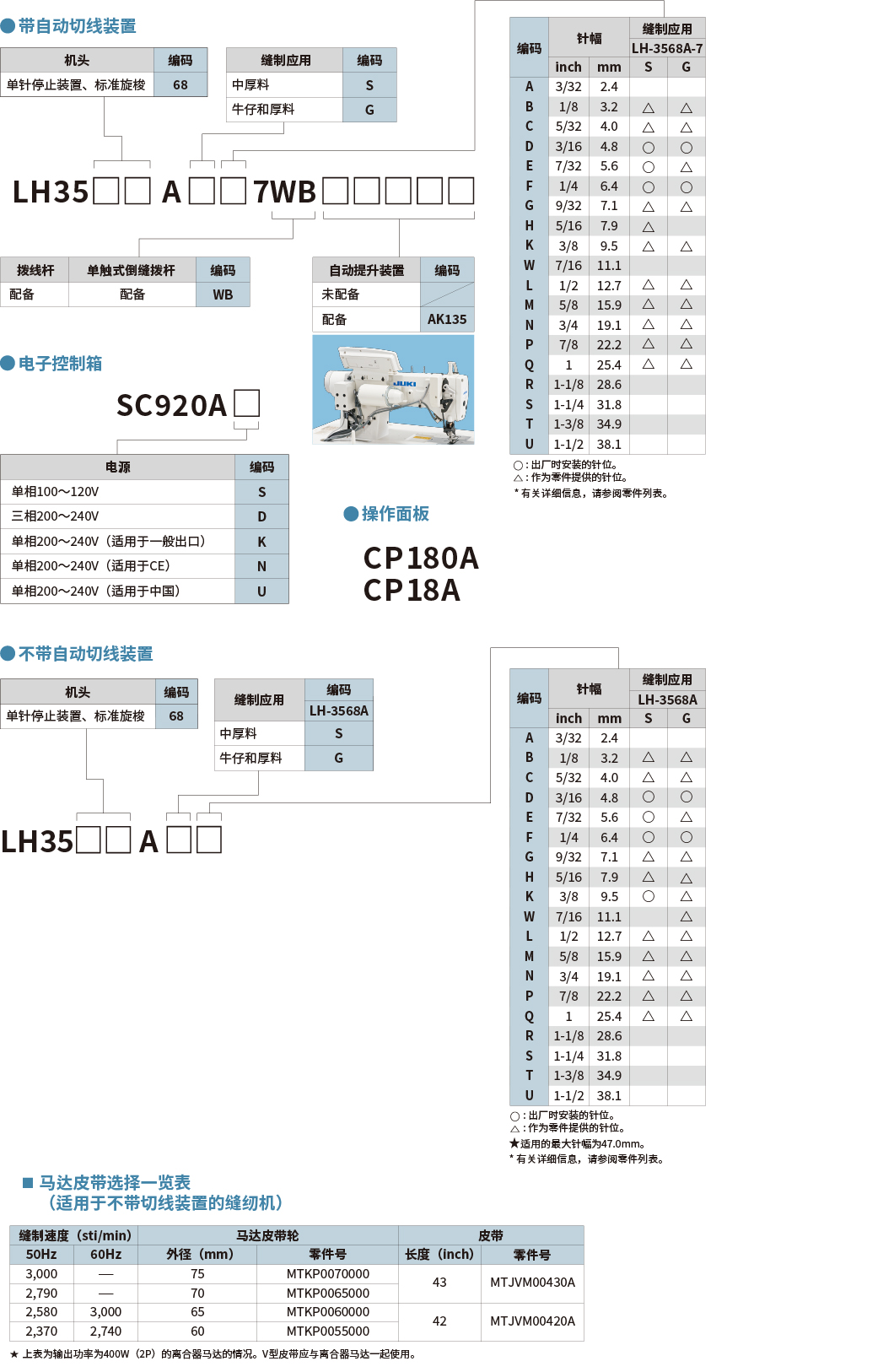

当您下订单时

针位

LH-3568A-S

Guage NEEDLE CLAMP ASM._LEFT NEEDLE CLAMP ASM._RIGHT NEEDLE CLAMP ASM._LEFT NEEDLE CLAMP ASM._RIGHT
Figure
Needle width P/N P/N P/N P/N
Code inch mm
B 1/8 3.2 40035761 40035771 B1402528BA0A B1402528BA0A
C 5/32 4.0 40035762 40035772 B1402528CA0A B1402528CA0A
D 3/16 4.8 B1402528DALA B1402528DARA B1402528DALA B1402528DARA
E 7/32 5.6 B1402528EAL B1402528EAR B1402528EAL B1402528EAR
F 1/4 6.4 B1402528FALA B1402528FARA B1402528FALA B1402528FARA
G 9/32 7.1 40035765 40035775 B1402528GAL B1402528GAR
H 5/16 7.9 40035766 40035776 B1402528HALA B1402528HARA
K 3/8 9.5 B1402528KALA B1402528KARA B1402528KALA B1402528KARA
L 1/2 12.7 40035768 40035778 B1402528LAL B1402528LAR
M 5/8 15.9 40035769 40035779 B1402528MAL B1402528MAR
N 3/4 19.1 40035770 40035780 B1402528NAL B1402528NAR
P 7/8 22.2 40071917 40071919 B1402528PAL B1402528PAR
Q 1 25.4 40071921 40071923 B1402528QAL B1402528QAR
Remarks Option( Wire type) For DP5 Option(Wire type)For DP5 Hole type For DP5 Hole type For DP5
Guage NEEDLE CLAMP ASM._LEFT NEEDLE CLAMP ASM._RIGHT NEEDLE CLAMP ASM._LEFT NEEDLE CLAMP ASM._RIGHT
Figure
Needle width P/N P/N P/N P/N
Code inch mm
B 1/8 3.2 40035877 40035878 B1402526BA0A B1402526BA0A
C 5/32 4.0 40026063 40026084 B1402526CA0A B1402526CA0A
D 3/16 4.8 40026065 40026086 B1402526DALA B1402526DARA
E 7/32 5.6 40026067 40026088 - 10228567
F 1/4 6.4 40026069 40026090 B1402526FALA B1402526FARA
G 9/32 7.1 40026070 40026091 B1402526GALA B1402526GARA
H 5/16 7.9 40026072 40026093 B1402526HALA B1402526HARA
K 3/8 9.5 40026074 40026095 B1402526KALA B1402526KARA
L 1/2 12.7 40026076 40026097 B1402526LALA B1402526LARA
M 5/8 15.9 40026078 40026099 10228856 10228864
N 3/4 19.1 40026080 40026101 10228955 10228963
Q 1 25.4 40026082 40026103 10229151 10229169
Remarks Option(Wire type) For DP17 Option(Wire type) For DP17 Option(Hole type) For DP17 Option(Hole type) For DP17
Guage THROAT PLATE FEED DOG FEED DOG PRESSER FOOT ASM._TIP DIVIDED
Figure
Needle width P/N P/N P/N P/N
Code inch mm
B 1/8 3.2 22625107 - - 40035896
C 5/32 4.0 22625206 22630206 40025784 40035897
40072338
D 3/16 4.8 22625305 - 40025785 22640353
E 7/32 5.6 22625404 22630503 40025786 22640452
F 1/4 6.4 22625503 22630602 40025787 22640551
G 9/32 7.1 22625602 22630800 40025788 22640759
H 5/16 7.9 22625701 22630909 40025789 22640858
K 3/8 9.5 22625800 22631006 40025790 22640957
L 1/2 12.7 22626006 22631303 40025792 22641252
M 5/8 15.9 22626105 22631402 40025793 22641351
N 3/4 19.1 22626204 22631501 40025794 22641450
P 7/8 22.2 22626303 22631709 40025795 22641658
Q 1 25.4 22626402 22631808 40025796 22641757
Remarks - - Option -
Guage SLIDE PLATE ASM._LEFT SLIDE PLATE ASM._FRONT SLIDE PLATE ASM._LEFT SLIDE PLATE ASM._RIGHT
Figure
Needle width P/N P/N P/N P/N
Code inch mm
B 1/8 3.2 40051633 40042874 22601058 22600555
C 5/32 4.0 40051633 40042874 22601058 22600555
D 3/16 4.8 40051633 40042874 22601058 22600555
E 7/32 5.6 40051633 40042874 22601058 22600555
F 1/4 6.4 40051633 40042874 22601058 22600555
G 9/32 7.1 40051633 40042874 22601058 22600555
H 5/16 7.9 40051633 40042874 22601058 22600555
K 3/8 9.5 40051633 40042874 22601058 22600555
L 1/2 12.7 40045729 40042874 22601157 22600654
M 5/8 15.9 40045729 40042874 22601157 22600654
N 3/4 19.1 40045729 40042874 22601157 22600654
P 7/8 22.2 40045730 40042874 22601256 22600753
Q 1 25.4 40045730 40042874 22601256 22600753
Remarks Option - - -

LH-3568AS-7

Guage NEEDLE CLAMP ASM._LEFT NEEDLE CLAMP ASM._RIGHT NEEDLE CLAMP ASM._LEFT NEEDLE CLAMP ASM._RIGHT
Figure
Needle width P/N P/N P/N P/N
Code inch mm
B 1/8 3.2 40035761 40035771 B1402528BA0A B1402528BA0A
C 5/32 4.0 40035762 40035772 B1402528CA0A B1402528CA0A
D 3/16 4.8 B1402528DALA B1402528DARA B1402528DALA B1402528DARA
E 7/32 5.6 B1402528EAL B1402528EAR B1402528EAL B1402528EAR
F 1/4 6.4 B1402528FALA B1402528FARA B1402528FALA B1402528FARA
G 9/32 7.1 40035765 40035775 B1402528GAL B1402528GAR
H 5/16 7.9 40035766 40035776 B1402528HALA B1402528HARA
K 3/8 9.5 - - B1402528KALA B1402528KARA
L 1/2 12.7 40035768 40035778 B1402528LAL B1402528LAR
M 5/8 15.9 40035769 40035779 B1402528MAL B1402528MAR
N 3/4 19.1 40035770 40035780 B1402528NAL B1402528NAR
P 7/8 22.2 40071917 40071919 B1402528PAL B1402528PAR
Q 1 25.4 40071921 40071923 B1402528QAL B1402528QAR
Remarks Option, For DP5 Option, For DP5 Hole type, For DP5 Hole type, For DP5
Guage NEEDLE CLAMP ASM._LEFT NEEDLE CLAMP ASM._RIGHT NEEDLE CLAMP ASM._LEFT NEEDLE CLAMP ASM._RIGHT
Figure
Needle width P/N P/N P/N P/N
Code inch mm
B 1/8 3.2 40035877 40035878 B1402526BA0A B1402526BA0A
C 5/32 4.0 40026063 40026084 B1402526CA0A B1402526CA0A
D 3/16 4.8 40026065 40026086 B1402526DALA B1402526DARA
E 7/32 5.6 40026067 40026088 - 10228567
F 1/4 6.4 40026069 40026090 B1402526FALA B1402526FARA
G 9/32 7.1 40026070 40026091 B1402526GALA B1402526GARA
H 5/16 7.9 40026072 40026093 B1402526HALA B1402526HARA
K 3/8 9.5 40026074 40026095 B1402526KALA B1402526KARA
L 1/2 12.7 40026076 40026097 B1402526LALA B1402526LARA
M 5/8 15.9 40026078 40026099 10228856 10228864
N 3/4 19.1 40026080 40026101 10228955 10228963
Q 1 25.4 40026082 40026103 10229151 10229169
Remarks Option(Wire type) For DP17 Option(Wire type) For DP17 Option(Hole type) For DP17 Option(Hole type) For DP17
Guage THROAT PLATE FEED DOG FEED DOG PRESSER FOOT ASM._TIP DIVIDED
Figure
Needle width P/N P/N P/N P/N
Code inch mm
B 1/8 3.2 40035881 40061270 40035890 40035896
C 5/32 4.0 40025485 40061271 40025817 40035897
D 3/16 4.8 40025490 40061272 40025818 22640353

E 7/32 5.6 40025491 40061273 40025819 22640452
F 1/4 6.4 40025492 40061274 40026715 22640551

G 9/32 7.1 40025493 40061275 40025820 22640759
H 5/16 7.9 40025494 40061276 40025821 22640858
K 3/8 9.5 40025495 40061277 40025822 22640957
L 1/2 12.7 40025498 40061278 40025824 22641252
M 5/8 15.9 40025499 40061279 40025825 22641351
N 3/4 19.1 40025500 40061280 40025826 22641450
P 7/8 22.2 40025502 40061281 40025827 22641658
Q 1 25.4 40025503 40061282 40025828 22641757
Remarks - - Option -
Guage SLIDE PLATE ASM._LEFT SLIDE PLATE ASM._FRONT SLIDE PLATE ASM._LEFT SLIDE PLATE ASM._RIGHT
Figure
Needle width P/N P/N P/N P/N
Code inch mm
B 1/8 3.2 40051633 40042880 40025247 40025235
C 5/32 4.0 40051633 40042880 40025247 40025235
D 3/16 4.8 40051633 40042880 40025247 40025235
E 7/32 5.6 40051633 40042880 40025247 40025235
F 1/4 6.4 40051633 40042880 40025247 40025235
G 9/32 7.1 40051633 40042880 40025247 40025235
H 5/16 7.9 40051633 40042880 40025247 40025235
K 3/8 9.5 40051633 40042880 40025247 40025235
L 1/2 12.7 40045729 40042880 40025248 40025236
M 5/8 15.9 40045729 40042880 40025248 40025236
N 3/4 19.1 40045729 40042880 40025248 40025236
P 7/8 22.2 40045730 40042880 40025249 40025239
Q 1 25.4 40045730 40042880 40025249 40025239
Remarks Option - - -

LH-3568A-G

Guage NEEDLE CLAMP ASM._LEFT NEEDLE CLAMP ASM._RIGHT NEEDLE CLAMP ASM._LEFT NEEDLE CLAMP ASM._RIGHT
Figure
Needle width P/N P/N P/N P/N
Code inch mm
B 1/8 3.2 40035761 40035771 B1402528BA0A B1402528BA0A
C 5/32 4.0 40035762 40035772 B1402528CA0A B1402528CA0A
D 3/16 4.8 B1402528DALA B1402528DARA B1402528DALA B1402528DARA
E 7/32 5.6 B1402528EAL B1402528EAR B1402528EAL B1402528EAR
F 1/4 6.4 B1402528FALA B1402528FARA B1402528FALA B1402528FARA
G 9/32 7.1 40035765 40035775 B1402528GAL B1402528GAR
H 5/16 7.9 40035766 40035776 B1402528HALA B1402528HARA
K 3/8 9.5 B1402528KALA B1402528KARA B1402528KALA B1402528KARA
L 1/2 12.7 40035768 40035778 B1402528LAL B1402528LAR
M 5/8 15.9 40035769 40035779 B1402528MAL B1402528MAR
N 3/4 19.1 40035770 40035780 B1402528NAL B1402528NAR
P 7/8 22.2 40071917 40071919 B1402528PAL B1402528PAR
Q 1 25.4 40071921 40071923 B1402528QAL B1402528QAR
Remarks Option(Wire type) For DP5 Option(Wire type) For DP5 Hole type, For DP5 Hole type, For DP5
Guage NEEDLE CLAMP ASM._LEFT NEEDLE CLAMP ASM._RIGHT NEEDLE CLAMP ASM._LEFT NEEDLE CLAMP ASM._RIGHT
Figure
Needle width P/N P/N P/N P/N
Code inch mm
B 1/8 3.2 40035877 40035878 B1402526BA0A B1402526BA0A
C 5/32 4.0 40026063 40026084 B1402526CA0A B1402526CA0A
D 3/16 4.8 40026065 40026086 B1402526DALA B1402526DARA
E 7/32 5.6 40026067 40026088 - 10228567
F 1/4 6.4 40026069 40026090 B1402526FALA B1402526FARA
G 9/32 7.1 40026070 40026091 B1402526GALA B1402526GARA
H 5/16 7.9 40026072 40026093 B1402526HALA B1402526HARA
K 3/8 9.5 40026074 40026095 B1402526KALA B1402526KARA
L 1/2 12.7 40026076 40026097 B1402526LALA B1402526LARA
M 5/8 15.9 40026078 40026099 10228856 10228864
N 3/4 19.1 40026080 40026101 10228955 10228963
P 7/8 22.2 - - - -
Q 1 25.4 40026082 40026103 10229151 10229169
Remarks Option(Wire type), For DP17 Option(Wire type) For DP17 Option(Hole type) For DP17 Option(Hole type) For DP17
Guage FEED DOG FEED DOG
Figure
Needle width P/N P/N
Code inch mm
C 5/32 4.0 B1613512C0H -
D 3/16 4.8 B1613512D0H 40025801
E 7/32 5.6 B1613512E0H 40025802
F 1/4 6.4 B1613512F0H 40025803
G 9/32 7.1 B1613512G0H 40025804
H 5/16 7.9 B1613512H0H 40025805
K 3/8 9.5 B1613512K0H 40025806
L 1/2 12.7 B1613512L0H 40025808
M 5/8 15.9 B1613512M0H 40025809
N 3/4 19.1 B1613512N0H 40025810
P 7/8 22.2 B1613512P0H 40025811
Q 1 25.4 B1613512Q0H 40025812
Remarks - Option
Guage SLIDE PLATE ASM._LEFT SLIDE PLATE ASM._FRONT SLIDE PLATE ASM._LEFT SLIDE PLATE ASM._RIGHT
Figure
Needle width P/N P/N P/N P/N
Code inch mm
B 1/8 3.2 40051633 40042874 22601058 22600555
C 5/32 4.0 40051633 40042874 22601058 22600555
D 3/16 4.8 40051633 40042874 22601058 22600555
E 7/32 5.6 40051633 40042874 22601058 22600555
F 1/4 6.4 40051633 40042874 22601058 22600555
G 9/32 7.1 40051633 40042874 22601058 22600555
H 5/16 7.9 40051633 40042874 22601058 22600555
K 3/8 9.5 40051633 40042874 22601058 22600555
L 1/2 12.7 40045729 40042874 22601157 22600654
M 5/8 15.9 40045729 40042874 22601157 22600654
N 3/4 19.1 40045729 40042874 22601157 22600654
P 7/8 22.2 40045730 40042874 22601256 22600753
Q 1 25.4 40045730 40042874 22601256 22600753
Remarks Option - - -
Guage PRESSER FOOT ASM._TIP DIVIDED THROAT PLATE
Figure
Needle width P/N P/N
Code inch mm
B 1/8 3.2 40035896
C 5/32 4.0 40071909 40072338
D 3/16 4.8 22816557 -
E 7/32 5.6 22816656 -
F 1/4 6.4 22816755 -
G 9/32 7.1 22816854 -
H 5/16 7.9 22816953 -
K 3/8 9.5 22817050 -
L 1/2 12.7 22817159 -
M 5/8 15.9 40033945 -
N 3/4 19.1 40033947 -
P 7/8 22.2 40033949 -
Q 1 25.4 40033951 -

LH-3568AG-7

Guage NEEDLE CLAMP ASM._LEFT NEEDLE CLAMP ASM._RIGHT NEEDLE CLAMP ASM._LEFT NEEDLE CLAMP ASM._RIGHT
Figure
Needle width P/N P/N P/N P/N
Code inch mm
B 1/8 3.2 40035761 40035771 B1402528BA0A B1402528BA0A
C 5/32 4.0 40035762 40035772 B1402528CA0A B1402528CA0A
D 3/16 4.8 B1402528DALA B1402528DARA B1402528DALA B1402528DARA
E 7/32 5.6 B1402528EAL B1402528EAR B1402528EAL B1402528EAR
F 1/4 6.4 B1402528FALA B1402528FARA B1402528FALA B1402528FARA
G 9/32 7.1 40035765 40035775 B1402528GAL B1402528GAR
H 5/16 7.9 40035766 40035776 B1402528HALA B1402528HARA
K 3/8 9.5 - - B1402528KALA B1402528KARA
L 1/2 12.7 40035768 40035778 B1402528LAL B1402528LAR
M 5/8 15.9 40035769 40035779 B1402528MAL B1402528MAR
N 3/4 19.1 40035770 40035780 B1402528NAL B1402528NAR
P 7/8 22.2 40071917 40071919 B1402528PAL B1402528PAR
Q 1 25.4 40071921 40071923 B1402528QAL B1402528QAR
Remarks Option, For DP5 Option, For DP5 Hole type, For DP5 Hole type, For DP5
Guage NEEDLE CLAMP ASM._LEFT NEEDLE CLAMP ASM._RIGHT NEEDLE CLAMP ASM._LEFT NEEDLE CLAMP ASM._RIGHT
Figure
Needle width P/N P/N P/N P/N
Code inch mm
B 1/8 3.2 40035877 40035878 B1402526BA0A B1402526BA0A
C 5/32 4.0 40026063 40026084 B1402526CA0A B1402526CA0A
D 3/16 4.8 40026065 40026086 B1402526DALA B1402526DARA
E 7/32 5.6 40026067 40026088 - 10228567
F 1/4 6.4 40026069 40026090 B1402526FALA B1402526FARA
G 9/32 7.1 40026070 40026091 B1402526GALA B1402526GARA
H 5/16 7.9 40026072 40026093 B1402526HALA B1402526HARA
K 3/8 9.5 40026074 40026095 B1402526KALA B1402526KARA
L 1/2 12.7 40026076 40026097 B1402526LALA B1402526LARA
M 5/8 15.9 40026078 40026099 10228856 10228864
N 3/4 19.1 40026080 40026101 10228955 10228963
Q 1 25.4 40026082 40026103 10229151 10229169
Remarks Option, For DP17(Wire type) Option, For DP17(Wire type) Option, For DP17(Hole type) Option,For DP17(Hole type)
Guage FEED DOG FEED DOG
Figure
Needle width P/N P/N
Code inch mm
B 1/8 3.2 40053705 40053705
C 5/32 4.0 40071911 -
D 3/16 4.8 40035891 40025831
E 7/32 5.6 40050009 40025832
F 1/4 6.4 40035892 40025833
G 9/32 7.1 40050010 40025834
H 5/16 7.9 40050011 40025835
K 3/8 9.5 40035893 40025836
L 1/2 12.7 40035894 40025838
M 5/8 15.9 40071912 40025839
N 3/4 19.1 40035895 40025840
P 7/8 22.2 40071913 40025841
Q 1 25.4 40071914 40025842
Remarks - Option
Guage SLIDE PLATE ASM._LEFT SLIDE PLATE ASM._FRONT SLIDE PLATE ASM._LEFT SLIDE PLATE ASM._RIGHT
Figure
Needle width P/N P/N P/N P/N
Code inch mm
B 1/8 3.2 40051633 40042880 40025247 40025235
C 5/32 4.0 40051633 40042880 40025247 40025235
D 3/16 4.8 40051633 40042880 40025247 40025235
E 7/32 5.6 40051633 40042880 40025247 40025235
F 1/4 6.4 40051633 40042880 40025247 40025235
G 9/32 7.1 40051633 40042880 40025247 40025235
H 5/16 7.9 40051633 40042880 40025247 40025235
K 3/8 9.5 40051633 40042880 40025247 40025235
L 1/2 12.7 40045729 40042880 40025248 40025236
M 5/8 15.9 40045729 40042880 40025248 40025236
N 3/4 19.1 40045729 40042880 40025248 40025236
P 7/8 22.2 40045730 40042880 40025249 40025239
Q 1 25.4 40045730 40042880 40025249 40025239
Remarks Option - - -
Guage PRESSER FOOT ASM._TIP DIVIDED THROAT PLATE
Figure
Needle width P/N P/N
Code inch mm
B 1/8 3.2 40035896 40035881
C 5/32 4.0 40071909 40025485
D 3/16 4.8 22816557 40025490
E 7/32 5.6 22816756 40025491
F 1/4 6.4 22816755 40025492
G 9/32 7.1 22616854 40025493
H 5/16 7.9 22816953 40025494
K 3/8 9.5 22817050 40025495
L 1/2 12.7 22817159 40025498
M 5/8 15.9 40033945 40025499
N 3/4 19.1 40033947 40025500
P 7/8 22.2 40033949 40025502
Q 1 25.4 40033951 40025503
Remarks - -

LH-3578AG

Guage FEED DOG FEED DOG NEEDLE CLAMP ASM. PRESSER FOOT ASM._TIP DIVIDED SWIVEL GUIDE PRESSER ASM.
Figure
Needle width P/N P/N P/N P/N P/N
Code inch mm
A 3/32 2.4 - - 10147551 - -
B 1/8 3.2 B1613512B0H - 10147650 40035896 -
C 5/32 4.0 B1613512C0H - 10147759 40071909 -
D 3/16 4.8 B1613512D0H 40025801 10147758 22816557 40095293
E 7/32 5.6 B1613512E0H 40025802 10147757 22816656 -
F 1/4 6.4 B1613512F0H 40025803 10148054 22816755 40094776
G 9/32 7.1 B1613512G0H 40025804 10148153 22816854 -
H 5/16 7.9 B1613512H0H 40025805 10148252 22816953 -
K 3/8 9.5 B1613512K0H 40025806 10148351 22817050 -
W 7/16 11.1 40075311 40025807 10148450 40033941 -
L 1/2 12.7 B1613512L0H 40025808 10148559 22817159 -
M 5/8 15.9 B1613512M0H 40025809 10148658 40033945 -
N 3/4 19.1 B1613512N0H 40025810 10148757 40033947 -
P 7/8 22.2 B1613512P0H 40025811 10148856 40033949 -
Q 1 25.4 B1613512Q0H 40025812 10148955 40033951 -
R 1-1/8 28.6 B1613512R0H 40025813 10149052 40033953 -
S 1-1/4 31.8 B1613512S0H 40025814 10149151 40033955 -
T 1-3/8 34.9 B1613512T0H 40025815 10149250 40033957 -
U 1-1/2 38.1 B1613512U0H 40025816 10149359 40033959 -
Remarks   Option Hole type
Guage THROAT PLATE THROAT PLATE SLIDE PLATE ASM._LEFT SLIDE PLATE ASM._RIGHT SLIDE PLATE ASM._LEFT SLIDE PLATE ASM._FRONT
Figure
Needle width P/N P/N P/N P/N P/N P/N
Code inch mm
A 3/32 2.4 - - 22601058 22600555 40051633 40042874
B 1/8 3.2 22628002 - 22601058 22600555 40051633 40042874
C 5/32 4.0 22628101 - 22601058 22600555 40051633 40042874
D 3/16 4.8 22628200 40095288 22601058 22600555 40051633 40042874
E 7/32 5.6 22628309 - 22601058 22600555 40051633 40042874
F 1/4 6.4 22628408 40094772 22601058 22600555 40051633 40042874
G 9/32 7.1 22628507 - 22601058 22600555 40051633 40042874
H 5/16 7.9 22628606 - 22601058 22600555 40051633 40042874
K 3/8 9.5 - - 22601058 22600555 40051633 40042874
W 7/16 11.1 - - 22601058 22600555 40051633 40042874
L 1/2 12.7 - - 22601157 22600654 40045729 40042874
M 5/8 15.9 - - 22601157 22600654 40045729 40042874
N 3/4 19.1 - - 22601157 22600654 40045729 40042874
P 7/8 22.2 - - 22601256 22600753 40045730 40042874
Q 1 25.4 - - 22601256 22600753 40045730 40042874
R 1-1/8 28.6 - - 22601256 22600753 40045730 40042874
S 1-1/4 31.8 - - 22601355 22600852 40045731 40042874
T 1-3/8 34.9 - - 22601355 22600852 40045731 40042874
U 1-1/2 38.1 - - 22601355 22600852 40045731 40042874
Remarks binding       Option

LH-3578AG-7

Guage THROAT PLATE NEEDLE CLAMP ASM. FEED DOG FEED DOG PRESSER FOOT ASM. SWIVEL GUIDE PRESSER ASM.
Figure
Needle width P/N P/N P/N P/N P/N P/N
Code inch mm
A 3/32 2.4 - 10147551 - - - -
B 1/8 3.2 40035881 10147650 40053705 40053705 40035896 -
C 5/32 4.0 40025484 10147759 40071911 - 40071909 -
D 3/16 4.8 40095289 10147858 40035891 40025831 22816557 40095293
E 7/32 5.6 40025491 10147957 40050009 40025832 22816656 -
F 1/4 6.4 40094773 10148054 40035892 40025833 22816755 40094776
G 9/32 7.1 40025493 10148153 40050010 40025834 22816854 -
H 5/16 7.9 40025494 10148252 40050011 40025835 22816953 -
K 3/8 9.5 40025495 10148351 40035893 40025836 22817050 -
W 7/16 11.1 40025496 10148450 - 40025837 40033941 -
L 1/2 12.7 40025498 10148559 40035894 40025838 22817159 -
M 5/8 15.9 40025499 10148658 40071912 40025839 40033945 -
N 3/4 19.1 40025500 10148757 40035895 40025840 40033947 -
P 7/8 22.2 40025502 10148856 40071913 40025841 40033949 -
Q 1 25.4 40025503 10148955 40071914 40025842 40033951 -
R 1-1/8 28.6 40025504 10149052 40071915 40025843 40033953 -
S 1-1/4 31.8 40025505 10149151 40051916 40025844 40033955 -
T 1-3/8 34.9 - 10149250 - - - -
U 1-1/2 38.1 - 10149359 - - - -
Remarks   Hole type   Option
Guage SLIDE PLATE ASM._LEFT SLIDE PLATE ASM._RIGHT SLIDE PLATE ASM._LEFT SLIDE PLATE ASM._FRONT
Figure
Needle width P/N P/N P/N P/N
Code inch mm
A 3/32 2.4 - - - -
B 1/8 3.2 40025247 40025235 40051633 40042880
C 5/32 4.0 40025247 40025235 40051633 40042880
D 3/16 4.8 40025247 40025235 40051633 40042880
E 7/32 5.6 40025247 40025235 40051633 40042880
F 1/4 6.4 40025247 40025235 40051633 40042880
G 9/32 7.1 40025247 40025235 40051633 40042880
H 5/16 7.9 40025247 40025235 40051633 40042880
K 3/8 9.5 40025247 40025235 40051633 40042880
W 7/16 11.1 40025247 40025235 40051633 40042880
L 1/2 12.7 40025248 40025236 40045729 40042880
M 5/8 15.9 40025248 40025236 40045729 40042880
N 3/4 19.1 40025248 40025236 40045729 40042880
P 7/8 22.2 40025249 40025239 40045730 40042880
Q 1 25.4 40025249 40025239 40045730 40042880
R 1-1/8 28.6 40025249 40025239 40045730 40042880
S 1-1/4 31.8 40025250 40025240 40045731 40042880
T 1-3/8 34.9 - - - -
U 1-1/2 38.1 - - - -
Remarks

LH-3588AG

Guage NEEDLE CLAMP ASM._LEFT NEEDLE CLAMP ASM._FRONT NEEDLE CLAMP ASM._LEFT NEEDLE CLAMP ASM._FRONT
Figure
Needle width P/N P/N P/N P/N
Code inch mm
B 1/8 3.2 B1402526BA0A B1402526BA0A B1402528BA0A B1402528BA0A
C 5/32 4.0 B1402526CA0A B1402526CA0A B1402528CA0A B1402528CA0A
D 3/16 4.8 B1402526DALA B1402526DARA B1402528DALA B1402528DARA
E 7/32 5.6 10228559 10228567 B1402528EAL B1402528EAR
F 1/4 6.4 B1402526FALA B1402526FARA B1402528FALA B1402528FARA
G 9/32 7.1 B1402526GALA B1402526GARA B1402528GAL B1402528GAR
H 5/16 7.9 B1402526HALA B1402526HARA B1402528HALA B1402528HARA
K 3/8 9.5 B1402526KALA B1402526KARA B1402528KALA B1402528KARA
L 1/2 12.7 B1402526LALA B1402526LARA B1402528LAL B1402528LAR
M 5/8 15.9 10228856 10228864 B1402528MAL B1402528MAR
N 3/4 19.1 10228955 10228963 B1402528NAL B1402528NAR
P 7/8 22.2 - - B1402528PAL B1402528PAR
Q 1 25.4 10229151 10229169 B1402528QAL B1402528QAR
Remarks For DP1, Option For DP17, Option For DP5, Hole type For DP5,Hole type
Guage THROAT PLATE SLIDE PLATE ASM._LEFT SLIDE PLATE ASM._RIGHT SLIDE PLATE ASM._LEFT SLIDE PLATE ASM._FRONT
Figure
Needle width P/N P/N P/N P/N P/N
Code inch mm
B 1/8 3.2 - 22601058 22600555 40051633 40042874
C 5/32 4.0 - 22601058 22600555 40051633 40042874
D 3/16 4.8 40095288 22601058 22600555 40051633 40042874
E 7/32 5.6 - 22601058 22600555 40051633 40042874
F 1/4 6.4 40094772 22601058 22600555 40051633 40042874
G 9/32 7.1 - 22601058 22600555 40051633 40042874
H 5/16 7.9 - 22601058 22600555 40051633 40042874
K 3/8 9.5 - 22601058 22600555 40051633 40042874
L 1/2 12.7 - 22601157 22600654 40045729 40042874
M 5/8 15.9 - 22601157 22600654 40045729 40042874
N 3/4 19.1 - 22601157 22600654 40045729 40042874
P 7/8 22.2 - 22601256 22600753 40045730 40042874
Q 1 25.4 - 22601256 22600753 40045730 40042874
Remarks       Option
Guage FEED DOG FEED DOG PRESSER FOOT ASM._TIP DIVIDED SWIVEL GUIDE PRESSER ASM.
Figure
Needle width P/N P/N P/N P/N
Code inch mm
B 1/8 3.2 - - 40035896 -
C 5/32 4.0 B1613512C0H - 40071909 -
D 3/16 4.8 B1613512D0H 40025801 22816557 40095293
E 7/32 5.6 B1613512E0H 40025802 22816556 -
F 1/4 6.4 B1613512F0H 40025803 22816555 40094776
G 9/32 7.1 B1613512G0H 40025804 22816554 -
H 5/16 7.9 B1613512H0H 40025805 22816553 -
K 3/8 9.5 B1613512K0H 40025806 22817050 -
L 1/2 12.7 B1613512L0H 40025808 22817159 -
M 5/8 15.9 B1613512M0H 40025809 40033945 -
N 3/4 19.1 B1613512N0H 40025810 40033947 -
P 7/8 22.2 B1613512P0H 40025811 40033949 -
Q 1 25.4 B1613512Q0H 40025812 40033951 -
Remarks   Option

LH-3588AG-7

Guage FEED DOG FEED DOG THROAT PLATE PRESSER FOOT ASM._TIP DIVIDED SWIVEL GUIDE PRESSER ASM.
Figure
Needle width P/N P/N P/N P/N P/N
Code inch mm
B 1/8 3.2 40053705 40053705 40035881 40035896 -
C 5/32 4.0 40071911 - 40025485 40071909 -
D 3/16 4.8 40035891 40025831 40095289 22816557 40095293
E 7/32 5.6 40050009 40025832 40025491 22816656 -
F 1/4 6.4 40035892 40025833 40094773 22816755 40094776
G 9/32 7.1 40050010 40025834 40025493 22816854 -
H 5/16 7.9 40050011 40025835 40025494 22816953 -
K 3/8 9.5 40035893 40025836 40025495 22817050 -
L 1/2 12.7 40035894 40025838 40025498 22817159 -
M 5/8 15.9 40071912 40025839 40025499 40033945 -
N 3/4 19.1 40035895 40025840 40025500 40033947 -
P 7/8 22.2 40071913 40025841 40025502 40033949 -
Q 1 25.4 40071914 40025842 40025503 40033951 -
Remarks   Option
Guage NEEDLE CLAMP ASM._LEFT NEEDLE CLAMP ASM._RIGHT NEEDLE CLAMP ASM._LEFT NEEDLE CLAMP ASM._RIGHT
Figure
Needle width P/N P/N P/N P/N
Code inch mm
B 1/8 3.2 B1402528BA0A B1402528BA0A B1402526BA0A B1402526BA0A
C 5/32 4.0 B1402528CA0A B1402528CA0A B1402526CA0A B1402526CA0A
D 3/16 4.8 B1402528DALA B1402528DARA B1402526DALA B1402526DARA
E 7/32 5.6 B1402528EAL B1402528EAR 10228559 10228567
F 1/4 6.4 B1402528FALA B1402528FARA B1402526FALA B1402526FARA
G 9/32 7.1 B1402528GAL B1402528GAR B1402526GALA B1402526GARA
H 5/16 7.9 B1402528HALA B1402528HARA B1402526HALA B1402526HARA
K 3/8 9.5 B1402528KALA B1402528KARA B1402526KALA B1402526KARA
L 1/2 12.7 B1402528LAL B1402528LAR B1402526LALA B1402526LARA
M 5/8 15.9 B1402528MAL B1402528MAR 10228856 10228864
N 3/4 19.1 B1402528NAL B1402528NAR 10228955 10228963
P 7/8 22.2 B1402528PAL B1402528PAR - -
Q 1 25.4 B1402528QAL B1402528QAR 10229151 10229169
Remarks For DP5, Hole type For DP5, Hole type For DP17, Option For DP17, Option
Guage SLIDE PLATE ASM._LEFT SLIDE PLATE ASM._RIGHT SLIDE PLATE ASM._LEFT SLIDE PLATE ASM._FRONT
Figure
Needle width P/N P/N P/N P/N
Code inch mm
B 1/8 3.2 40025247 40025235 40051633 40042880
C 5/32 4.0 40025247 40025235 40051633 40042880
D 3/16 4.8 40025247 40025235 40051633 40042880
E 7/32 5.6 40025247 40025235 40051633 40042880
F 1/4 6.4 40025247 40025235 40051633 40042880
G 9/32 7.1 40025247 40025235 40051633 40042880
H 5/16 7.9 40025247 40025235 40051633 40042880
K 3/8 9.5 40025247 40025235 40051633 40042880
L 1/2 12.7 40025248 40025236 40045729 40042880
M 5/8 15.9 40025248 40025236 40045729 40042880
N 3/4 19.1 40025248 40025236 40045729 40042880
P 7/8 22.2 40025249 40025239 40045730 40042880
Q 1 25.4 40025249 40025239 40045730 40042880
Remarks     Option
