半干式高速包缝机/五线包缝机

JUKI干式技术解决了缝制品的油污问题。
这款畅销机器，使缝制品免受油污影响。
MO-6700S采用JUKI先进的干式技术，其优良的缝制质量和高生产性能备受赞誉。
MO6700DA系列半干式包缝机，只在造成机油飞散的重点部位实施干式技术。畅销市场的MO-6700DA系列，彻底解决了缝制品的油污问题。

> PEGASUS : ＭX 系列

产品功能

  • 消除油污

    • 显著减少机油飞散，消除了缝制品的油污问题，从而提升了成品质量。
    • 除油污或返工的频率降低。
    • 实际最大缝制速度可达7,000sti/min。



  • 先进的干式技术，实现无供油机构

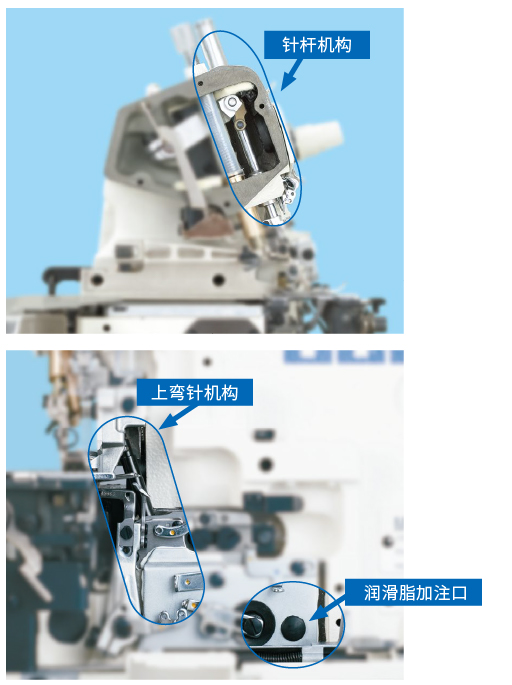

    • 针杆机构和上弯针机构经重新设计，无需供油。
    • 主驱动装置的特殊表面处理，润滑脂供给方法等均采用了最先进的干式技术，提高了耐用性。机器长时间运转也不会发生机油飞散。上弯针部件和机头面部设置了润滑脂加注口，维护更简易。

  • 防面料起皱型

    MO-6714DA--30P
    MO-6716DA--30P

    配备了调节装置，能有效防止难缝面料或新面料起皱。操作人员无需进行高难度调整，即可缝制出美观高质的缝制产品。

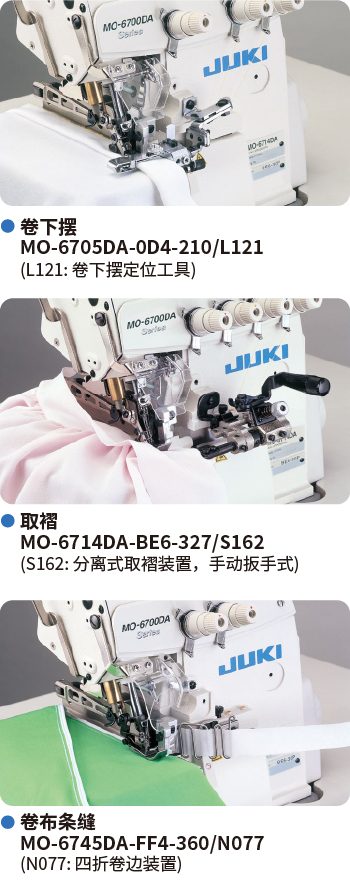

  • 提供多款子类机型


规格

产品型号 MO-6704DA MO-6714DA MO-6716DA
缝迹类型 单针包缝 双针包缝 五线包缝
美国的缝迹形式 504 514 516
最大缝制速度 7,000sti/min*
针距长度 0.8~4mm 1.5~4mm
针幅（mm） - 2.0, 3.2 3.2, 4.8, 4.8+2.0, 3.2+2.0
卷边宽度（mm） 1.6, 3.2, 4.0, 4.8 2.0, 3.2, 4.0, 4.8 3.2, 4.0, 4.8, 6.4
差动下送布比 收缩1：2（最大1：4），伸缩1：0.7（最大1：0.6）
针杆行程 24.5mm
针倾斜角度 20°
针杆机构 针杆构造和上/下套筒
机针 DC×27（不包括某些子类机型）
最高压脚提升量 7mm（不包括某些子类机型）
最大压脚压力 63.7N (6.5kgf)
针距调整方式 按钮式
差动送布调节方式 控制杆式（带微量调节）
机头重量 28kg
供油方式 自动（针杆机构和上弯针机构无需供油。)
供油 JUKI机油 18（等同于ISO VG18）
针尖冷却装置 选配
面线冷却装置 选配
微量提升装置 标准配置

*sti/min是“针/分钟”的缩写。

当您下订单时

子类机型列表

针位

MO-6704DA

Sub class Guage THROAT PLATE MAIN FEED DOG AUXILIARY FEED DOG DIFFERENTIAL FEED DOG PRESSER FOOT ASM. PRESSER FOOT HINGE PRESSER FOOT STITCH TONGUE NEEDLE CLAMP UPPER LOOPER LOWER LOOPER
Figure
Needle width Overedging width P/N P/N P/N P/N P/N P/N P/N P/N P/N P/N P/N
MO-6704DA-0E4-300 4 R4200J6ED00 13191606 13191309 13192802 11876158 11872009 B1507804C00 B1509804C00 13175005 11888104 11999307
MO-6704DA-0E4-307 4 R4200J6ED00 13191606 13191309 13192802 11876158 11872009 B1507804C00 B1509804C00 13175005 11888104 11999307
MO-6704DA-0F4-307 4.8 R4200J6FD00 13191606 13191309 13192802 11876257 11872009 B150781400P B1509804C0A 13175005 11888104 11999307
MO-6704DA-0E4-40H 4 R4200J6ED00 13191606 13191309 13192802 11876158 11872009 B1507804C00 B1509804C00 13175005 11991908 11999307
MO-6704DA-0F6-50H 4.8 R4300J6FE0B 11883303 13191309 11885605 11876455 11872009 11873007 B1509804C0A 13175005 11991908 11999307
MO-6705DA-0D4-210/L121 3.2 R4200J6DD00 13191606 13191309 13192802 11992153 11872009 11992104 11874807 13175005 11888104 11999307
MO-6704DA-0A4-150 1.6 R4200J6AC00 11898905 11887007 11899002 11876059 11872009 B1507804C00 11792900 13175005 11888104 11999307
MO-6704DA-0A5-150 1.6 R4100J6AC01 11882008 11887007 11885001 11876059 11872009 B1507804C00 11792900 13175005 11888104 11999307
Sub class Guage CLOTH WASTE COVER_WITH NEEDLE COOLER CLOTH WASTE COVER_
WITHOUT
NEEDLE COOLER		 UPPER KNIFE LOWER KNIFE NEEDLE HOLDER TRAVELING NEEDLE GUARD GUIDE SUPPORT GAUGE UPPER LOOPER ARM UPPER LOOPER GUIDE
Figure
Needle width Overedging width P/N P/N P/N P/N P/N P/N P/N P/N P/N
MO-6704DA-0E4-300 4 13104104 13104005 11845807 13150701 11890100 11890001 13131909 13131057 40039400
MO-6704DA-0E4-307 4 13104104 13104005 11845807 13150701 11890100 11890001 13131909 13131057 40039401
MO-6704DA-0F4-307 4.8 13104104 13104005 11845807 13150701 11890100 11890001 13131909 13131057 40039401
MO-6704DA-0E4-40H 4 13104104 13104005 11845807 13150701 11890100 11890001 13132006 13131057 40039400
MO-6704DA-0F6-50H 4.8 13104104 13104005 11845807 13150701 11890100 11890001 13132006 13131057 40039400
MO-6705DA-0D4-210/L121 3.2 13104104 13104005 11845807 13150701 11890100 11890001 13131909 13131057 40039400
MO-6704DA-0A4-150 1.6 13104104 13104104 11845807 13150701 11890100 11890001 13131909 13131057 40039400
MO-6704DA-0A5-150 1.6 13104104 13104104 11845807 13150701 11890100 11890001 13131909 13131057 40039400

MO-6714DA

Sub class Guage THROAT PLATE MAIN FEED DOG AUXILIARY FEED DOG DIFFERENTIAL FEED DOG PRESSER FOOT ASM. PRESSER FOOT HINGE PRESSER FOOT STITCH TONGUE NEEDLE CLAMP UPPER LOOPER LOWER LOOPER
Figure
Needle width Overedging width P/N P/N P/N P/N P/N P/N P/N P/N P/N P/N P/N
MO-6714DA-BD6-207 2*3.2 R4305J6DE00 13192000 13191309 13193206 11876851 11872009 B150781400P 11874203 12256905 12176004 11999307
MO-6714DA-BE6-207 2*4 R4305J6EE00 13192000 13191309 13193206 11876851 11872009 B150781400P 11874203 12256905 12176004 11999307
MO-6714DA-BD6-307
MO-6714DA-BE6-307 2*4 R4305J6EE00 13192000 13191309 13193206 11876851 11872009 B150781400P 11874203 12256905 12176004 11999307
MO-6714DA-BE6-20H 2*4 R4305J6EE00 13192000 13191309 13193206 11876851 11872009 B150781400P 11874203 12256905 12176103 11999307
MO-6714DA-BE6-40H 2*4 R4305J6EE00 13192000 13191309 13193206 11876851 11872009 B150781400P 11874203 12256905 12176103 11999307
MO-6712DA-DF6-50F 3.2*4.8 R4308J6FE0B 11882503 11987005 11790706 11877156 11872009 11790508 11790607 12149407 11996600 11995206
MO-6714DA-BB6-30P 2*2 R4305J6BE0A 12171500 13191309 12172003 11876851 11872009 B150781400P 11874203 12256905 12176004 11999307
MO-6714DA-BD6-30P 2*3.2 R4305J6DE0A 12171500 13191309 12172003 11876851 11872009 B150781400P 11874203 12256905 12176004 11999307
MO-6714DA-BE6-30P 2*4 R4305J6EE0B 12171500 13191309 12172003 11876851 11872009 B150781400P 11874203 12256905 12176004 11999307
MO-6714DA-BE6-327/S162 2*4 R4305J6EE0A 11883402 13191309 12171807 11879350 11872009 11974102 B150981400P 12256905 12176004 11999307
MO-6714DA-BD6-24H/G39/Q141 2*3.2 R4305J6DE00 13192000 13191309 13193206 13182852 13178603 13184205 13187604 12256905 12176103 11999307
MO-6714DA-BE6-24H/G39/Q141 2*4 R4305J6EE00 13192000 13191309 13193206 13182852 13178603 13184205 13187604 12256905 12176103 11999307
MO-6714DA-BD6-347/G39/Q141 2*3.2 R4305J6DE00 13192000 13191309 13193206 13182852 13178603 13184205 B150981400P 12256905 12176004 11999307
MO-6714DA-BE6-347/G39/Q141 2*4 R4305J6EE00 13192000 13191309 13193206 13182852 13178603 13184205 B150981400P 12256905 12176004 11999307
MO-6714DA-BD6-34H/G39/Q141 2*3.2 R4305J6DE00 13192000 13191309 13193206 13182852 13178603 13184205 B150981400P 12256905 12176103 11999307
MO-6714DA-BE6-34H/G39/Q141 2*4 R4305J6EE00 13192000 13191309 13193206 13182852 13178603 13184205 B150981400P 12256905 12176103 11999307
MO-6714DA-BE6-44H/G39/Q141 2*4 R4305J6EE00 13192000 13191309 13193206 13182852 13178603 13184205 13187604 12256905 12176103 11999307
Sub class Guage CLOTH WASTE COVER_WITH NEEDLE COOLER CLOTH WASTE COVER_
WITHOUT
NEEDLE COOLER		 UPPER KNIFE LOWER KNIFE NEEDLE HOLDER TRAVELING NEEDLE GUARD GUIDE SUPPORT GAUGE UPPER LOOPER ARM UPPER LOOPER GUIDE
Figure
Needle width Overedging width P/N P/N P/N P/N P/N P/N P/N P/N P/N
MO-6714DA-BD6-207 2*3.2 13104104 13104005 11845807 13150701 11890308 11890001 13131909 13131156 40039401
MO-6714DA-BE6-207 2*4 13104104 13104005 11845807 13150701 11890308 11890001 13131909 13131156 40039401
MO-6714DA-BD6-307
MO-6714DA-BE6-307 2*4 13104104 13104005 11845807 13150701 11890308 11890001 13131909 13131156 40039401
MO-6714DA-BE6-20H 2*4 13104104 13104005 11845807 13150701 11890308 11890001 13132006 13131156 40039400
MO-6714DA-BE6-40H 2*4 13104104 13104005 11845807 13150701 11890308 11890001 13132006 13131156 40039400
MO-6712DA-DF6-50F 3.2*4.8 13104104 13104005 11845807 13150701 11890407 11890001 13131909 13131156 40032579
MO-6714DA-BB6-30P 2*2 13104104 13104005 11845807 13150701 11890308 11890001 13131909 13131156 40039401
MO-6714DA-BD6-30P 2*3.2 13104104 13104005 11845807 13150701 11890308 11890001 13131909 13131156 40039401
MO-6714DA-BE6-30P 2*4 13104104 13104005 11845807 13150701 11890308 11890001 13131909 13131156 40039401
MO-6714DA-BE6-327/S162 2*4 13104104 13104005 11845807 13150701 11890308 11890001 13131909 13131156 40039401
MO-6714DA-BD6-24H/G39/Q141 2*3.2 13104104 13104005 11845807 13150701 11890308 11890001 13132006 13131156 40039400
MO-6714DA-BE6-24H/G39/Q141 2*4 13104104 13104005 11845807 13150701 11890308 11890001 13132006 13131156 40039400
MO-6714DA-BD6-347/G39/Q141 2*3.2 13104104 13104005 11845807 13150701 11890308 11890001 13131909 13131156 40039401
MO-6714DA-BE6-347/G39/Q141 2*4 13104104 13104005 11845807 13150701 11890308 11890001 13131909 13131156 40039401
MO-6714DA-BD6-34H/G39/Q141 2*3.2 13104104 13104005 11845807 13150701 11890308 11890001 13132006 13131156 40039401
MO-6714DA-BE6-34H/G39/Q141 2*4 13104104 13104005 11845807 13150701 11890308 11890001 13132006 13131156 40039401
MO-6714DA-BE6-44H/G39/Q141 2*4 13104104 13104005 11845807 13150701 11890308 11890001 13132006 13131156 40039401

MO-6716DA
MO-6743DA
MO-6745DA

Sub class Guage THROAT PLATE MAIN FEED DOG AUXILIARY FEED DOG DIFFERENTIAL FEED DOG HINGING PRESSER ASM. PRESSER FOOT HINGE FRONT PRESSER REAR PRESSER CHAIN LOOPER NEEDLE CLAMP UPPER LOOPER LOWER LOOPER
Figure
Needle width Overedging width P/N P/N P/N P/N P/N P/N P/N P/N P/N P/N P/N
MO-6716DA-DE4-300 3.2*4 R4508J6ED00 13192406 13191408 13193602 12153755 12156907 12162202 12164802 12257002 11888104 11999307
MO-6716DA-DE6-307 3.2*4 R4608J6ED00 11882909 13191408 12173209 12153755 12156907 12162202 12164802 12257002 11888104 11999307
MO-6716DA-DF4-307 3.2*4.8 R4508J6FD00 13192406 13191408 13193602 12153755 12156907 12162202 12164802 12257002 11888104 11999307
MO-6716DA-DE4-40H 3.2*4 R4508J6ED00 13192406 13191408 13193602 12153755 12156907 12162202 12164802 12257002 11991908 11999307
MO-6716DA-DE4-40H/E35 3.2*4 R4508J6ED00 13192406 13191408 13193602 12153755 12156907 12162202 12164802 12257002 11991908 11999307
MO-6716DA-DF4-40H
MO-6716DA-DE6-40H 3.2*4 R4608J6ED00 11882909 13191408 12173209 12153755 12156907 12162202 12164802 12257002 11991908 11999307
MO-6716DA-FF6-307 4.8*4.8 R4612J6FD00 11884004 13191408 12173308 12154258 12157004 12162707 12165304 12257507 11888104 11999307
MO-6716DA-FF6-40H 4.8*4.8 R4612J6FD00 11884004 13191408 12173308 12154258 12157004 12162707 12165304 12257507 11991908 11999307
MO-6716DA-FF6-50H 4.8*4.8 R4612J6FF00 11883006 13191408 12173506 11991171 11991023 11991114 11991205 12257507 11991908 11999307
MO-6716DA-FH6-50H 4.8*6.4 R4612J6HG00 11883006 13191408 12173506 11991171 11991023 11991114 11991205 12257507 11991908 11999307
MO-6716DA-DE4-30P 3.2*4 R4508J6ED0A 12171302 13191408 12174306 11879954 11872504 B1507816D0R 11875804 12257002 11888104 11999307
MO-6716DA-FF4-30P 4.8*4.8 R4512J6FD0A 12171609 13191408 12174702 12154258 12157004 12162707 12165304 12150306 11888104 11999307
MO-6716DA-FF6-42H/S159 4.8*4.8 R4612J6FD0A 12170908 13191408 12174504 12154852 12157004 12162707 12165304 12257507 11991908 11999307
MO-6743DA-1D6-40H 4.8*2*3.2 R4612J6DE01 11884004 13191408 12173308 11878055 11872007 B1507843F00 11875507 12275004 12176103 11999307
MO-6743DA-2D6-40H 3.2*2*3.2 R4608J6DE01 11882305 13191408 12173308 11877958 11872116 B1507843D00 11875408 12150504 12176103 11999307
MO-6745DA-FF4-360/N077 4.8*4.8 40026881 40031382 - 40031381 40031637 11872405 40026885 12164802 12150306 - -
Sub class Guage CHAIN LOOPER CLOTH WASTE COVER UPPER KNIFE LOWER KNIFE NEEDLE HOLDER NEEDLE HOLDER NEEDLE HOLDER TRAVELING NEEDLE GUARD GUIDE SUPPORT GAUGE UPPER LOOPER ARM UPPER LOOPER GUIDE THREAD PLATE CLAW
Figure
Needle width Overedging width P/N P/N P/N P/N P/N P/N P/N P/N P/N P/N P/N P/N
MO-6716DA-DE4-300 3.2*4 12120705 13104203 11845906 13150701 12015301 12015400 12177903 11890001 13132006 13131057 40039400 -
MO-6716DA-DE6-307 3.2*4 12120705 13104203 11845906 13150701 12015301 12015400 12177903 11890001 13131909 13131156 40039401 -
MO-6716DA-DF4-307 3.2*4.8 12120705 13104203 11845906 13150701 12015301 12015400 12177903 11890001 13131909 13131156 40039401 -
MO-6716DA-DE4-40H 3.2*4 12120705 13104203 11845906 13150701 12015301 12015400 12177903 11890001 13132006 13131156 40039400 -
MO-6716DA-DE4-40H/E35 3.2*4 12120705 13104203 11845906 13150701 12015301 12015400 12177903 11890001 13132006 13131156 40039400 12278602
MO-6716DA-DF4-40H
MO-6716DA-DE6-40H 3.2*4 12120705 13104203 11845906 13150701 12015301 12015400 12177903 11890001 13132006 13131156 40039400 -
MO-6716DA-FF6-307 4.8*4.8 12120705 13104203 11845906 13150701 12015301 12015400 12177903 11890001 13131909 13131156 40039401 -
MO-6716DA-FF6-40H 4.8*4.8 12120705 13104203 11845906 13150701 12015301 12015400 12177903 11890001 13132006 13131156 40039400 -
MO-6716DA-FF6-50H 4.8*4.8 12120705 13104203 11845906 13150701 12015301 12015400 12177903 11890001 13132006 13131156 40039400 -
MO-6716DA-FH6-50H 4.8*6.4 12120705 13104203 11845906 13150701 12015301 12015400 12177903 11890001 13132006 13131156 40039400 -
MO-6716DA-DE4-30P 3.2*4 12120705 13104203 11845906 13150701 12015301 12015400 12177903 11890001 13132006 13131057 40039400 -
MO-6716DA-FF4-30P 4.8*4.8 12120705 13104203 11845906 13150701 12015301 12015400 12177903 11890001 13132006 13131057 40039400 -
MO-6716DA-FF6-42H/S159 4.8*4.8 12120705 13104203 11845906 13150701 12015301 12015400 12177903 11890001 13132006 13131156 40039400 -
MO-6743DA-1D6-40H 4.8*2*3.2 12120705 13104203 11845906 13150701 11999406 12015301 11999406 11890001 13132006 13131156 40039400 -
MO-6743DA-2D6-40H 3.2*2*3.2 12120705 13104203 11845906 13150701 11999406 12177903 - 11890001 13132006 13131156 40039400 -
MO-6745DA-FF4-360/N077 4.8*4.8 11999604 13105309 11845807 13150701 11890902 11891009 12177903 - - - - -
