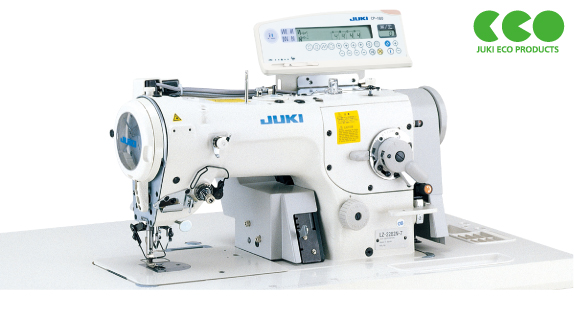

带下切刀的高速单针平缝2点人字缝缝纫机

即使高速运转，也能实现低张力下的稳定柔美缝制。

产品功能

基本性能

  • 大幅提高了生产效率

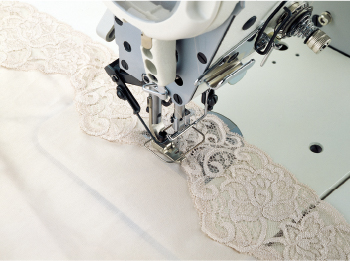

    机器配备了内置下切刀，以修剪下方面料。在进行棉绒布裙下摆部或领部，或短裤接缝线的花边缝制工序时，可以在缝制内衣身片花边的同时，仅对身片面料进行修剪。

  • 呈现稳定的切线性能

    切刀的驱动马达是单独运行的马达，与缝纫机马达分开。由此，即使机器在起缝时或缝制回转处时速度降低，切刀也可以继续保持高速修剪。此外，切刀设置在机针旁边，即使在回转部分也能确保恒定的修剪宽幅。

规格

型号
名称		 不带自动切线装置 LZ-2282N
带自动切线装置 LZ-2282N-7
缝制式样 2点人字缝
（带下切刀）
缝制花样
最大缝制速度 5,000sti/min*
最大人字宽幅 4.5mm
最大送布量 2.5mm
下切刀最小剪切余量 3.0mm
下切刀驱动方式 交流马达
压脚提升量 手动：4.0mm
膝动：8.5mm
旋梭 DP旋梭（钛处理内旋梭）
挑线杆 旋转式
供油方式 全自动
供油 JUKI新型1号Defrix Oil（等同于ISO VG7）
机针（出厂时） 438 (Nm70),
DP×5 (#10)
针位变更机构 标准配置
倒缝机构 标准配置
摆针凸轮 三角凸轮
标准针位
（出厂时）		 针板 235-12817
送布牙 235-12908
压脚（组件） 235-13062

*sti/min是“针/分钟”的缩写。

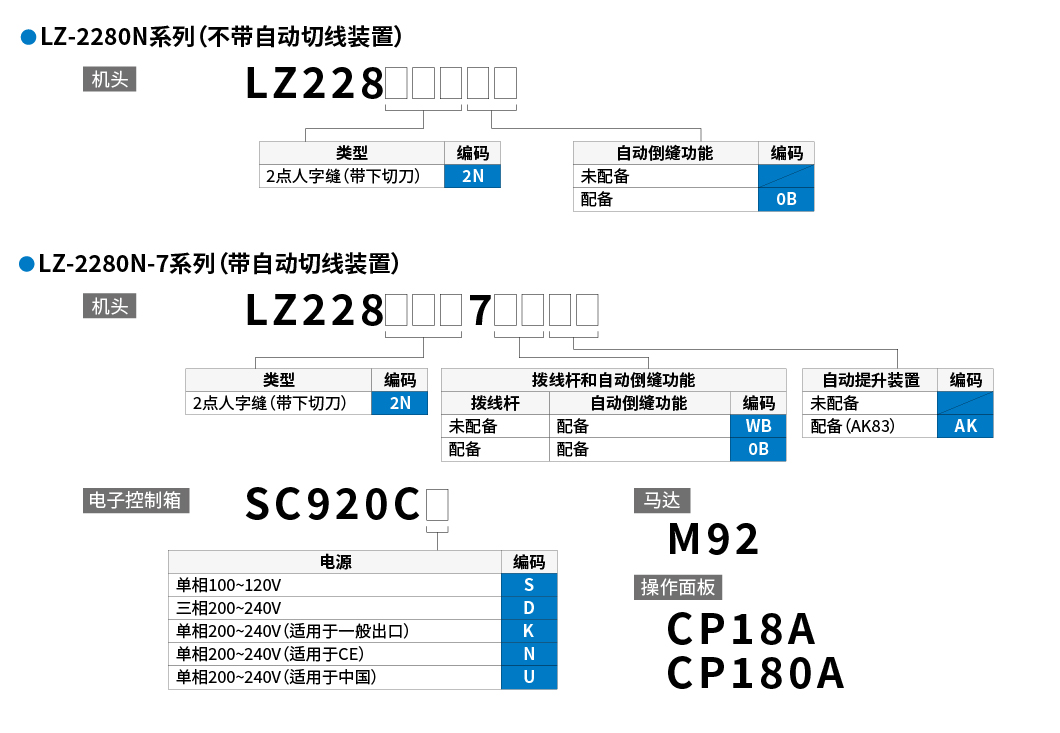

当您下订单时

针位

MO-6904C-0D6-307

Guage THROAT PLATE MAIN FEED DOG AUXILIARY FEED DOG DIFFERENTIAL FEED DOG PRESSER FOOT ASM. PRESSER FOOT HINGE PRESSER FOOT STITCH TONGUE
Needle width
Needle widt * Overedging width P/N P/N P/N P/N P/N P/N P/N P/N
3.2 R4300K6DE00 12235206 12238101 12236709 12230157 11872009 12232104 B1509804C00



Guage NEEDLE CLAMP UPPER LOOPER LOWER LOOPER CHIP GUARD COVER UPPER KNIFE LOWER KNIFE NEEDLE GUARD TRAVELING NEEDLE GUARD
Needle width
Needle widt * Overedging width P/N P/N P/N P/N P/N P/N P/N P/N
3.2 13175005 12247102 12240107 12229100 11845807 12220406 12240701 12240602



Guage GUIDE SUPPORT GAUGE UPPER LOOPER ARM UPPER LOOPER GUIDE
Needle width
Needle widt * Overedging width P/N P/N P/N
3.2 13131909 13289004 40026017

MO-6904C-0E6-307

Guage THROAT PLATE MAIN FEED DOG AUXILIARY FEED DOG DIFFERENTIAL FEED DOG PRESSER FOOT ASM. PRESSER FOOT HINGE PRESSER FOOT STITCH TONGUE
Needle width
Needle widt * Overedging width P/N P/N P/N P/N P/N P/N P/N P/N
4.0 R4300K6EE00 12235206 12238101 12236709 12230157 11872009 12232104 B1509804C00



Guage NEEDLE CLAMP UPPER LOOPER LOWER LOOPER CHIP GUARD COVER UPPER KNIFE LOWER KNIFE NEEDLE GUARD TRAVELING NEEDLE GUARD
Needle width
Needle widt * Overedging width P/N P/N P/N P/N P/N P/N P/N P/N
4.0 13175005 12247102 12240107 12229100 11845807 12220307 12240701 12240602



Guage GUIDE SUPPORT GAUGE UPPER LOOPER ARM UPPER LOOPER GUIDE
Needle width
Needle widt * Overedging width P/N P/N P/N
4.0 13131909 13289004 40026017

MO-6904C-0F4-307

Guage THROAT PLATE MAIN FEED DOG AUXILIARY FEED DOG DIFFERENTIAL FEED DOG PRESSER FOOT ASM. PRESSER FOOT HINGE PRESSER FOOT STITCH TONGUE
Needle width
Needle widt * Overedging width P/N P/N P/N P/N P/N P/N P/N P/N
4.8 R4200K6FD00 12235107 12238101 12236600 12230454 11872009 12232104 B1509804C00



Guage NEEDLE CLAMP UPPER LOOPER LOWER LOOPER CHIP GUARD COVER UPPER KNIFE LOWER KNIFE NEEDLE GUARD TRAVELING NEEDLE GUARD
Needle width
Needle widt * Overedging width P/N P/N P/N P/N P/N P/N P/N P/N
4.8 13175005 12247102 12240107 12229100 11845807 12220307 12240701 12240602



Guage GUIDE SUPPORT GAUGE UPPER LOOPER ARM UPPER LOOPER GUIDE
Needle width
Needle widt * Overedging width P/N P/N P/N
4.8 13131909 13289004 40026017

MO-6914C-BD4-307

Guage THROAT PLATE MAIN FEED DOG AUXILIARY FEED DOG DIFFERENTIAL FEED DOG PRESSER FOOT ASM. PRESSER FOOT HINGE PRESSER FOOT STITCH TONGUE
Needle width
Needle widt * Overedging width P/N P/N P/N P/N P/N P/N P/N P/N
2*3.2 R4205K6DD00 12235107 12238101 12236600 12230256 11872009 12232104 11874203



Guage NEEDLE CLAMP UPPER LOOPER LOWER LOOPER CHIP GUARD COVER UPPER KNIFE LOWER KNIFE NEEDLE GUARD TRAVELING NEEDLE GUARD
Needle width
Needle widt * Overedging width P/N P/N P/N P/N P/N P/N P/N P/N
2*3.2 13175203 12247102 12240107 12229100 11845807 12220307 12240701 12240602



Guage GUIDE SUPPORT GAUGE UPPER LOOPER ARM UPPER LOOPER GUIDE
Needle width
Needle widt * Overedging width P/N P/N P/N
2*3.2 13131909 13289004 40026017

MO-6914C-BD6-307

Guage THROAT PLATE MAIN FEED DOG AUXILIARY FEED DOG DIFFERENTIAL FEED DOG PRESSER FOOT ASM. PRESSER FOOT HINGE PRESSER FOOT STITCH TONGUE
Needle width
Needle widt * Overedging width P/N P/N P/N P/N P/N P/N P/N P/N
2*3.2 R4305K6DE00 12235206 12238101 12236709 12230256 11872009 12232104 11874203



Guage NEEDLE CLAMP UPPER LOOPER LOWER LOOPER CHIP GUARD COVER UPPER KNIFE LOWER KNIFE NEEDLE GUARD TRAVELING NEEDLE GUARD
Needle width
Needle widt * Overedging width P/N P/N P/N P/N P/N P/N P/N P/N
2*3.2 13175203 12247102 12240107 12229100 11845807 12220307 12240701 12240602



Guage GUIDE SUPPORT GAUGE UPPER LOOPER ARM UPPER LOOPER GUIDE
Needle width
Needle widt * Overedging width P/N P/N P/N
2*3.2 13131909 13289004 40026017

MO-6914C-BE6-307

Guage THROAT PLATE MAIN FEED DOG AUXILIARY FEED DOG DIFFERENTIAL FEED DOG PRESSER FOOT ASM. PRESSER FOOT HINGE PRESSER FOOT STITCH TONGUE
Needle width
Needle widt * Overedging width P/N P/N P/N P/N P/N P/N P/N P/N
2*4 R4305K6EE00 12235206 12238101 12236709 12230256 11872009 12232104 11874203



Guage NEEDLE CLAMP UPPER LOOPER LOWER LOOPER CHIP GUARD COVER UPPER KNIFE LOWER KNIFE NEEDLE GUARD TRAVELING NEEDLE GUARD
Needle width
Needle widt * Overedging width P/N P/N P/N P/N P/N P/N P/N P/N
2*4 13175203 12247102 12240107 12229100 11845807 12220307 12240701 12240602



Guage GUIDE SUPPORT GAUGE UPPER LOOPER ARM UPPER LOOPER GUIDE
Needle width
Needle widt * Overedging width P/N P/N P/N
2*4 13131909 13289004 40026017
