产品功能
显著提升了汽车座椅的缝制能力
提高了在3,500sti/min的高缝制速度下的送布和缝制效率,缝制性能得到充分发挥
LU-2212N-7

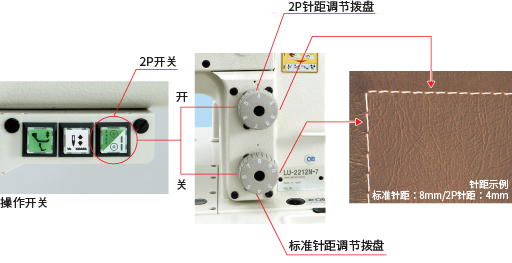

(1.6倍容量旋梭/2针距调节拨盘规格)两种不同的针距长度可根据用途进行选择。

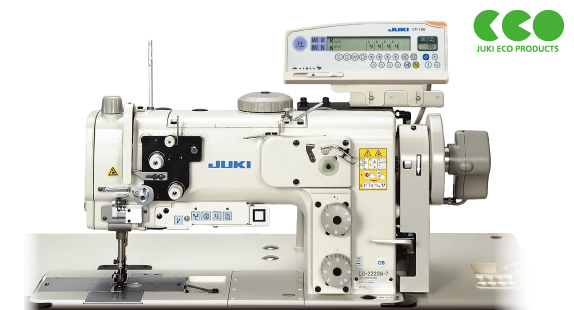

按下机臂下部的针距选择器开关,瞬间切换针距长度。LU-2220N-7

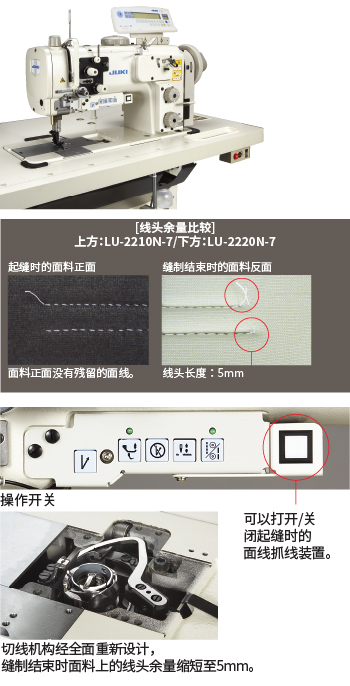

(1.6倍容量旋梭/2针距调节拨盘/短线头规格)减少了起缝和缝制结束时的剪线头工作。提高了汽车座椅缝制的生产效率和缝制质量,性能出色。操作人员使用剪刀的频率降低,能有效防止面料损坏。
基本性能
压脚提升量更高
- 标配气动式提升装置。

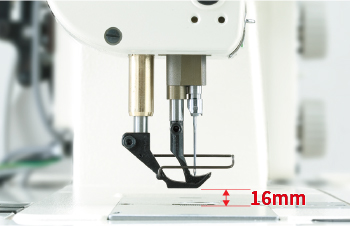

- 16mm的压脚提升量使面料处置更方便。

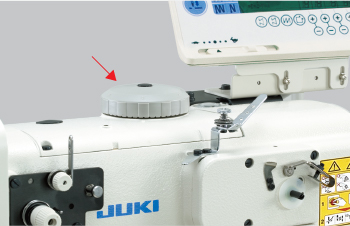

同步压脚和压脚的交替上下移动量可轻松设定和更改
- 通过机头顶面的大拨盘,可以简便地更改同步压脚和压脚的上下行程(交替上下移动量)。
- 此外,缝制速度会根据设定值进行自动调整。始终保持理想的缝制条件。

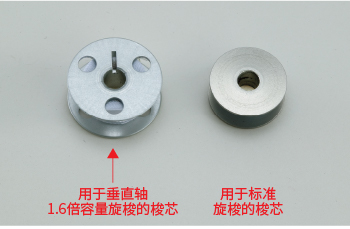

标配高效的垂直轴1.6倍容量旋梭
采用垂直轴1.6倍容量旋梭,卷底线的次数减少,提高了缝制效率。
标配交替上下移动量的瞬时切换装置
(DL装置)- 缝制难以送布的面料高低段部等时,交替上下移动量将瞬间最大化,实现精美不起褶的缝制效果。

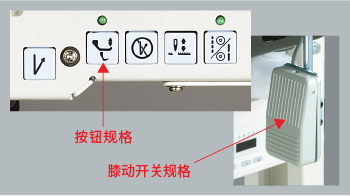

- 配置手动开关和膝动开关。
规格

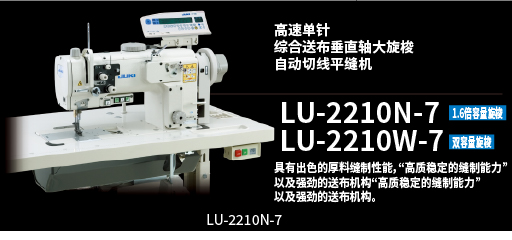

产品型号 | LU-2210N-7 LU-2210W-7 |
LU-2212N-7 | LU-2220N-7 | LU-2260N-7 LU-2260W-7 |
---|---|---|---|---|
单针 | 单针/2针距调节拨盘规格 | 单针/2针距调节拨盘/ 短线头规格 |
双针 | |
最大缝制速度 | 3,500sti/min* | |||
最大针距长度 | 9mm(正向/反向) | 6mm(正向/反向) | ||
针杆行程 | 33.8mm | |||
最高压脚提升量 | 自动:16mm,手动:9mm | |||
交替上下移动 | 1mm~6.5mm(拨盘) | |||
挑线杆 | 连杆式 | |||
旋梭 | N:垂直轴1.6倍容量旋梭 W:垂直轴双容量旋梭 |
N:垂直轴1.6倍容量旋梭 | N:垂直轴1.6倍容量旋梭 W:垂直轴双容量旋梭 |
|
机针 | 134×35R (Nm140) Nm110~Nm160 | |||
线 | #30~#4, B46~B138, Nm60/3~20/3 | #20~#5, B64~B138, Nm40/3~20/3 | ||
从机针到机臂的距离 | 263.5mm | |||
供油方式 | 自动 | |||
卷底线装置 | 安装在机头上 | |||
安全装置 | 标准配置 | |||
自动倒缝功能 | 标准配置 | |||
自动提升装置 | 标准配置(气动式自动提升装置) | |||
气压 | 0.5MPa | |||
耗气量 | 0.763dm³/min (ANR) | 1.078dm³/min (ANR) | 1.337dm³/min (ANR) | 0.736dm³/min (ANR) |
机头重量 | 55kg | 58kg | ||
电源要求 | 单相100~120V,200~240V 三相200~240V |
|||
耗电量 | 425VA |
*“sti/min”代表“针/分钟”

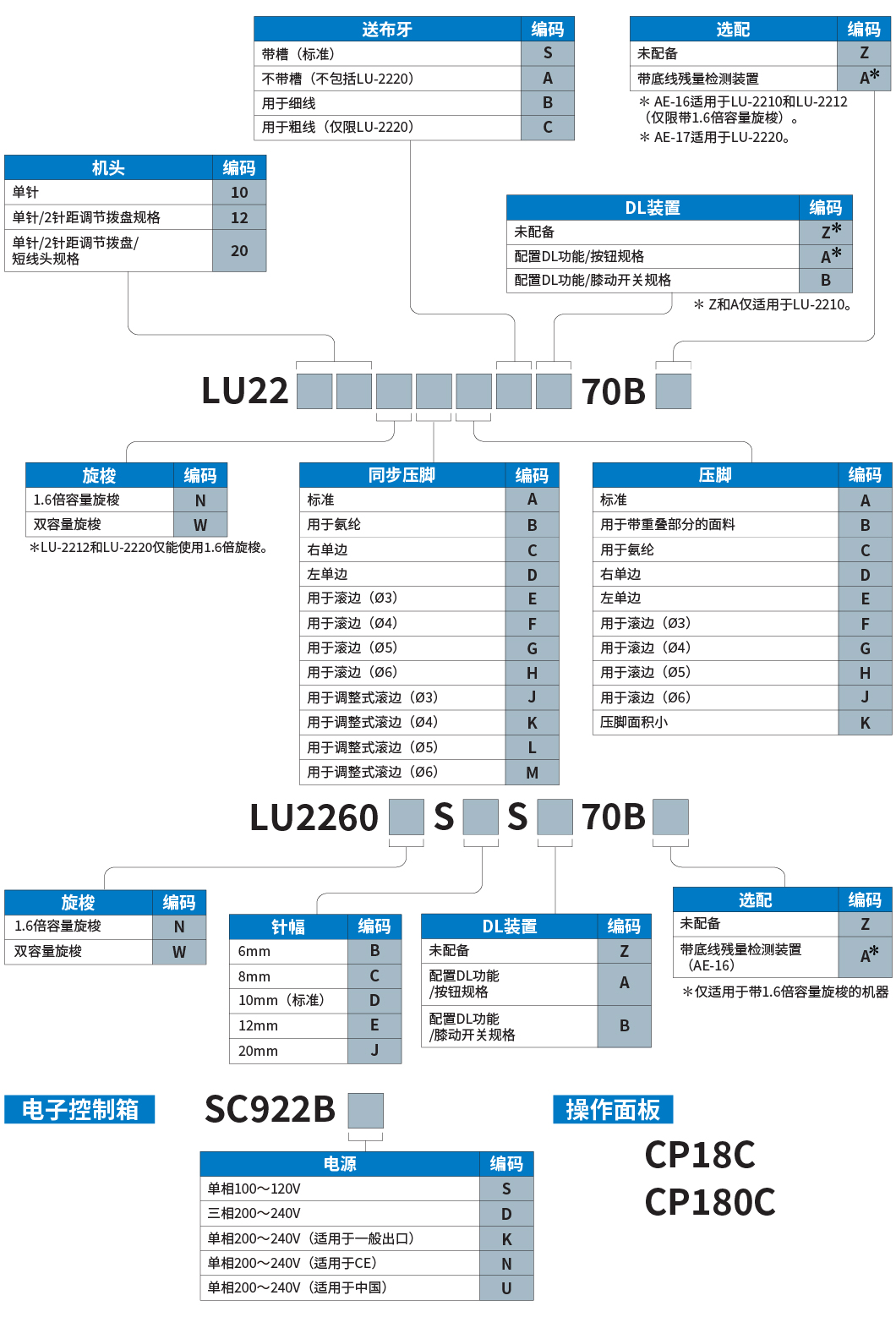

当您下订单时
针位
LU-2260N-7
LU-2260W-7
Guage | GUAGE SET | NEEDLE CLAMP ASM. | NEEDLE ROD THREAD RACK | FEED DOG | PRESSER FOOT ASM. | FINGER GUARD |
---|---|---|---|---|---|---|
Figure | - | |||||
Needle width | P/N | P/N | P/N | P/N | P/N | P/N |
(4) | 10784551 | - | 10779007 | 10780005 | 10781557 | 10786903 |
6 | 10784650 | 10777654 | 10780104 | 10781656 | ||
8 | 10784759 | 10777753 | 10780203 | 10781755 | ||
10 | 10784858 | 10777852 | 10779106 | 10780302 | 10781854 | 10787000 |
12 | 10784957 | 10777951 | 10780401 | 10781953 | ||
(14) | 10785053 | 10778058 | 10780500 | 10782050 | 10787109 | |
(16) | 10785152 | 10778157 | 10780609 | 10782159 | ||
(18) | 10785251 | 10778256 | 10780708 | 10782258 | ||
20 | 10785350 | 10778355 | B1403526000 | 10780807 | 10782357 | 10787208 |
(22) | 10785459 | 10778454 | 10780906 | 10782456 | ||
(24) | 10785558 | 10778553 | 10781003 | 10782555 | ||
(30) | 10785657 | 10778652 | 10781102 | 10782654 | 10787307 | |
(36) | 10785756 | 10778751 | 10781201 | 10782753 | 10787406 | |
Remarks | Sets having () with needle width are specially made to order. Slide plate_left and slide plate_right are not included int the set. |
Guage | WOLKING FOOT ASM. | THROAT PLATE | SLIDE PLATE_LEFT | SLIDE PLATE_RIGHT |
---|---|---|---|---|
Figure | ||||
Needle guage size | P/N | P/N | P/N | P/N |
(4) | 10783058 | 10784502 | 10786309 | 10701803 |
6 | 10783157 | 10784601 | ||
8 | 10783256 | 10784700 | ||
10 | 10783355 | 10784809 | 10786408 | 10786002 |
12 | 10783454 | 10784908 | ||
(14) | 10783553 | 10785004 | ||
(16) | 10783652 | 10785103 | ||
(18) | 10783751 | 10785202 | ||
20 | 10783850 | 10785301 | 10786507 | 10786101 |
(22) | 10783959 | 10785400 | ||
(24) | 10784056 | 10785509 | ||
(30) | 10784155 | 10785608 | ||
(36) | 10784254 | 10785707 | 10786606 | 10786200 |
Remarks | Slide plate_left and slide plate_right are not included int the set. |
LU-2210N-7
LU-2210W-7
LU-2212N-7
LU-2220N-7
Guage | PRESSER FOOT ASM. | WALKING FOOT ASM. | *1 WALKING FOOT ASM_WITHOUT GROOVE | ||||
---|---|---|---|---|---|---|---|
P/N | Figure | P/N | Figure | P/N | Figure | ||
Standard | 10712552 | 10711653 | 10712354 | ||||
*2 For overlapped sections of material. | 10758456 | ||||||
*3 For overlapped sections of material. | 10712651 | ||||||
*4 For light weight sponge. | 10712750 | - | - | ||||
*5 For heavy weight sponge. | 10711752 | - | - | ||||
Right edge presser | - | - | 10711851 | - | - | ||
Left edge presser | - | - | 10711950 | - | - | ||
For piping | 3mm | - | - | 10745354 | - | - | |
4mm | - | - | 10745453 | - | - | ||
5mm | - | - | 10745552 | - | - | ||
6mm | - | - | 10745651 | - | - | ||
For piping, adjustment type | 3mm | - | - | 10746352 | - | - | |
4mm | - | - | 10746451 | - | - | ||
5mm | - | - | 10746550 | - | - | ||
6mm | - | - | 10746659 | - | - | ||
Wide type | - | - | 10712057 | - | - |
*1 To be used when the thread cannot be grasped at the sewing start.
*2 Common type for overlapped sections and flat sections, intermediate type between 10712552 and 10712651.
*3 To be used when overlapped sections cannnot be smoothly fed.
*4 To be used for resilient materials such as sponge.
*5 To be used for further resilient materials.
Guage | PRESSER FOOT ASM. | WALKING FOOT ASM. | |||
---|---|---|---|---|---|
P/N | Figure | P/N | Figure | ||
- | - | - | 10711653 | ||
For urethane | - | - | 10711752 | ||
*2 Right edge presser | 10712859 | 10711851 | |||
*3 Left edge presser | 10712958 | 10711950 | |||
*4 For piping | 3mm | 10747350 | 10745354 | ||
4mm | 10747459 | 10745453 | |||
5mm | 10747558 | 10745552 | |||
6mm | 10747657 | 10745651 | |||
*5 For piping, adjustment type | 3mm | - | - | 10746352 | |
4mm | - | - | 10746451 | ||
5mm | - | - | 10746550 | ||
6mm | - | - | 10746659 | ||
*1 Without groove | - | - | 10712354 | ||
*6 Wide type | 10713055 | 10712057 |
*1 To be used when the thread cannot be grasped at the sewing start.
*2 To be used to sew edges of material.
*3 To be used to sew edges of material.
*4 To be used for general piping processes.
*5 Permits adjustment of needle position with respect to the pipe.
*6 To be used when a sewing product cannot be smoothly fed.
Guage | FEED DOG | THROAT PLATE | |
---|---|---|---|
Figure | |||
- | Model | P/N | P/N |
Standard | LU-2210N-7 LU-2210W-7 LU-2212N-7 |
10717106 | 10701704 |
Without groove | 10717205 | - | |
For fine thread | 10717304 | - | |
Wide type | 10739001 | 10702009 | |
Standard | LU-2220N-7 | 40083237 | 40058071 |
OP | 40058070 | - | |
40062827 | |||
40064353 | |||
40081022 |
Guage | FEED FOOT ASM. | PRESSER FOOT ASM. | |
---|---|---|---|
Figure | |||
For machining | P/N | 10712255 | 10748358 |
Guage | SWING WDGE GUIDE | NEEDLE BAR THREAD GUIDE | ||
---|---|---|---|---|
Figure | ||||
Model | P/N | P/N | ||
LU-2220N-7 | MAH152010A0 | 10735868 |
