产品功能
机臂与机针之间空间大

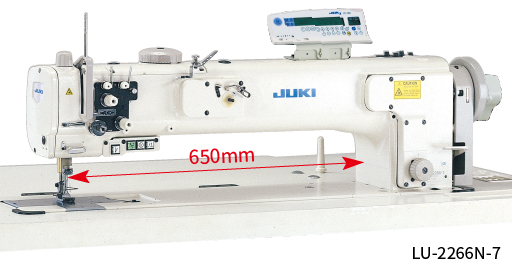

机臂到机针中心的距离长达650mm，最适合嵌条缝的加固缝工序，以及大型面料明线缝等的中间缝制工序。
更高生产率
LU-2216N-7（单针)和LU-2266N-7（双针）的最高缝制速度均为3,000rpm。确保了缝制长面料时的高生产率。
采用全自动供油方式
采用全自动供油，省却了手动加油的繁琐作业。
机油通过柱塞泵强制循环流经机器面板。从而防止面板漏油。压脚提升量达16mm

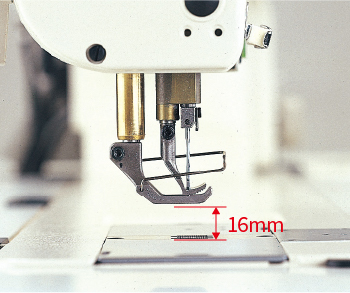

压脚可提升至16mm。足够的提升量确保机器的厚料设置简便，操作舒适。
可轻松设定和变更同步压脚和压脚的上下行程

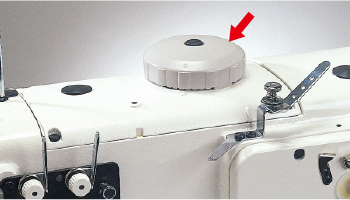

通过机头顶部的大拨盘，可以简便地更改同步压脚和压脚的上下行程（交替上下移动量）。缝制速度可根据上下行程设定进行自动调节。始终保持理想的缝纫条件。
对于标准机器，操作人员可调节同步压脚和压脚的上下行程（DL装置）

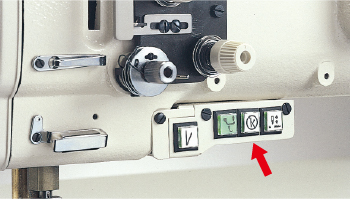

厚料或难以送布的高低段部等的缝制工序中，按下DL开关可瞬间切换同步压脚和压脚的上下行程。
实现精美不起褶的缝制质量。
切线精准

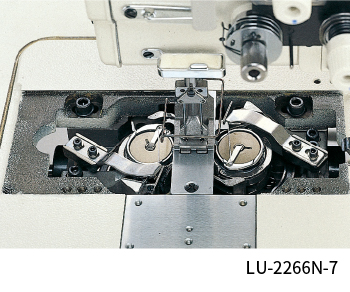

通过运动切刀轴的固定移动和切刀的最佳移动量，切线装置可以精准剪切粗线。此外，即使换了线号，也无需调整。
基本性能
LU-2210N/-2260N系列使用的针位
LU-2210N/-2260N系列使用的针位（旋梭、梭芯、同步压脚、压脚和送布）也可用于此机型。LU-2210N/-2260N中的所有零件也可用于LU-2216N/-2266N。此外，切刀和面线夹线器的组件相同。
高速缝制下保持稳定的送布效率
具有强大的送布能力和最佳的传送轨迹，即使以更高的缝制速度运行，也能顺畅地送布而不会产生起褶现象。
规格
| 产品型号 | LU-2216N-7 | LU-2266N-7 | ||||
|---|---|---|---|---|---|---|
| (单针) | (双针) | |||||
| 最大缝制速度 | 3,000sti/min* | |||||
| 最大针距长度 | 9mm（正常/倒缝） | 6mm（正常/倒缝） | ||||
| 针杆行程 | 36mm | |||||
| 针幅 | - | 10mm（标准） | ||||
| 压脚提升量 | 手动：9mm，自动：16mm | |||||
| 自动提升装置 | 标准配置（气动式自动提升装置：AK142） | |||||
| 挑线杆 | 连杆式 | |||||
| 交替上下移动 | 1mm~6.5mm | |||||
| DL装置 | 标准配置 | |||||
| 旋梭 | 垂直轴1.6倍容量旋梭 | |||||
| 机针（出厂时） | 134×35 (Nm140) Nm100~Nm180 | 134×35 (Nm140) Nm100~Nm160 | ||||
| 线 | #30~#4，B46~B138，Nm=60/3~20/3 | #20~#5，B69~B138，Nm=40/3~20/3 | ||||
| 安全装置 | 标准配置 | |||||
| 供油方式 | 自动 | |||||
| 供油 | JUKI新型1号Defrix Oil（等同于ISO VG7） | |||||
| 从机针到机臂的距离 | 650mm | |||||
| 机台尺寸 | 917mm×178mm | |||||
| 机头重量 | 90kg | 95kg | ||||
| 自动倒缝功能 | 标准配置 | |||||
| 气压和耗气量 | 0.5MPa (5kgf/cm²)，0.3Nl/min. | |||||
| 电源要求 | 单相110~120V，220~240V，三相200~220V，220~240V | |||||
*“sti/min”代表“针/分钟”
当您下订单时
针位
LU-2216N-7
| Guage: Standard | THROAT PLATE | THROAT PLATE | FEED FOOT ASM. | PRESSER FOOT ASM. | FEED DOG |
|---|---|---|---|---|---|
| Figure |  |
 |
 |
 |
 |
| P/N | 10701704 | 10702009 | 10711653 | 10712552 | 10717106 |
| Remarks | - | Wid type | - | - | - |
| Guage: Standard | SLIDE PLATE ASM. | SLIDE PLATE_LEFT | SLIDE PLATE_RIGHT | SLIDE PLATE_RIGHT |
|---|---|---|---|---|
| Figure |  |
 |
 |
 |
| P/N | 10701654 | 10701902 | 10701803 | 10753150 |
| Remarks | - | Thread trimmer | Thread trimmer | needle thread breakage, with a window |
| Guage | PRESSER FOOT ASM. | WALKING FOOT ASM. | *1 WALKING FOOT ASM._WITHOUT GROOVE | ||||
|---|---|---|---|---|---|---|---|
| P/N | Figure | P/N | Figure | P/N | Figure | ||
| Standard | 10712552 | |
10711653 | |
10712354 |  |
|
| *2 For overlapped sections of material. | 10758456 |  |
|||||
| *3 For overlapped sections of material. | 10712651 |  |
|||||
| *4 For light weight sponge. | 10712750 |  |
- | - | |||
| *5 For heavy weight sponge. | 10711752 |  |
- | - | |||
| Right edge presser | - | - | 10711851 |  |
- | - | |
| Left edge presser | - | - | 10711950 |  |
- | - | |
| For piping | 3mm | - | - | 10745354 |  |
- | - |
| 4mm | - | - | 10745453 | - | - | ||
| 5mm | - | - | 10745552 | - | - | ||
| 6mm | - | - | 10745651 | - | - | ||
| For piping, adjustment type | 3mm | - | - | 10746352 |  |
- | - |
| 4mm | - | - | 10746451 | - | - | ||
| 5mm | - | - | 10746550 | - | - | ||
| 6mm | - | - | 10746659 | - | - | ||
| Wide type | - | - | 10712057 |  |
- | - | |
*1 To be used when the thread cannot be grasped at the sewing start.
*2 Common type for overlapped sections and flat sections, intermediate type between 10712552 and 10712651.
*3 To be used when overlapped sections cannnot be smoothly fed.
*4 To be used for resilient materials such as sponge.
*5 To be used for further resilient materials.
| Guage | PRESSER FOOT ASM. | WALKING FOOT ASM. | |||
|---|---|---|---|---|---|
| P/N | Figure | P/N | Figure | ||
| - | - | - | 10711653 | |
|
| For urethane | - | - | 10711752 | |
|
| *2 Right edge presser | 10712859 |  |
10711851 | |
|
| *3 Left edge presser | 10712958 |  |
10711950 | |
|
| *4 For piping | 3mm | 10747350 |  |
10745354 | |
| 4mm | 10747459 | 10745453 | |||
| 5mm | 10747558 | 10745552 | |||
| 6mm | 10747657 | 10745651 | |||
| *5 For piping, adjustment type | 3mm | - | - | 10746352 | |
| 4mm | - | - | 10746451 | ||
| 5mm | - | - | 10746550 | ||
| 6mm | - | - | 10746659 | ||
| *1 Without groove | - | - | 10712354 | |
|
| *6 Wide type | 10713055 |  |
10712057 | |
|
*1 To be used when the thread cannot be grasped at the sewing start.
*2 To be used to sew edges of material.
*3 To be used to sew edges of material.
*4 To be used for general piping processes.
*5 Permits adjustment of needle position with respect to the pipe.
*6 To be used when a sewing product cannot be smoothly fed.
| Guage | FEED DOG | THROAT PLATE | |
|---|---|---|---|
| Figure | |
|
|
| - | P/N | P/N | |
| Standard | 10717106 | 10701704 | |
| Without groove | 10717205 | - | |
| For fine thread | 10717304 | - | |
| Wide type | 10739001 | 10702009 | |
| Guage: For machining | FEED DOG | PRESSER FOOT | |
|---|---|---|---|
| Figure |  |
 |
|
| P/N | 10712255 | 10748358 | |
| Guage | SWING WDGE GUIDE | |
|---|---|---|
| Figure |  |
|
| P/N | MAH152010A0 | |
LU-2266N-7
| Guage: Standard | THROAT PLATE | WALKING FOOT ASM. | PRESSER FOOT ASM. | FEED DOG | NEEDLE BAR THREAD GUIDE |
|---|---|---|---|---|---|
| Figure |  |
 |
 |
 |
 |
| P/N | 10784809 | 10783355 | 10781854 | 10780302 | 10779007 |
| Remarks | 10mm | 10mm | 10mm | 10mm | 4-8mm |
| Guage: Standard | SLIDE PLATE ASM. | SLIDE PLATE_LEFT | SLIDE PLATE_RIGHT | NEEDLE CLAMP ASM. | NEEDLE CLAMP |
|---|---|---|---|---|---|
| Figure | |
 |
 |
 |
 |
| P/N | 10701654 | 10786408 | 10786002 | 10777852 | 10777803 |
| Remarks | - | 10-18mm | 10-18mm | 10mm | 10mm |
| Guage | GUAGE SET | NEEDLE CLAMP ASM. | NEEDLE BAR THREAD GUIDE | FEED DOG | PRESSER FOOT ASM. | FINGER GUARD |
|---|---|---|---|---|---|---|
| Figure | - |  |
 |
 |
 |
 |
| Throat width | P/N | P/N | P/N | P/N | P/N | P/N |
| (4) | 10784551 | 10777555 | 10779007 | 10780005 | 10781557 | 10786903 |
| 6 | 10784650 | 10777654 | 10780104 | 10781656 | ||
| 8 | 10784759 | 10777753 | 10780203 | 10781755 | ||
| 10 | 10784858 | 10777852 | 10779106 | 10780302 | 10781854 | 10787000 |
| 12 | 10784957 | 10777951 | 10780401 | 10781953 | ||
| (14) | 10785053 | 10778058 | 10780500 | 10782050 | 10787109 | |
| (16) | 10785152 | 10778157 | 10780609 | 10782159 | ||
| (18) | 10785251 | 10778256 | 10780708 | 10782258 | ||
| 20 | 10785350 | 10778355 | B1403526000 | 10780807 | 10782357 | 10787208 |
| (22) | 10785459 | 10778454 | 10780906 | 10782456 | ||
| (24) | 10785558 | 10778553 | 10781003 | 10782555 | ||
| (30) | 10785657 | 10778652 | 10781102 | 10782654 | 10787307 | |
| (36) | 10785756 | 10778751 | 10781201 | 10782753 | 10787406 | |
| Remarks | Sets having () with needle width are specially made to order. Slide plate_left and slide plate_right are not included int the set. | |||||
| Guage | WALKING FOOT ASM. | THROAT PLATE | SLIDE PLATE_LEFT | SLIDE PLATE_RIGHT |
|---|---|---|---|---|
| Figure |  |
 |
 |
|
| Throat width | P/N | P/N | P/N | P/N |
| (4) | 10783058 | 10784502 | 10786309 | 10701803 |
| 6 | 10783157 | 10784601 | ||
| 8 | 10783256 | 10784700 | ||
| 10 | 10783355 | 10784809 | 10786408 | 10786002 |
| 12 | 10783454 | 10784908 | ||
| (14) | 10783553 | 10785004 | ||
| (16) | 10783652 | 10785103 | ||
| (18) | 10783751 | 10785202 | ||
| 20 | 10783850 | 10785301 | 10786507 | 10786101 |
| (22) | 10783959 | 10785400 | ||
| (24) | 10784056 | 10785509 | ||
| (30) | 10784155 | 10785608 | ||
| (36) | 10784254 | 10785707 | 10786606 | 10786200 |
| Remarks | Slide plate_left and slide plate_right are not included int the set. | |||
