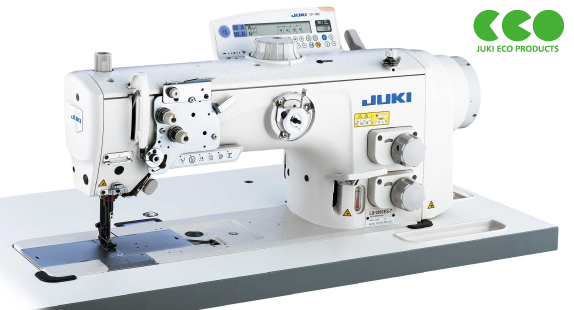

产品功能
提升最高缝制速度
最高缝制速度提升到3,800sti/min*(LU-2810ESAL-7,2.0倍容量旋梭)和3,500sti/min*(LU-2818ESAL-7和LU-2828ESA-7,2.7倍容量旋梭)。
提高缝制长面料的生产效率。
* 最大缝制速度因缝制条件而异。长针距规格
(LU-2810ESAL-7 <2.0倍容量旋梭>

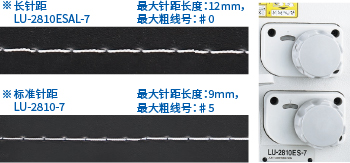

LU-2818ESAL-7 <2.7倍容量旋梭>)长针距缝制适合家具等的装饰缝。针距调节拨盘上的最大针距长度为12mm。
面线收入和短线头规格
(LU-2828ESA-7 <2.7倍容量旋梭>)LU-2828ESA-7短线头规格是一款高性能缝纫机。起缝时的面线抓线装置,以及缝制结束时短线头功能的切线装置,使面料上残留的线头更短。因此无需在起缝和缝制结束时进行手工剪线头,从而减轻了操作人员的作业负担。采用2.7倍旋梭,因此减少了底线更换次数,提高了工作效率。
短线头切线机构(面线收入和短线头规格)

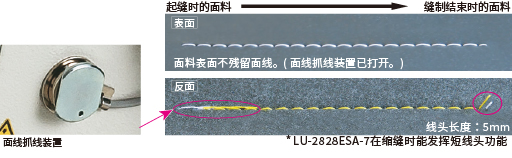

采用全新切线机构。在最后一针(缩缝)处通过线旁的固定切刀切线,线头长度为业界最短。(线头长度为5mm)
规格
产品型号 | LU-2810ESAL-7 | LU-2818ESAL-7 | LU-2828ESA-7 | |||
---|---|---|---|---|---|---|
类型 | 高速单针自动切线装置 (2.0倍容量旋梭/长针距规格) |
高速单针自动切线装置 (2.7倍容量旋梭/长针距规格) |
高速单针自动切线装置 (2.7倍容量旋梭/短线头规格) |
|||
最大缝制速度 | 3,800sti/min* | 3,500sti/min* | ||||
最大针距长度 | 12mm | 9mm | ||||
针距长度拨盘 | 2针距调节拨盘 | |||||
压脚 | 自动:20mm,手动:10mm | |||||
自动提升装置 | 标准配置 | |||||
交替上下移动 | 1~9mm | |||||
交替上下移动调节方式 | 大拨盘 | |||||
DL装置 | 标准配置 | |||||
面线夹线器 | 单/双重夹线器 | |||||
下送布微调机构 | 标准配置 | |||||

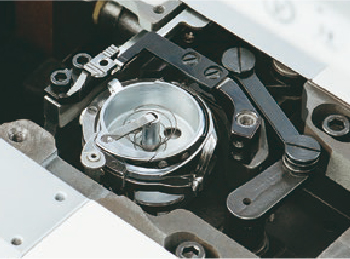

旋梭 | 垂直轴2.0倍容量旋梭 | 垂直轴2.7倍容量旋梭 | ||||
机针 | 135×17 Nm160 (Nm125~Nm200) |
|||||
线 | #30~#0,Nm=60/3~9/3 | |||||
供油方式 | 半干式机头(油箱系统) | |||||
单触式倒缝开关 | 标准配置 | |||||
手动开关 | 多功能6连开关 | |||||
安全装置 | 标准配置(按下按钮可重置) | |||||
机头重量 | 66kg | |||||
电子控制箱 | SC-923 |
* “sti/min”代表“针/分钟”。

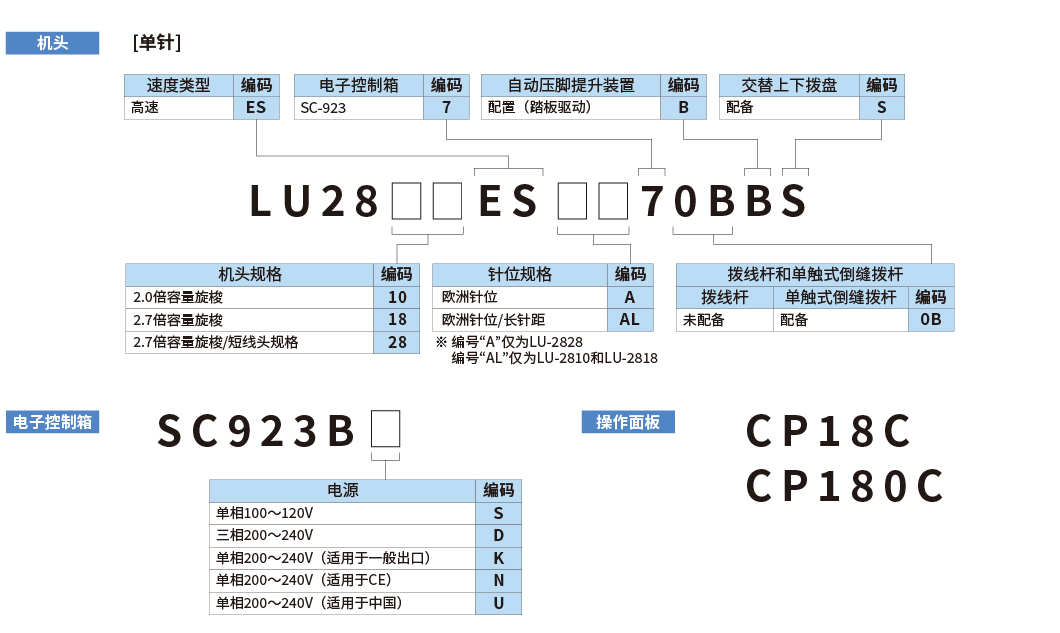

当您下订单时
针位
LU-2810ESAL-7
LU-2818ESAL-7
Guage | THROAT PLATE | FEED DOG | WARKING FOOT ASM. | PRESSER FOOT ASM. | SLIDE PLATE_FRONT | SLIDE PLATE_LEFT | SLIDE PLATE_RIGHT | PRESSER BAR | ||
---|---|---|---|---|---|---|---|---|---|---|
Figure | - | |||||||||
Standard guage | 40112212 | 40133270 | 40143061 | 21350152 | - | 40112224 | 40142215 40112225 40147944 |
40125877 SM8040412TP SS6090910TP |
||
40126349 | ||||||||||
Figure | ||||||||||
Europe guage | 40112211 | 40133272 | 10711653 | 10712552 | 40147918 | |||||
40126350 |
Guage | GUAGE SET | THROAT PLATE | SENDING DIAL STOPPER PIN | |||
---|---|---|---|---|---|---|
Figure | - | |||||
12mm→9mm exchange | 40156013 | 40126350 | PH0400062C0 | |||
Remarks | 12mm to 9mm exchange guage set becomes the composition of the [9mm throat plate]+[sending dial stopper pin] A slide plate is not contained in the contents of composition of a guage set. |
Guage | FEED DOG | ||||||
---|---|---|---|---|---|---|---|
Figure | - | ||||||
Model | LU-2810ESAL-7 | Remarks | LU-2810ESAL-7 | LU-2818ESAL-7 | Remarks | ||
OP | 40133271 | S | 40133273 | 40133272 | E | ||
10717205 | Witout groove | ||||||
10717304 | For fine yarn |
Guage | SLIDE PLATE WITH A WINDOW | |||
---|---|---|---|---|
Figure | ||||
Model | LU-2810ESAL-7 | LU-2810ESAL-7 | ||
OP | 40133312 | 40155087 |
Guage | INNER PRESSER | PRESSER FOOT ASM. | INNER PRESSER | PRESSER FOOT ASM. | INNER PRESSER | PRESSER FOOT ASM. | ||
---|---|---|---|---|---|---|---|---|
Figure | ||||||||
- | inch | mm | P/N | P/N | P/N | P/N | P/N | P/N |
OP: For Piping | 3/16 | 4.8 | B1478245000 | B15302450AD | B147924500D | B15312450AD | B147424500D | B15272450AD |
1/4 | 6.4 | B15302450AF | B147924500F | B15312450AF | B147424500F | B15272450AF | ||
5/16 | 7.9 | B15302450AH | B147924500H | B15312450AH | B147424500H | B15272450AH | ||
3/8 | 9.5 | B15302450AK | - | - | B147424500K | B15272450AK | ||
Remarks | - | Back cut | With teeth |
Guage | INNER PRESSER | PRESSER FOOT ASM. | ||
---|---|---|---|---|
Figure | ||||
- | P/N | P/N | ||
OP:Right edge presser | B147624500A | B15292450AA | ||
Remarks | With teeth |
Guage | INNER PRESSER | PRESSER FOOT ASM. | INNER PRESSER | PRESSER FOOT ASM. | ||
---|---|---|---|---|---|---|
Figure | ||||||
- | P/N | P/N | P/N | P/N | ||
OP:Left edge presser | 10338309 | B1525563SA0 | B14702450A0 | B15242450A0 | ||
Remarks | With teeth | Slit | - |
Guage | INNER PRESSER | INNER PRESSER | PRESSER FOOT ASM. | ||
---|---|---|---|---|---|
Figure | |||||
- | P/N | P/N | P/N | ||
OP:For binding | MAQ09307000 | MAN10452000 | MAQ093080A0 |
Guage | INNER PRESSER | INNER PRESSER | PRESSER FOOT ASM. | ||
---|---|---|---|---|---|
Figure | |||||
Size (mm) | P/N | P/N | P/N | ||
OP: For piping | 3 | 10745354 | 10746352 | 10747350 | |
4 | 10745453 | 10746451 | 10747459 | ||
5 | 10745552 | 10746550 | 10747558 | ||
6 | 10745651 | 10746659 | 10747657 | ||
Remarks | - | Adujustment type | - |
Guage | FEED FOOT ASM. | PRESSER FOOT ASM. | ||||
---|---|---|---|---|---|---|
Figure | ||||||
- | P/N | P/N | P/N | P/N | ||
OP: For urethane | 10711653 | 10712354 | 10711752 | 10712750 | ||
Remarks | For light-weight urethane | For light-weight urethane | For heavy-weight urethane | - |
Guage | FEED FOOT ASM. | PRESSER FOOR ASM. | ||
---|---|---|---|---|
Figure | ||||
- | P/N | P/N | ||
OP:For thick thread | 40169655 | 10712552 |
Guage | FEED FOOT ASM. | PRESSER FOOR ASM. | ||
---|---|---|---|---|
Figure | ||||
- | P/N | P/N | ||
OP:Right edge presser | 10711851 | 10712859 |
Guage | FEED FOOT ASM. | PRESSER FOOR ASM. | ||
---|---|---|---|---|
Figure | ||||
- | P/N | P/N | ||
OP:Left edge presser | 10711950 | 10712958 |
Guage | FEED FOOT ASM. | PRESSER FOOR ASM. | ||
---|---|---|---|---|
Figure | ||||
- | P/N | P/N | ||
OP: Wide type | 10712057 | 10713055 |
Guage | FEED FOOT ASM. | PRESSER FOOR ASM. | |||
---|---|---|---|---|---|
Figure | |||||
- | P/N | P/N | P/N | ||
OP:Control area smallness | 10711653 | 10712354 | 10758456 |
Guage | FEED FOOT ASM. | PRESSER FOOR ASM. | |||
---|---|---|---|---|---|
Figure | |||||
- | P/N | P/N | P/N | ||
OP: For overlapped sections of material | 10711653 | 10712354 | 10712651 |
