直驱单针下送布上下切边自动切线平缝机

搭载直驱节能伺服马达。
配备操作性高的切刀机构，可在提高效率的同时促进质量升级。

产品功能

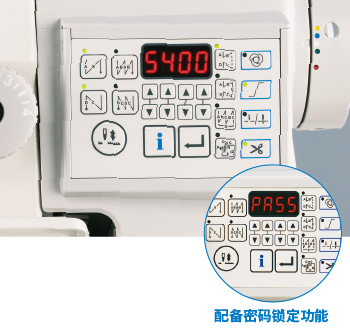

  • 控制面板功能强大

    电子控制箱内置了属于高性能CP-180系列的控制面板。通过该面板，可以调节从缝制速度到生产支持功能的各种缝制数据。
    此外，控制面板还新增了密码锁定功能，能限制面板操作。只需输入密码即可轻松启用机器。

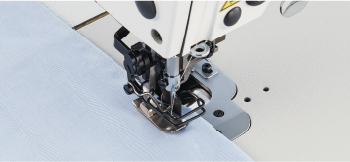

  • 即使以高速操作，缝制质量始终如一

    具有高速缝制力，可以灵活应对各种面料，从而提高生产效率。

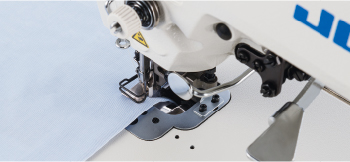

  • 切刀非常锋利，可以剪切任何类型的面料

    切刀能够剪切任何厚度或韧性的面料，包括厚料、弹性面料和涂层面料。

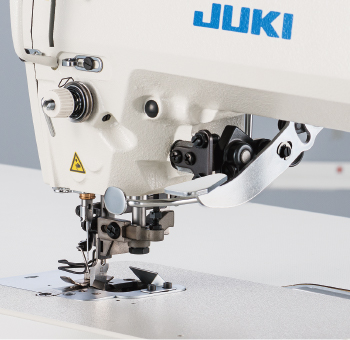

  • 单触式多功能刀杆提高了操作的舒适度

    刀杆经喷涂能防生锈，因此不必担心面料沾染锈渍。

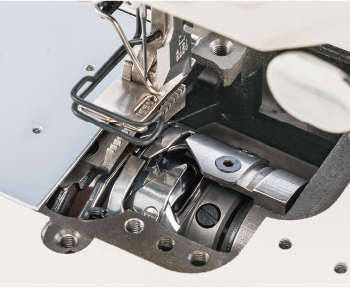

  • 可靠性高的切线机构

    切线装置可用于剪切各种不同厚度的缝线，拓宽了适用缝线的粗细范围。切线装置可以轻松剪切粗线。

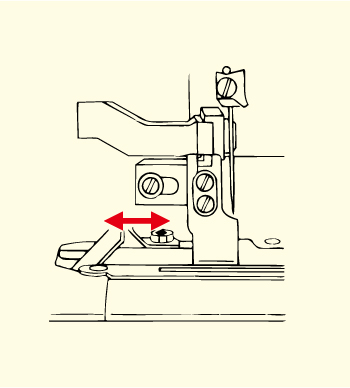

  • 调节切布刀的位置

    切布刀经专门设计，可从机针中心向操作人员移动多达5.5mm的距离。

基本性能

  • 紧凑小型节能直驱马达

    与普通V型皮带驱动缝纫机相比，直驱马达驱动的缝纫机耗电量节省了13%以上。

规格

产品型号 DLM-5400NDD-7
最大缝制速度 4,500 sti/min*
送布系统 下送布
最大针距长度 4mm（正常/倒缝）
针杆行程 30.7mm
压脚提升量 手动：5.5mm，膝动：13mm
机针 DB × 1 (#14) #9~#18
旋梭 自动供油全回转旋梭
剪切面料的最大厚度 4mm
供油方式 自动
供油 JUKI机油 7（等同于ISO VG7）
自动倒缝功能 标准配置
电源要求 单相220~240V
耗电量 320VA（主马达输出400W）
机头重量 36kg（包括马达、电子控制箱、机罩）

*sti/min是“针/分钟”的缩写。

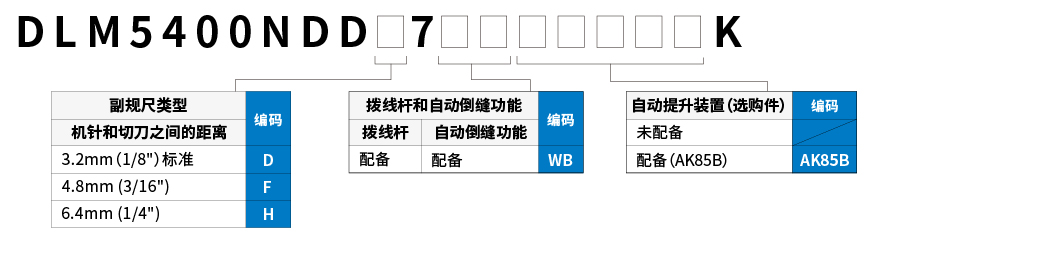

当您下订单时

针位

DLM-5400NDD-7

Guage THROAT PLATE THROAT PLATE COVER ASM. GUAGE THROAT PLATE CHIP GUARD THROAT PLATE CHIP GUARD
Figure
Sub-gauge Type Remarks P/N P/N P/N P/N P/N
Specification inch mm - Accecory - - Accecory
CA 5/64 2.0 Spare parts Cut after knife type 11346004 B11155310AD B1190522Y0A 11346905 11347002
C 3/32 2.4 Special - B1190522X00
CB 3/32 2.4 Spare parts As compaired with B1190522X00, the grooves of the feed dog are 3 rows instead of 2 rows. B1190522X0B
D 1/8 3.2 Standard - B1190522S00
E 5/32 4.0 Special - B1190522Y00
EA 5/32 4.0 Spare parts For pattern seamer -
EB 5/32 4.0 Spare parts As compaired with B1190522X00, the grooves of the feed dog are 3 rows instead of 2 rows. -
F 3/16 4.8 Special - B11155300AF B1190522T00
FA 3/16 4.8 Spare parts Cut before knife type B1190522T0A
FB 3/16 4.8 Spare parts As compaired with B2290522T00, the needle hole of which diameter is set to Φ 1.9 to 1.2mm. B1190522Y0C
FC 3/16 4.8 Special As compaired with B1190522X00, the grooves of the feed dog are 3 rows instead 2 rows. -
G 27/128 5.3 Spare parts - B1190522Y0F 11347101
H 1/4 6.4 Special - B1190522U00
HA 1/4 6.4 Spare parts For preventing material from being caught by the 4 teeth feed dog. B1190522U0AA
K 5/16 7.9 Spare parts - B1190522Y0B
M 3/8 9.5 Special - B11155300AM B1190522V00 11347309 11347408
MA 3/8 9.5 Spare parts As compaired with B1190522V00, the feed amount of the feed dog is reduced. B1190522V0A
P 7/16 11.1 Spare parts - B1190522Y0M
Guage CHIP GUARD HINGING PRESSER ASM. FEED DOG KNIFE
Figure
Sub-gauge Type Remarks P/N P/N P/N P/N
Specification inch mm - - - -
CA 5/64 2.0 Spare parts Cut after knife type 11346400 B1524530CB0 B1613522N00A B4145530C00
C 3/32 2.4 Special - B4121522000
CB 3/32 2.4 Spare parts As compaired with B1190522X00, the grooves of the feed dog are 3 rows instead of 2 rows. B1613522N0C
D 1/8 3.2 Standard - B1613522N00A
E 5/32 4.0 Special - B1524530EB0
EA 5/32 4.0 Spare parts For pattern seamer
EB 5/32 4.0 Spare parts As compaired with B1190522X00, the grooves of the feed dog are 3 rows instead of 2 rows. B1613522N0D
F 3/16 4.8 Special - B1613522N00A
FA 3/16 4.8 Spare parts Cut before knife type B4121522A00
FB 3/16 4.8 Spare parts As compaired with B2290522T00, the needle hole of which diameter is set to Φ 1.9 to 1.2mm. B4121522000
FC 3/16 4.8 Special As compaired with B1190522X00, the grooves of the feed dog are 3 rows instead 2 rows. B1613522N0D
G 27/128 5.3 Spare parts - B1524530GB0 B1613522N00A
H 1/4 6.4   - 11346509 B1613522W00A
HA 1/4 6.4 Spare parts For preventing material from being caught by the 4 teeth feed dog. B1613522A0AA
K 5/16 7.9 Spare parts - B1613522W00A
M 3/8 9.5 Special -
MA 3/8 9.5 Spare parts As compaired with B1190522V00, the feed amount of the feed dog is reduced. -
P 7/16 11.1 Spare parts - 11346608 B1613522W00A
